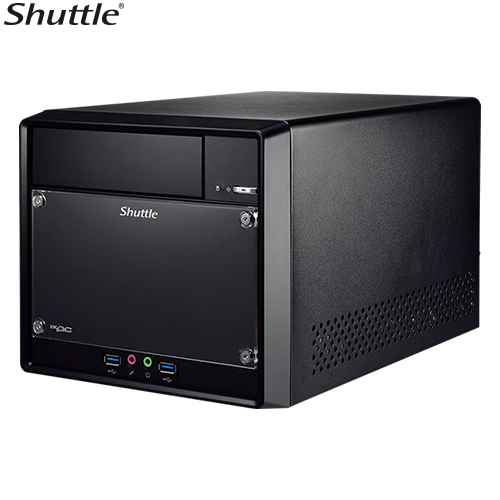

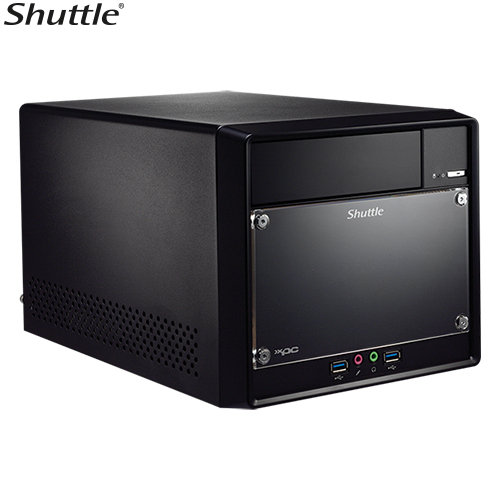

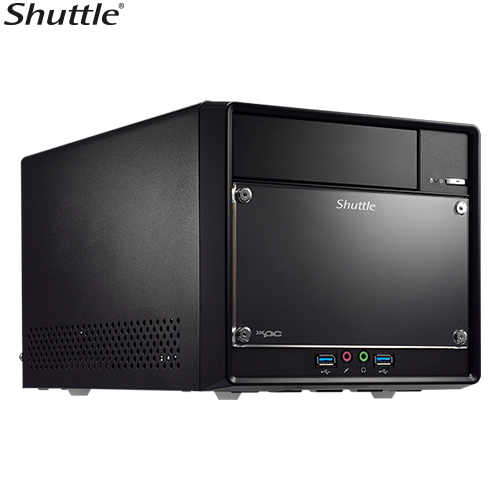

Shuttle SH610R4 XPC Cube 13L Barebone-Support Intel 12th/13th/14th Gen LGA 1700

The Mini Workstation Boasts Intel 14th Gen CPU for AI Capabilities

Based on the Intel® H610 chipset, the Shuttle SH610R4 is a 13L versatile Mini PC that supports the latest 14-gen Intel® Core™ Desktop processors, featuring Intel® Xe graphic architecture and dual-channel DDR4-3200 memory support. The SH610R4 processes multiple tasks and effortlessly drives multi-4K displays through enhanced expansion flexibilities, making it perfect for 3D visual computing, AI content creation, network security systems, gaming entertainment stations, and more.

Intel® 14th/13th/12th Gen Processor Compatibility

The Shuttle SH610R4, based on the H610 chipset, is expertly designed to support 14th Gen (Raptor Lake Refresh), 13th Gen (Raptor Lake), and 12th Gen (Alder Lake) Intel® processors with LGA1700 socket. With the upgraded CPU performance, it boasts gaming performance and various advanced connectivity options like Wi-Fi 7.

Upgrade to 14th Gen Intel CPU Now!
● Up to 24 cores: 8 Performance-cores and 16 Efficient-cores
● Supports Intel® Thread Director for optimal multitasking
● Maximized 32 threads and peak clock speed up to 6GHz

Triple-Display Productivity

Built-in one HDMI 2.0, two DisplayPort, and VGA outputs, the SH610R4 supports triple independent display, allowing the extent of the workspace across multiple monitors for a more comfortable productivity experience.
*VGA port does not support 4K or higher resolutions due to VGA specification limit.

Strong Expansion Capacity with M.2

With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, SH610R4 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 2280 key M supports SATA 3.0 and PCIe 4.0 x 4 storage interfaces.

PCI-E x16 Gen 5

SH610R4 includes a PCI-Ex 16 5.0 slot for next-generation add-on cards. PCI-E 5.0 doubles the bandwidth and frequency of PCI-E 4.0. The higher bandwidth may benefit the add-on card for higher throughput and enables more flexibility, for it is fully backward compatible and available bandwidth ready for future devices.
* GFX card dimension limit : 273 mm x 98 mm x 38 mm

Customization Front Panel

The front chassis of the SH610R4 is easily customized by simply changing the acrylic front plate. Add any design, such as a photo, graphic, or your company name or branding on it.

Integrated Cooling Engine (I.C.E)

SH610R4 comes with a built-in 80 PLUS 300W power supply and Shuttle’s I.C.E (Integrated Cooling Engine) technology makes this model energy-efficient and ready for quiet, long-term operation. I.C.E. heat-pipe module made by copper material, when the processor emits its waste heat to the copper element of the heat-pipe cooling element, which causes the tubes to heat up and the heat to be transported towards the cooling fins. The housing fan pushes air through the fins, thus cooling them down.

Operating System Support

- Windows 11 64bit
- Windows 10 64bit
- Linux

36 months

Specifications

FORM FACTOR	Shuttle Form factor
PROCESSOR	Support Intel® 12th/13th/14th generation Core™ i3/i5/i7/i9, Pentium®, Celeron®125W LGA1700 CPU
CHIPSET	Intel H610 express chipset
MEMORY	(2)DDR4 3200 MHz support, dual channel up to 64GB (32GB*2)
VIDEO OUTPUT	(1)HDMI + (2)DisplayPort +(1) VGA , support triple independent display 4K/60Hz playback (With Integrated Graphic in CPU)
AUDIO	Realtek ALC888S 5.1 Channel high definition audio
ETHERNET	Intel i219 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function
STORAGE INTERFACE	SATA 6.0Gb/s interface
ONBOARD CONNECTORS	(2)4 Pin fan connector (3)SATA gen3.0 connector (1) ATX main power (210) (1) ATX 12V power (22) (1) 1X5 USB 2.0 header (1) RS232 header (1) Front AUDIO header (2) Front USB FFC header

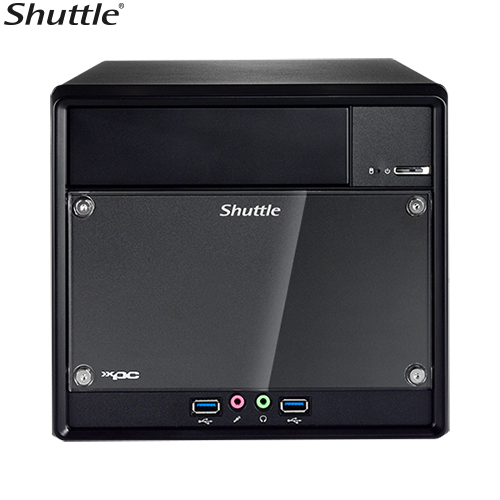

FRONT PANEL	(2) USB 3.2 Gen 1 port (1) Microphone-In (1) SPK-Out (1)Power button (1)Power LED (1)HDD LED

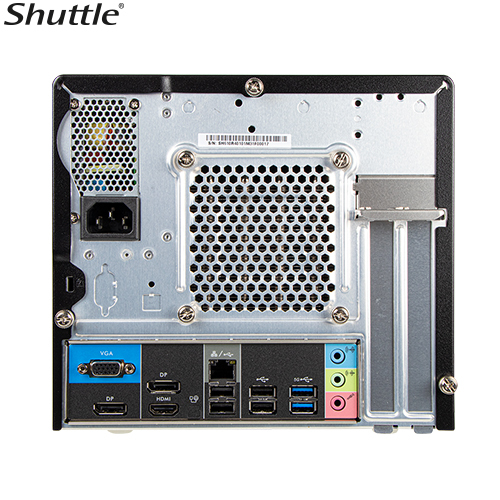

BACK PANEL	(4) USB 2.0 Port (2) USB 3.2 Gen 1 Port (1)LAN (1)HDMI port (2)Display port (1)VGA port (1)Audio Mic in (1)Audio Line in (1)Audio SPK out (1)External 4pin header (3)Antenna Hole
DRIVE BAYS	(1) 5.25" ODD bay (2) 3.5" HDD bay
DIMENSIONS	329(L) x 216(W) x 198(H) mm
POWER	80 Plus 300W power supply Input: 100-240V，6-3A AC Support 80 PLUS Bronze
ACCESSORIES	XPC Multi-Language quick guide XPC DVD Driver SATA Cable CPU Thermal Grease Power cord Screw package
EXPANSION SLOT	(1) PCI-E X16 Gen5.0 slot (1) PCI-E X1 Gen3 slot (1) M.2 2280 type M key socket (1) M.2 2230 type E key socket
OS SUPPORT	Windows 11 64bit OS Linux
NET WEIGHT	3.7 KG
CERTIFICATION	Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI , RCM , VCCI ,UKCA
OPERATING TEMPERATURE	0℃~40℃

SKU	SYS-SH610R4
Brand	Shuttle
Unit Of Measure	ea
