Shuttle DS50U 1.3L Barebone Slim Mini PC

Efficient 1-Liter Fanless PC | Harness 13th Gen Raptor Lake-U Power

Shuttle's latest fanless model, the DS50U, supports the cutting-edge 13th Gen Intel® Raptor Lake-U processor, and enables dual-channel up to DDR5-5200 memory. With Iris® Xe or UHD integrated graphics based on processor SKUs, the DS50U can enhance multitask performance and handle a variety of digital applications effortlessly. Despite its compact 1-liter volume, this device features a rich array of I/O connectors, including eight USB ports, SATA 3.0, dual M.2 slots, and one M.2 E slot for expandability, enabling users to install various peripherals. Additionally, it supports triple displays via HDMI 2.0b, DisplayPort, and VGA. The DS50U is well-suited for a wide range of business applications, including IoT gateways, smart digital signage, automation control, edge computing, interactive kiosks, and more.

13th Gen Intel® Raptor Lake-U Processor

The DS50U supports the brand-new 13th Gen 10nm Intel Raptor Lake-U processor with a base TDP of 15W. Intel’s Raptor Lake-U series, with its hybrid design of P-cores and E-cores, DDR5 memory support, and advanced integrated graphics, delivers powerful performance and consuming less power to boost efficiency and productivity. The 13th Gen U-series CPUs range from Core i3 to Core i7, with up to 10 cores and 12 threads.

● CPU options: CoreTM i3-1315U/ i5-1335U/ i7-1355U, Intel® Processor U300, Intel® Celeron 7305
● With Iris® Xe architecture, it can offer up to 96 execution units (EU) and 128-bit memory

DDR5 Memory for Low-Power Performance

DDR5 operates at a lower voltage, reducing power consumption and increasing energy efficiency compared to DDR4. Its faster data transfer rates lead to significantly improved overall system performance.

● Supports Dual-channel DDR5-5200 memory with Intel® Gen13 processors
● Maximum Memory capacity of up to 64GB (32GB x 2)

4K Ultra High-Definition for Powerful Visual Experiences

Clear triple displays support for both commercial and entertainment use:
● 1x HDMI 2.0b and 1x DisplayPort (4096 x 2160@60Hz)
● 1x VGA (1920 x 1080)

M.2 Support: Enhancing Expandability and Connectivity

● Dual M.2 2280 slots:
One for PCIe Gen4x4 and SATA
One for PCIe Gen4x4, USB 2.0, and USB 3.0
Achieve the highest data transfer speeds by installing a PCIe Gen4 NVMe SSD.

● 1x M.2 2230 E slot
Equipped with an M.2 2230 (E key) for PCIe gen3x1 and USB3.0, providing up to 5G Wi-Fi and Bluetooth functionality.

Flexible Data Transmission

● 2x USB 3.2 gen2
● 4x USB 3.2 Gen1
● 2x USB 2.0
● 2 x COM ports (including 1x RS232/422/485 and 1 x optional RS232)

Seamless Networking Connectivity

● Dual Intel® LAN for enhanced productivity
● Network speeds: 1 x 2.5Gbps and 1 x 1Gbps
● Features BIOS Wake-On-LAN: Allows powering on DS50U from S3/S4/S5 mode
● WLAN via M.2 2230 E key, providing wireless convenience

Supplementary Features

● BIOS and Utility: Power-On After Power Failure with RTC Power-on function, Wake on LAN, Software Watchdog
● Reliability: Fanless, operates in temperatures ranging from 0~40 ⁰C with unique industrial thermal design, 24/7 long-term operating
● Mounting Methods: VESA Compatible with a footstand design
● Supported Operating System: Windows 11 and Linux (64-bit)

Applications

Comparison

36 months

Specifications:

FORM FACTOR	Shuttle 1.3L Chassis
PROCESSOR	Intel Celeron 7305 Intel Core i3-1315U / Intel Core 3 100U Intel Core i5-1335U / Intel Core 5 120U Intel Core i7-1355U / Intel Core 7 150U
MEMORY	2 x 262 pin DDR5 SODIMM slots, 32GB per DIMM (Max 64GB) Dual Channel DDR5 up to 5200Mhz
VIDEO OUTPUT	(1)HDMI 2.0b + (1)DisplayPort 1.4 + (1) VGA video outputs Support triple independent display
AUDIO	Realtek ALC888S 2 channel High Definition Audio
ETHERNET	(1)Intel GbE Lan / (1)Intel 2.5 GbE Lan 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function Support Teaming function
STORAGE INTERFACE	SATA 6.0Gb/s interface NVMe interface
ONBOARD CONNECTORS	(1) 2.5 inch SATA connector (1) USB2.0 header (1) Auto Power on Jumper (1) RS232 voltage switch (1) External 4 pin header

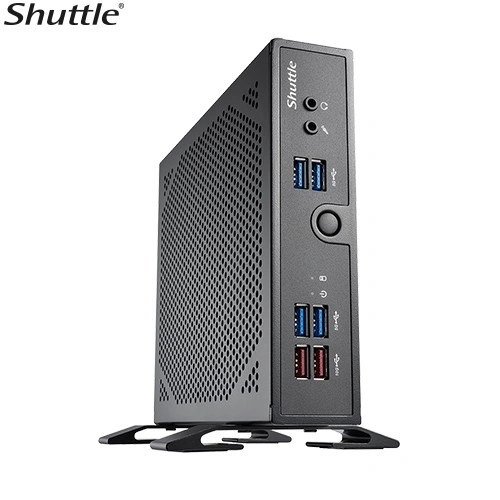

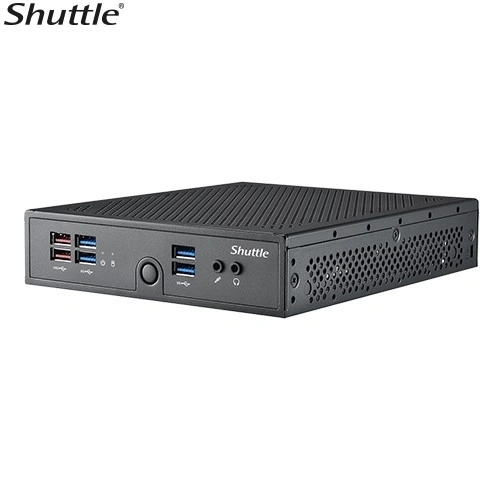

FRONT PANEL	(1) Power on button (1) Power LED (1) HDD LED (2) USB 3.2 Gen2 (4) USB 3.2 Gen1 (1) Mic in (1) Headphone out

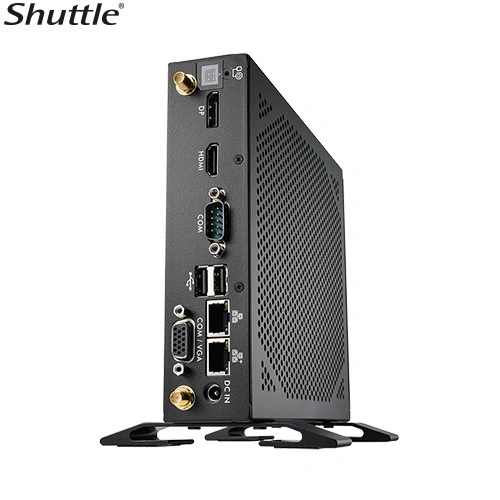

BACK PANEL	(2) RJ45 LAN (1) HDMI (1) DisplayPort (1) VGA (1) RS232/RS422/RS485 (2) USB 2.0 (1) External 4 pin header (Clear CMOS/Power Switch/5V) (1) DC-in (1) Kensington lock (2) Antenna fixture
DRIVE BAYS	(1) 2.5" HDD / SSD bay
DIMENSIONS	200(L) x 165(W) x 39.5(H) mm Dimension drawing
POWER	90W 19V Adapter bundled Input:100- 240V AC Output: 19V/4.74A or 12V/7.5A DC
ACCESSORIES	XPC Multilanguage Quick User Guide XPC DVD Driver Food stand VESA mount VESA Screw pack Power cord Thermal Grease HDD Screw pack 90W adapter
EXPANSION SLOT	(2) M.2 2280 Type M key socket (1) M.2 2230 Type E Key socket
OS SUPPORT	Windows 11 Linux
GRAPHICS	Integrated Intel® Iris® Xe (Feature depends on processor)
NET WEIGHT	NW:1.6 kg GW:2.85 kg
CERTIFICATION	Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI , RCM , VCCI , UKCA
OPERATING TEMPERATURE	0℃~40℃

SKU	SYS-DS50U
Brand	Shuttle
Unit Of Measure	ea
