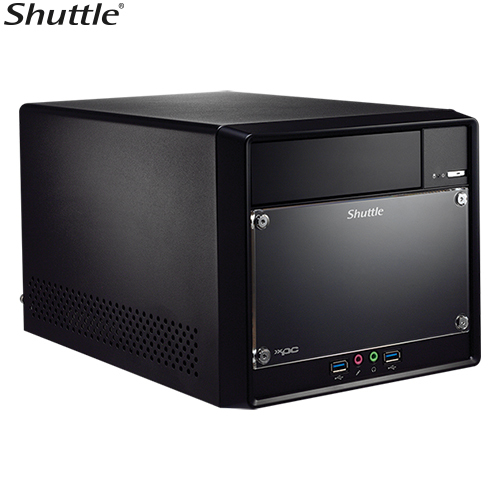

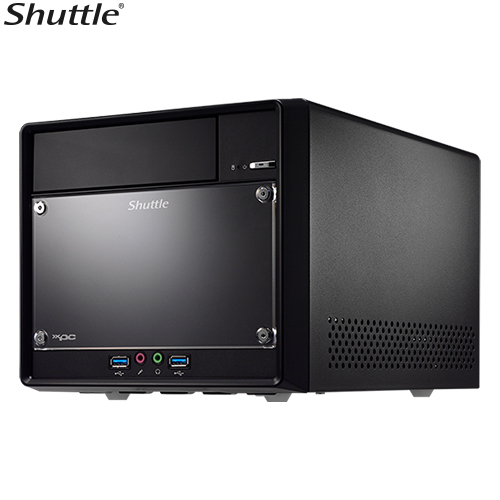

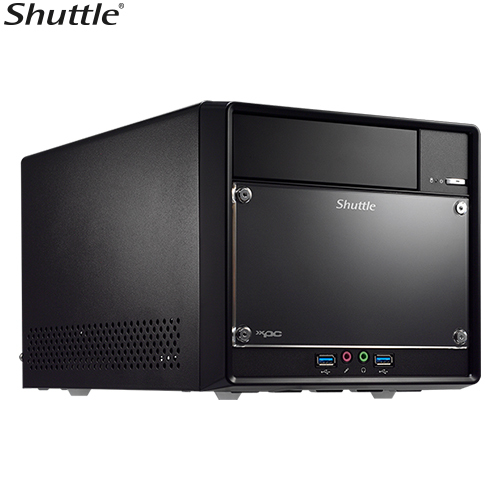

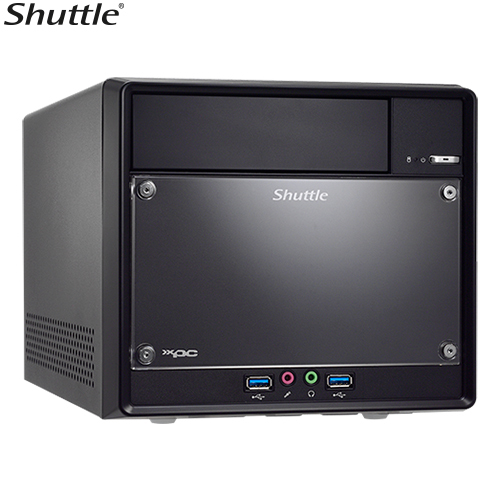

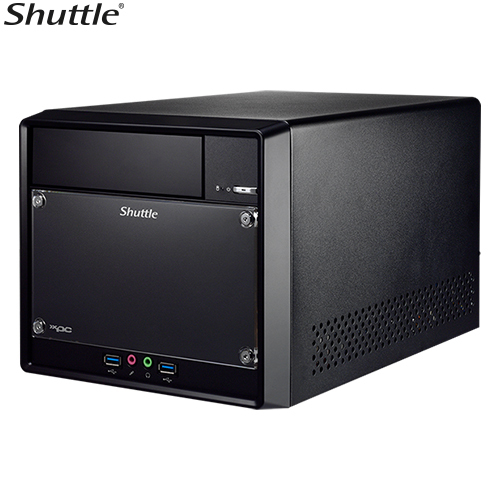

Shuttle SH510R4 XPC Cube 13L Barebone-Support Intel 11/10th Gen

Economical and Capable Workstation - Your Best Choice of Entry-level PC

Shuttle XPC Cube SH510R4 features with new H510 chipset. Supporting Intel® 11th gen LGA1200 processor that integrated Intel® Xe engine to simultaneously output 4K/60 contents via HDMI 2.0b and DisplayPort1.4. The new processor offers fast and reliable performance for professional users. To fulfill most applications, SH510R4 allows users to install two 3.5” HDD, one ODD bay and a M.2 M key SSD to offer faster storage performance. Thanks to a built-in 80 PLUS power supply and exclusive heat-pipe cooling system, the model is energy-efficient and ready for long-term operation. As desired, the front panel can also be fully customized to your needs.

Intel® 11th Generation Core™ processor

Intel 11th Gen processor Rocket Lake-S is equipped with all new 14nm process architecture, integrated GPU and high-speed interface. It strengthens 19% improvement to instructions per clock (IPC). Besides, enhanced Intel® UHD graphics featuring Intel® Xe graphics architecture delivers 50% better performance than the previous generation-Matching .with SH510R4’s unique design and powerful thermal capability, allowing users to take advantage of their daily work.

4K UHD Experience and Dual Display Productivity

With UHD graphic upgraded, SH510R4 features an HDMI 2.0b, which supports 4k 50/60hz, 18Gbps bandwidth, and with a DisplayPort that overall drives up to two independent displays with 4K UHD resolution.

High Storage Capacity with M.2

With native M.2 2280 key M and one M.2 2230 key E slots, the SH510R4 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.

Superb PCI-E 4.0 Scalability Upgraded

SH510R4 is equipped with PCI-e 4.0 x16 for a higher level of usage on image processing. The latest PCI-e 4.0 will bring an amazing delivery bandwidth nearly double times more than PCI-e 3.0.
* GFX card dimention limit : 273 mm x 98 mm x 38 mm

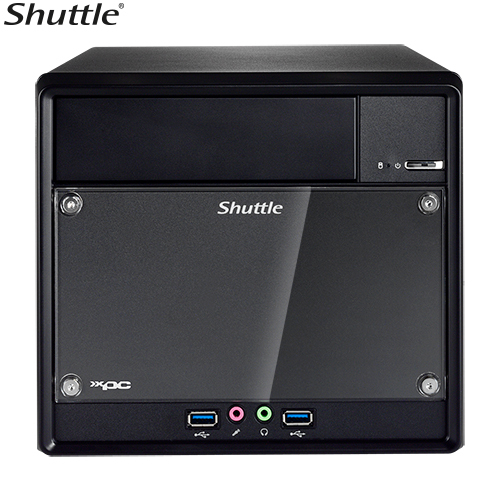

Customizable Front Panel

The front of the SH510R4 chassis is easily customized by simply changing the acrylic front plate. Add any design, such as a photo, graphic, or your company logo to the front panel.

Integrated Cooling Engine

Shuttle's industry-leading I.C.E. heat pipe technology delivers efficient cooling and is exceptionally quiet to ensure proper airflow inside such a small case.

80 PLUS Bronze Certified

SH510R4 is equipped with an 80 PLUS Bronze 300W power supply for guaranteed energy efficiency and energy saving. At high efficiencies, there is less power wastage which translates to operational benefits.

Operating System Support

- Windows 11 64bit
- Windows 10 64bit
- Linux

36 months

Specifications



FORM FACTOR Shuttle Form factor
PROCESSOR Support Intel® 10th/11th generation Core™ i3/i5/i7, Pentium®, Celeron®125W LGA1200 CPU
CHIPSET Intel H510 express chipset
MEMORY (2)DDR4 3200 (11th CPU only)MHz / 2933MHz / 2666MHz support, dual channel up to 64GB (32GB*2)
VIDEO OUTPUT (1)HDMI + (1)DisplayPort +(1) VGA , support dual independent display 4K/60Hz playback
(With Integrated Graphic in CPU)
AUDIO Realtek ALC662/ALC897/ALC888s
5.1 Channel high definition audio
ETHERNET Intel i219
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
STORAGE INTERFACE SATA 6.0Gb/s interface
ONBOARD CONNECTORS (2)4 Pin fan connector
(3)SATA gen3.0 connector
(1) ATX main power (2*10)
(1) ATX 12V power (2*2)
(1) 1X4 USB 2.0 header
(1) RS232 header
(1) Front AUDIO header
(2) Front USB FFC header

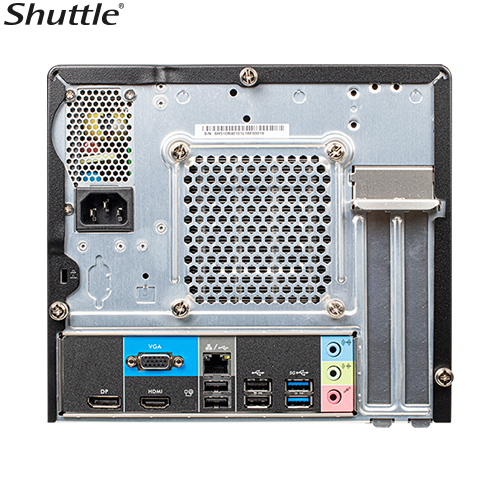

BACK PANEL (4) USB 2.0 Port
(2) USB 3.2 Gen 1 Port
(1)LAN
(1)HDMI port
(1)Display port
(1)VGA port
(1)Audio Mic in
(1)Audio Line in
(1)Audio SPK out
(1)Clear CMOS button
(3)Antenna Hole
DRIVE BAYS (1) 5.25" ODD bay

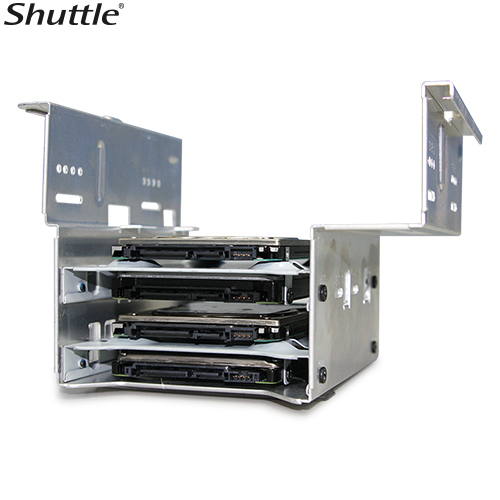

(2) 3.5" HDD bay
DIMENSIONS 329(L) x 216(W) x 198(H) mm
POWER 80 Plus 300W power supply
Input: 100-240V,6-3A AC
Support 80 PLUS Bronze
ACCESSORIES XPC Multi-Language quick guide
XPC DVD Driver
SATA Cable
CPU Thermal Grease
Power cord
Screw package
EXPANSION SLOT (1) PCI-E X16 Gen4.0 slot (with Intel 11th CPU)
(1) PCI-E X1 Gen3 slot
(1) M.2 2280 type M key socket
(1) M.2 2230 type E key socket
OS SUPPORT Windows 10/11 64bit OS
Linux
CERTIFICATION Safety certification : CB , BSMI , cTUVus
EMI certification : FCC , CE , BSMI , RCM , VCCI
OPERATING TEMPERATURE 0℃~40℃
SKU SYS-SH510R4
Brand Shuttle
Unit Of Measure ea
