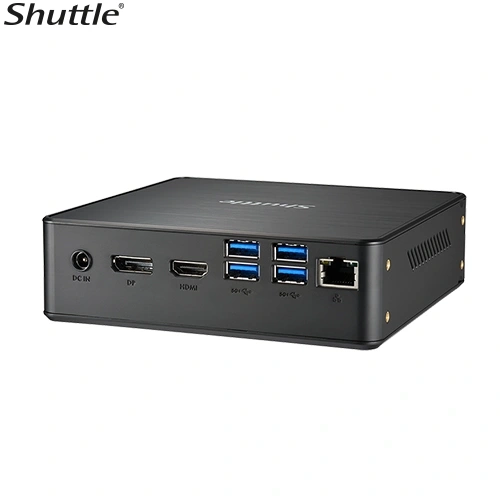

Shuttle NC50N 0.85L Barebone Slim Mini PC

Efficient & Reliable Commercial Computing | Built on Intel® Twin Lake

The Shuttle NC50N series harnesses Intel® Twin Lake Processors, delivering energy-efficiency and dependable performance for everyday business needs. Featuring Intel® Graphics and high-speed DDR5-4800 memory, this series elevates the computing experience with smooth system responsiveness while supporting dual 4K displays, making it ideal for commercial and edge deployments that require stability and efficiency.
Remarkably, it supports a 2.5” drive bay and dual M.2 PCIe NVMe SSDs, enabling flexible storage configurations and high-speed data access in a compact sub-1L chassis. Equipped with 7 USB ports, 2.5GbE LAN, WLAN expandability, and VESA mount compatibility, the NC50N series can be easily deployed in space-constrained commercial setups and controlled industrial environments.

Intel® Twin Lake | Engineered for Sustained Performance

Built on the all E-core architecture, the Intel® Twin Lake delivers energy-efficient and reliable performance for continuous operation. Combined with Intel® Graphics and DDR5 memory with up to 16GB capacity and 4800 MT/s transfer rate, it’s well-suited for business applications, retail displays, and controlled industrial environments requiring continuous operation. The NC50N offers 3 SKUs across the Intel® Twin Lake platform:

Crisp Visuals | Dual 4K Display Output

Featuring DisplayPort and HDMI, the NC50N series supports simultaneous dual 4K output for clear and efficient multi-display setups.

● 1x HDMI 2.0b
● 1x DisplayPort 1.4a

Seamless Network | Designed to Connect

Equipped with an Intel® 2.5 GbE LAN and a built-in M.2 2230 slot for WLAN expansion, the NC50N series enables flexible and stable networking.

● 1x Intel® 2.5 GbE LAN
● 1x M.2 2230 slot for optional WLAN & Bluetooth modules

Strategic USB Layout | Speedy Data Transmission

The NC50N series integrates 7 USB ports, distributed across both the front and rear panels, improving accessibility while supporting cleaner and more organized cable routing. In addition, the USB configuration includes a Type-C port, allowing for fast and convenient data transfer with modern peripherals.

● 6x USB 3.2 Gen1 Type-A
● 1x USB 3.2 Gen1 Type-C

Flexible Storage Expansion| Beyond Physical Boundaries

Within an ultra-compact footprint, the NC50N series offers flexible storage options with dual M.2 2280 slots and an additional 2.5” drive bay. This configuration supports efficient data organization and high-speed access, enhancing overall system efficiency and reliability .

● 2x M.2 2280 slots for SSDs (PCIe Gen3 NVMe)
● 1x 2.5” HHD/SSD bay (SATA)

Robust Adaptability | Reliable Deployment

The NC50N series supports 24/7 operation in 0-50°C environments. Coupled with VESA mount compatibility and efficient cooling design, it is built to deliver reliable performance for commercial and edge deployments.

● Mounting Method: VESA mount (75/100 mm)
● Operating Temperature: 0-50°C
● Thermal Solution: Heat-pipe cooling system with Smart Fan

Other Features

● Supports Windows 11 & Linux operating systems
● Extensive BIOS features

Applications

36 months

Specifications:

FORM FACTOR	Shuttle 0.85L Form Factor
PROCESSOR	Intel Twin lake-N Intel processor N250/N150,Intel® Core™ 3-N350 TDP up to 7W CPU
MEMORY	Support DDR5 4800Mhz SODIMM memory Max. 16GB
VIDEO OUTPUT	Intel generation HD Graphic engine HDMI 2.0b + DispalyPort 1.4a outputs
AUDIO	C-Media CM6542
ETHERNET	Intel I226 Supports 10Mb/s,100Mb/s,1Gb/s,2.5Gb/s operation Support wake ON LAN (WOL) feature
STORAGE INTERFACE	2.5" SATA device bay x 1

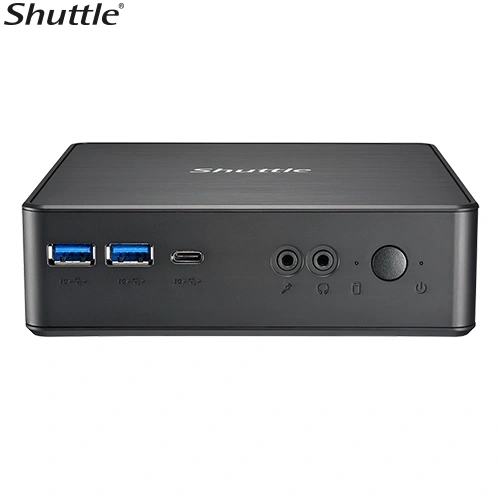

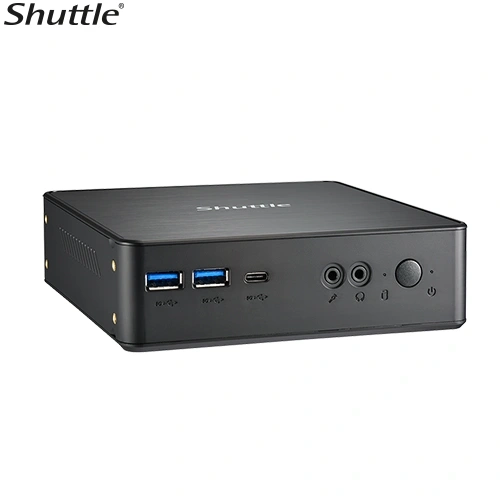

FRONT PANEL	Power button x 1 Power LED x 1 HDD LED x 1 USB 3.2 Gen 1 Type A x 2 USB 3.2 Gen 1 Type C (w/o DP) x 1 Line-out x 1 Mic-in x 1

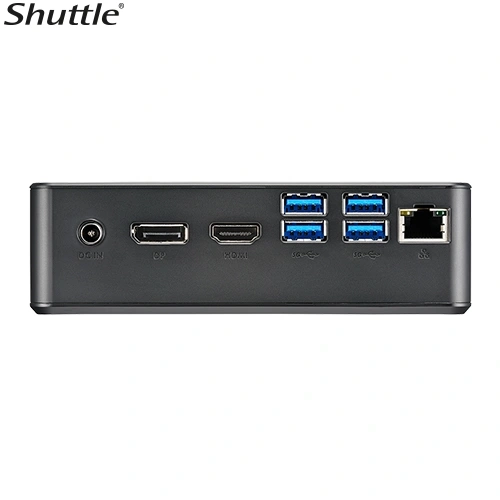

BACK PANEL	HDMI x 1 DisplayPort x 1 USB 3.2 Gen 1 Type A x 4 RJ45 x 1 DC-in Jack x 1 Kensington Lock x 1
DRIVE BAYS	2.5" 15mm SATA HDD / SSD
DIMENSIONS	142 x 142 x 42 mm (LWH)
POWER	65 Watts (19V/3.42A)
ACCESSORIES	Quick guide XPC DVD Driver VESA Mount 65W adapter Screw pack Power cord
EXPANSION SLOT	M.2 2280 Type M key socket x 2 M.2 2230 Type E Key socket x 1
OS SUPPORT	Windows 11 Linux
OPERATING TEMPERATURE	0℃~50℃

SKU	SYS-NC50N
Brand	Shuttle
Unit Of Measure	ea

Be The First To Review This Product!

Help other TECH BITZ N PCS users shop smarter by writing reviews for products you have purchased.

Write a product review

More From This Category

Shuttle NS02AV2 Mini PC 0.5L System-Rockchip RK3368

$469.00

Shuttle NC40U Slim Mini PC, 1L Barebone

$595.00

Shuttle XH610 XPC Slim 3-Liter, Intel H610 Chipset Supp

$789.00

Shuttle DL30N Slim Mini PC 1L Barebone

$539.00

Shuttle DH610 XPC Slim Mini PC 1L Barebone-Intel 12th/1

$699.00

Shuttle XH610G2 Intel 14th/13th/12th Gen LGA1700 socket

$949.00

Shuttle DS50U 1.3L Barebone Slim Mini PC

$679.25

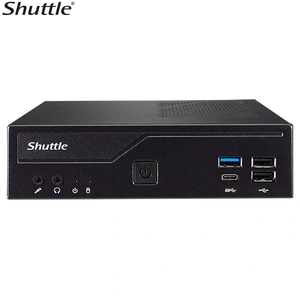

Shuttle DH610 V2 1L Barebone Slim Mini PC
