Shuttle DH610 XPC Slim Mini PC 1L Barebone-Intel 12th/13th/14th Gen

14th Gen Hybrid Power Simplifies AI Tasks

The Shuttle DH610, a 1-liter Slim model, effortlessly accommodates 14th Gen Intel® Core™ Desktop and 13th/12th Gen processors via the LGA1700 socket. Featuring Intel®'s hybrid architecture design, dual-channel DDR4-3200 memory (Max. 64GB), and integrated UHD Graphics 700 series, this model delivers reliable performance suitable for office use, digital signage, kiosks, and other multi-platform AI deployments. Moreover, the DH610 supports up to three displays via one HDMI 2.0b and two DisplayPort interfaces and provides comprehensive connectivity, enhancing productivity and flexibility!

Intel® 14th Gen Processor Compatibility

Equipped with the Intel® H610 chipset, the DH610 seamlessly supports the latest Raptor Lake Refresh (14th Gen) Processors. Harnessing integrated Intel® UHD Graphics, the DH610 excels in various applications like 4K display, video editing, and AI tasks.

Upgrade to 14th Gen Intel CPU Now!
● Up to 24 cores: 8 Performance-cores and 16 Efficient-cores
● Supports Intel® Thread Director for optimal multitasking
● Maximized 32 threads and peak clock speed up to 5.8GHzGHz via 120W power
● Advanced connectivity options like Wi-Fi 7

Triple-Display Productivity

With one HDMI 2.0b and two DisplayPort outputs built-in, DH610 supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.

Strong Expansion Capacity with M.2

With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, DH610 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 2280 key M supports SATA 3.0 and PCIe 3.0 x 4 storage interfaces.

Rich Connectivity and High-speed Intel® 2.5GbE LAN

DH610 provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, and two RS232 for flexible connectivity options. In addition, Intel® 2.5 GbE and Intel® 1GbE Lan are equipped to support Wake on LAN functions to provide high-speed data transfer capability.

Exclusive Cooling Technology

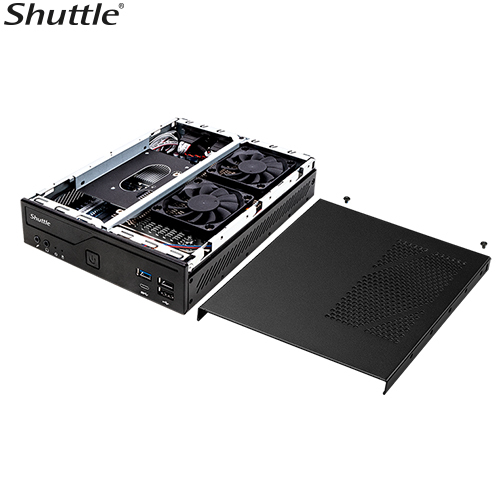

DH610 features Shuttle’s exclusive heat-pipe cooling system with an intelligent fan design. The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation.

Operating System Support

- Windows 11 64bit
- Windows 10 64bit
- Linux

36 months

Specifications

FORM FACTOR 1.3L chassis

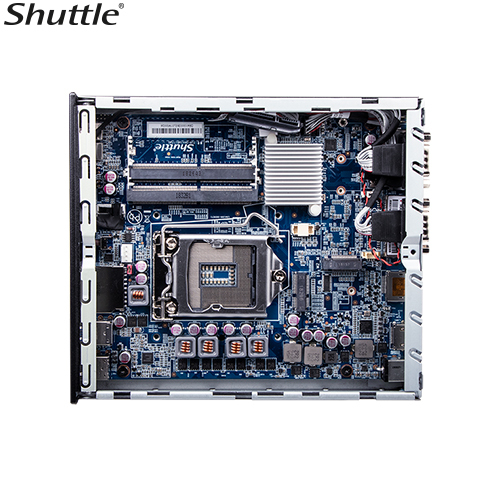

PROCESSOR Support Intel 12/13/14th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor
* BIOS v2.02 and updated version support Raptor Lake (13th) CPU
CHIPSET Intel H610 Express chipset
MEMORY 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB)
DDR4 up to 3200 MHz
VIDEO OUTPUT HDMI 2.0 x 1+ DisplayPort x 2, Triple video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
AUDIO Realtek High Definition Audio
ETHERNET (1)Intel GbE Lan / (1)2.5 GbE Lan
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
STORAGE INTERFACE SATA 6.0Gb/s interface
ONBOARD CONNECTORS (1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1x4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch

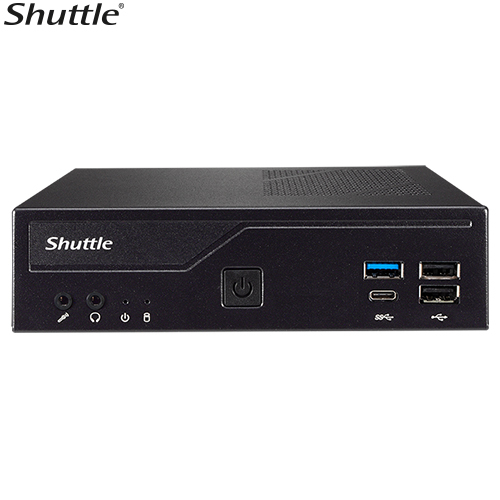

FRONT PANEL (2) USB 3.2 Gen1 ports
(Include Type C x1)
(2) USB 2.0 ports
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) HDD LED

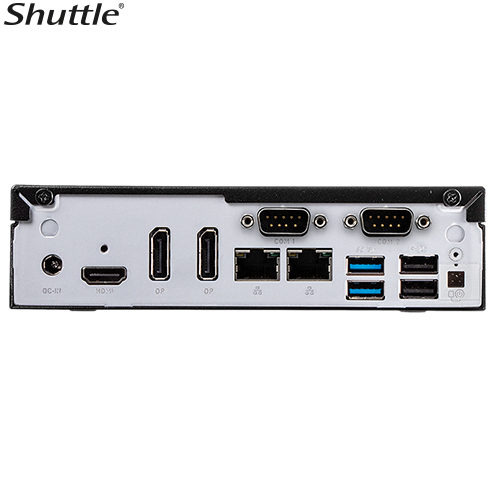

BACK PANEL (2) RJ45 Gigabit LAN port w/LED
(1) HDMI port
(2) Display port
(2) USB 3.2 Gen1 ports
(2) USB 2.0 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
DRIVE BAYS (1) 2.5" HDD / SSD bay
DIMENSIONS 190(L) x 165(W) x 43(H) mm

POWER 120W Power Adapter
Input:100- 240V AC
19V 6.32A

*DH610 support 12V DC input.
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
120W adapter
EXPANSION SLOT (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
OS SUPPORT Windows 10/11 64 bit O.S
Linux
REMARK RS232/422/485 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.
OPERATING TEMPERATURE 0℃~50℃
SKU SYS-DH610
Brand Shuttle
Unit Of Measure ea
