DS20U/DS20U V2 SERIES


Fanless 1-liter PC With Intel 10th Gen. Processor

The DS20U and DS20U V2 are models within the Shuttle DS fanless series, supporting 10th Gen Intel Comet Lake-U processors with Intel UHD graphics, providing great connectivity and multitasking capabilities. These models offer HDMI 2.0a, DisplayPort 1.2, and D-sub (VGA) output interfaces, allowing multi-screen productivity. Additionally, they have four USB 3.2 Gen2 ports, four USB 2.0 ports, a COM port, and dual LAN ports to meet high computing demands. This makes them suitable for various applications such as digital signage, POS systems, information kiosks, thin clients, and office computers. The passive cooling architecture of the system requires minimal maintenance and is designed for uninterrupted 24/7 operation.

Intel® 10th Gen Comet Lake-U Core™ processor

The DS20U and DS20U V2 series are equipped with Intel® 10th Gen Celeron® 5205U processor. With the support of Intel® UHD Graphics and the ability to install up to 64GB of RAM, the DS20U and DS20U V2 provide better system efficiency and graphics performance.
*Core i3-10110U / i5-10210U / i7-10510U processor options available

Great connectivity and expansibility for multi-tasking

The DS20U and DS20U V2 series have built-in four native USB3.2 Gen2*, four USB2.0, and one COM port that supports RS232/422/485. The COM port can be configured as a Ring Indicator (RI) or external power supply with a voltage level of either 5V or 12V. With an expanded M.2 2280 Type M slot, the DS20U and DS20U V2 can support PCIe x4 or SATA 6Gb devices, providing higher transmission bandwidth to meet users’ requirements for high-performance devices.
*Core i models are equipped with USB3.2 Gen 2; while Celeron model comes with USB3.2 Gen 1

Triple-display productivity

The DS20U/ DS20U V2 series provide an HDMI 2.0a, a DisplayPort 1.2, and VGA outputs, allowing for the connection of up to three independent displays. The HDMI 2.0a and DisplayPort 1.2 support resolutions up to 4096 x 2160 / 3840 x 2160 @ 60Hz.

Hi-speed Gigabit LAN and Wireless Options

The DS20U model has excellent network connectivity with dual built-in Intel® Gigabit LAN, while the DS20U V2 is equipped with Intel® Gigabit LAN and Intel® 2.5G LAN. Both models support the simultaneous installation of optional accessories, including the IEEE 802.11ac Wi-Fi+BT module and the 4G LTE adapter kit (WWN03)*.

*Note: When using the WWN03, it will occupy the 2.5” bay and not support the installation of 2.5" HDD/SSD. Only M.2 2280 SSD can be used.

Fanless design

With a passive thermal cooling system, the fanless design reduces the power consumption required by a fan as well as the cost of replacing fans on-site. By utilizing solid-state disks, these models create a completely noise-free operational platform. The DS20U and DS20U V2 series are approved for 24/7 permanent operation and also suitable for 0 ~ 40 ⁰C working environments to meet the different commercial applications.

Operating System Support

- Windows 11 64bit
- Windows 10 64bit
- Linux

36 months

FORM FACTOR Shuttle 1.3L Chassis
PROCESSOR Intel Comet Lake-U Celeron 5205U 15W CPU
i3-10110U, i5-10210U, i7-10510U
MEMORY 2 x 260 pin DDR4 SODIMM slots, 32GB per DIMM (Max 64GB)
Dual Channel DDR4 2400/2666Mhz
VIDEO OUTPUT (1)HDMI 2.0a + (1)DisplayPort 1.2 + (1) VGA video outputs
Support triple independent display
AUDIO Realtek ALC662/ALC897
2 channel High Definition Audio
ETHERNET (2)Intel Gigabit LAN (DS20U)
(1)Intel Gigabit LAN + (1)Intel 2.5GbE LAN (DS20U V2)
Supports 10/100/1000 Mb/Sec.
Support Wake-On-LAN function
STORAGE INTERFACE SATA for HDD/SSD
SD card reader

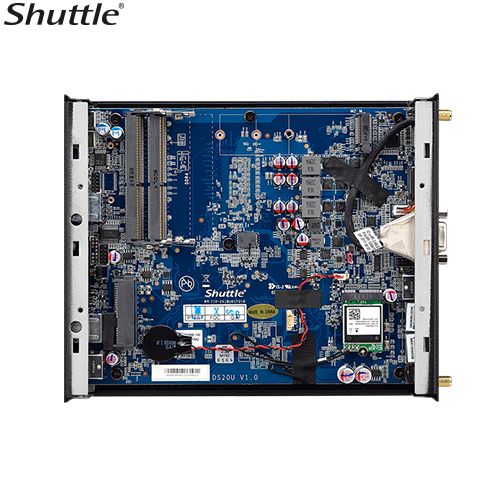

ONBOARD CONNECTORS (1) 2.5 inch SATA connector
(1) USB2.0 header
(1) Auto Power on Jumper
(1) RS232 voltage switch
(1) External 4 pin header

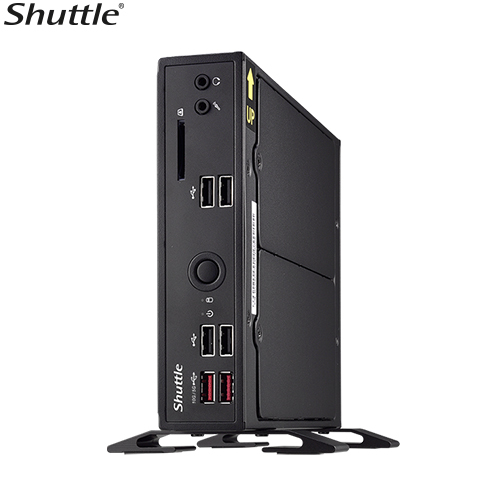

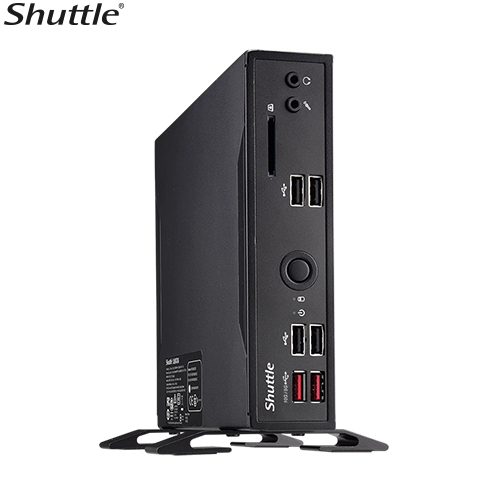

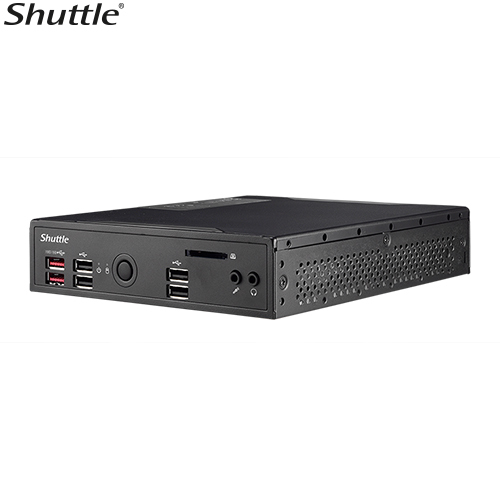

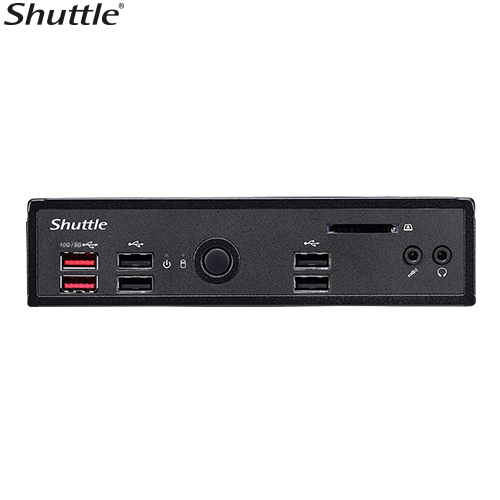

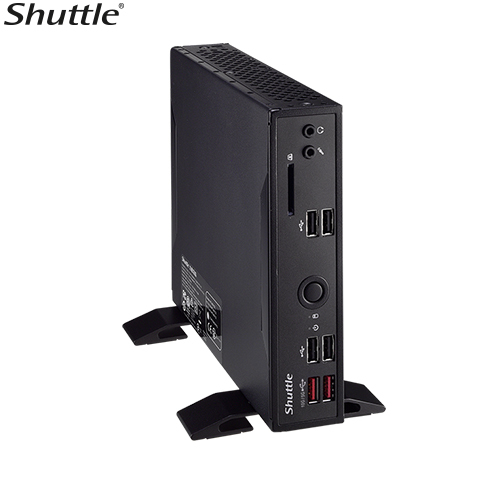

FRONT PANEL (1) Power on button
(1) Power LED
(1) HDD LED
(2) USB 3.2 Gen2 (Celeron 5205U is Gen1)
(4) USB 2.0 ports
(1) SD Card reader
(1) Mic in
(1) Headphone out

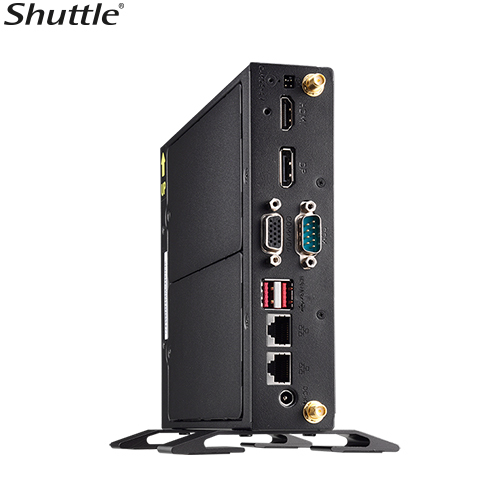

BACK PANEL (2) RJ45 LAN ports
(1) HDMI
(1) DisplayPort
(1) VGA
(1) RS232/RS422/RS485
(2) USB 3.2 Gen2 (Celeron 5205U is Gen1)
(1) External 4 pin header (Clear CMOS/Power Switch/5V)
(1) DC-in
(1) Kensington lock
(2) Antenna fixture

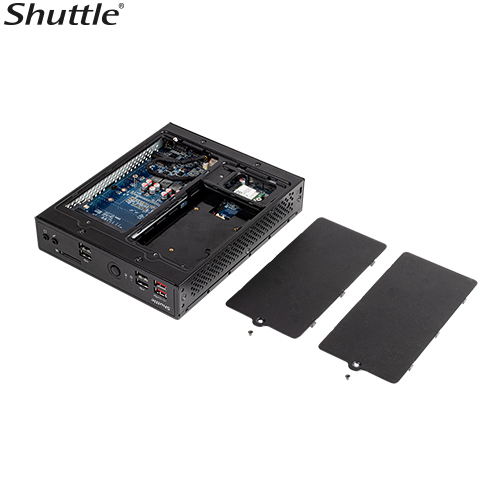

DRIVE BAYS (1) 2.5" HDD / SSD bay
DIMENSIONS 200(L) x 165(W) x 39.5(H) mm
Dimension drawing
POWER 65W 19V Adapter bundled
Input:100- 240V AC
Output: 19V/3.42A or 12V/5.42A DC
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
Food stand
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
65W adapter
EXPANSION SLOT (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E Key socket
OS SUPPORT Windows 10
Windows 11
Linux
GRAPHICS Integrated Intel UHD Graphics
CERTIFICATION Safety certification : CB , BSMI , cTUVus
EMI certification : FCC , CE , BSMI , RCM , VCCI
OPERATING TEMPERATURE 0℃~40℃
SKU SYS-DS20U
Brand Shuttle
Unit Of Measure ea
