DH670/DH670 V2


14th Gen CPU AI PC Enhancing Productivity with 4-Display Capability

Shuttle XPC Slim series DH670 and DH670 V2 feature 14th Gen Intel® Core™ Desktop Processors and advanced hybrid architecture, delivering high performance with up to 24 cores and 32 threads. Despite their slim 1.3L chassis, they support dual-channel DDR4-3200 memory (Max. 64GB), boast up to four stunning 4K displays, and can integrate Intel® UHD graphics. Moreover, these models provide multiple I/O interfaces for expandability and connectivity, making them suitable for diverse business needs, including AI applications, dynamic visuals, and content creation.

Intel® 14th Gen Processor Compatibility

Built on the latest 10nm architecture and H670 chipset, the DH670 and DH670 V2 effortlessly support the all-new Intel® Raptor Lake Refresh (14th Gen) Processors. With a performance hybrid architecture extending core technology, they can integrate graphics and deliver an immersive, smooth 4K/UHD visual and creative experience.

Upgrade to 14th Gen Intel CPU Now!
● Up to 24 cores: 8 Performance-cores and 16 Efficient-cores
● Supports Intel® Thread Director for optimal multitasking
● Maximized 32 threads and peak clock speed up to 5.8GHzGHz via 120W power
● Advanced connectivity options like Wi-Fi 7

Quad-Display Productivity

With two HDMI 2.0b and two DisplayPort outputs built-in, the DH670 and DH670 V2 support four independent displays, providing productivity benefits and dynamic visualization for multi-tasking and digital signage applications.

Strong Expansion Capacity with M.2

With a native M.2 2280/2260/2242 Type M slot and a M.2 2230 Type E slot, the DH670 and DH670 V2 offer considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 2280 key M supports both SATA and PCIe 4.0 x4 storage interfaces.


Excellent Expandability and Connectivity

The DH670 and DH670 V2 provide four USB 3.2 Gen2, four USB 3.2 Gen1 (including one Type-C), two RS232, and a SD Ver. 3.01 card reader* for flexible connectivity options.
﹡DH670 V2 has no SD card reader

Dual Intel® Core Networks

DH670 has built-in dual Intel® Gigabit LAN, while DH670 V2 has built-in dual Intel® 2.5G LAN interface, and supports Wake On LAN (Wake On LAN), making network transmission faster. It also has better compatibility with some enterprise computing software, improving network usage efficiency.

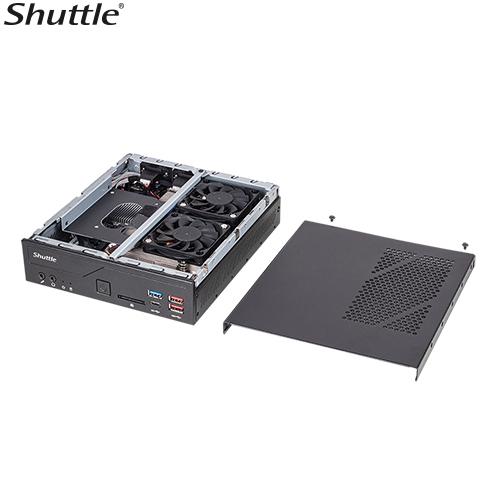

Exclusive Cooling Technology

The DH670 and DH670 V2 feature Shuttle’s exclusive heat-pipe cooling system with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.

Operating System Support

- Windows 11 64bit
- Windows 10 64bit
- Linux



36 months

FORM FACTOR 1.3L chassis
PROCESSOR Support Intel 12/13/14th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor
* BIOS v2.05 and updated version support Raptor Lake (13th) CPU
CHIPSET Intel H670 Express chipset
MEMORY 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB)
DDR4 up to 3200 MHz
VIDEO OUTPUT HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
AUDIO Realtek ALC662/897/888S High Definition Audio
ETHERNET (2)Intel Gigabit LAN (DH670)
(2)Intel 2.5GbE LAN (DH670 V2)
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) feature
STORAGE INTERFACE SATA 6.0Gb/s interface
ONBOARD CONNECTORS (1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1x4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch

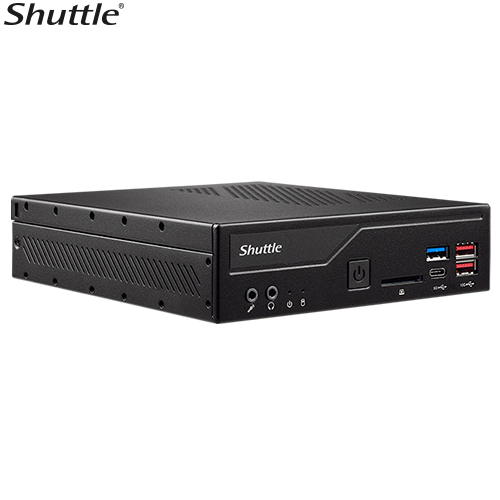

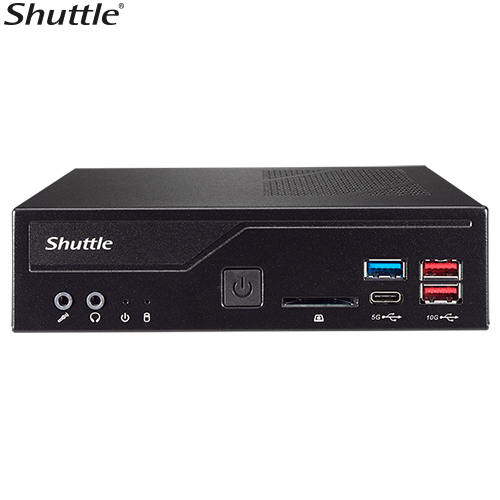

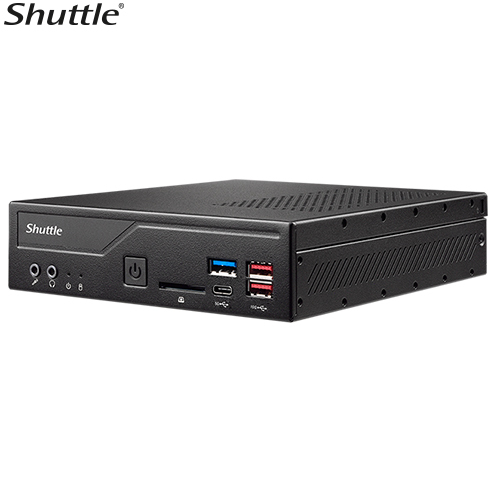

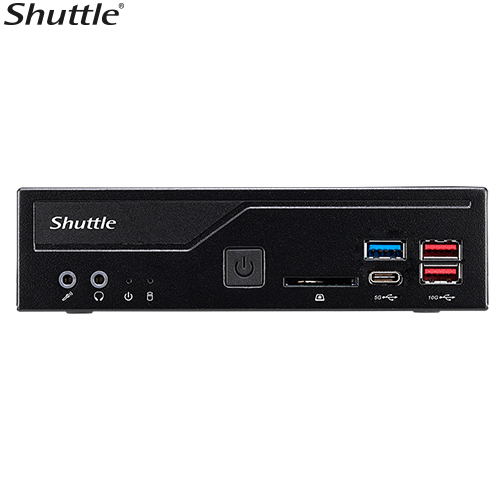

FRONT PANEL (2) USB 3.2 Gen1 ports
(Include Type C x1)
(2) USB 3.2 Gen2 ports
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
(1) SD card reader (Only DH670)

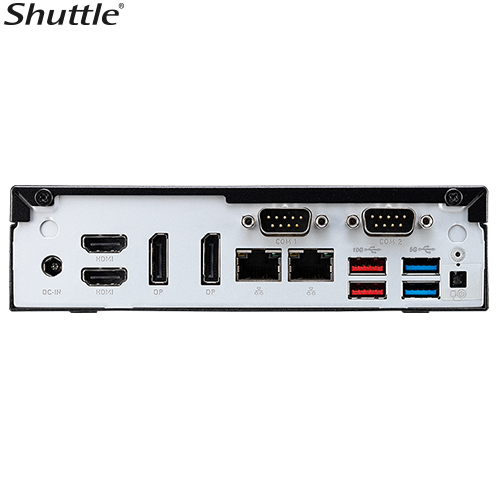

BACK PANEL (2) RJ45 LAN ports
(2) HDMI port
(2) Display port
(2) USB 3.2 Gen1 ports
(2) USB 3.2 Gen2 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
DRIVE BAYS (1) 2.5" HDD / SSD bay
DIMENSIONS 190(L) x 165(W) x 43(H) mm
POWER 120W Power Adapter
Input:100- 240V AC
19V 6.32A
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
120W adapter
EXPANSION SLOT (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
OS SUPPORT Windows 10/11 64 bit O.S
Linux
REMARK RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.
OPERATING TEMPERATURE 0℃~50℃



SKU SYS-DH670
Brand Shuttle
Unit Of Measure ea
