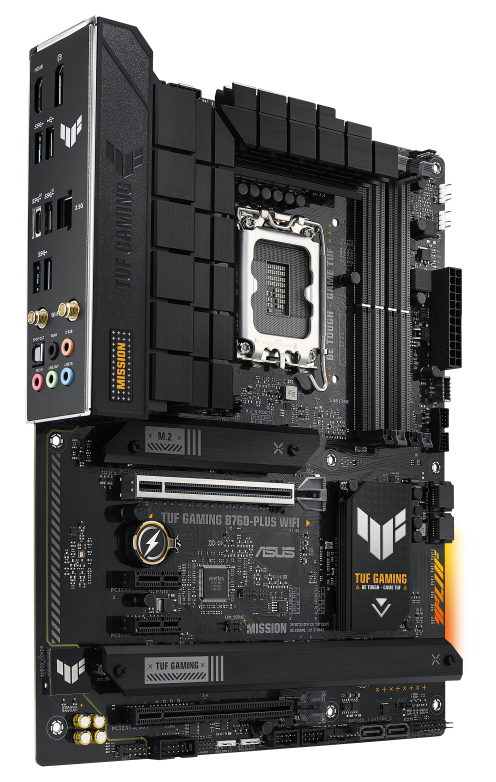

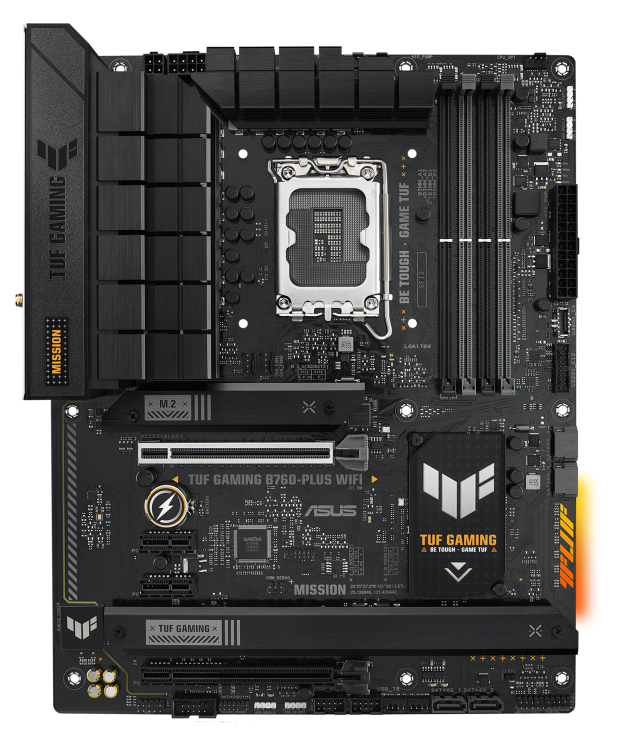

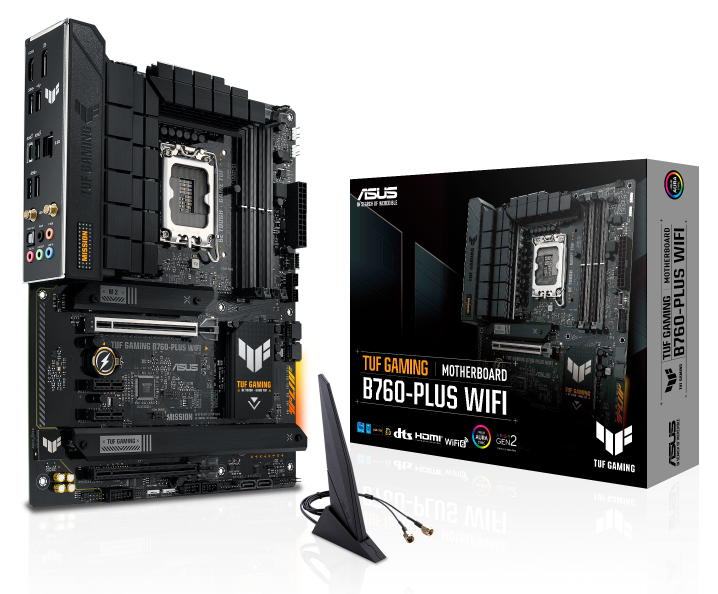

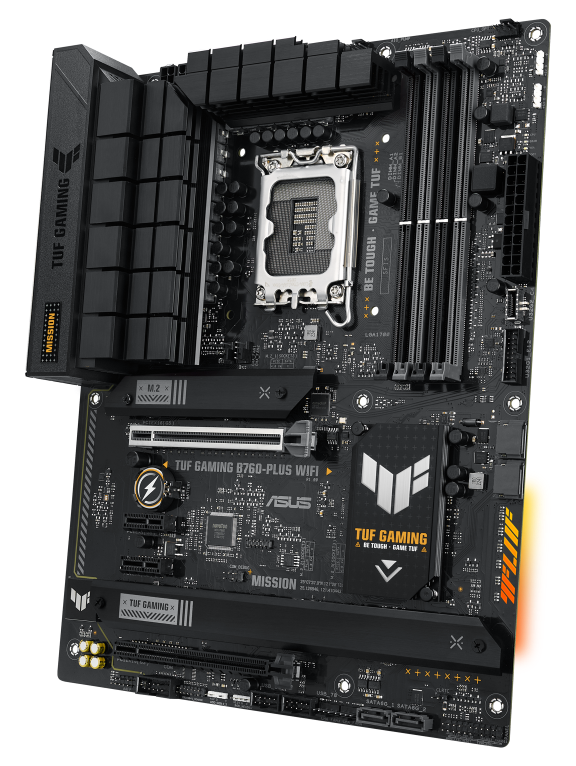

ASUS TUF GAMING B760-PLUS LGA1700 WIFI Motherboard Overview

36 months

Specifications:

Audio
Audio Channels 7.1
Video
Onboard Video CPU Dependent Video
Physical Characteristics
Form Factor ATX
Width 304.8 mm
Depth 243.8 mm
Onboard Interfaces
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 7
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 3
Memory
Maximum Memory Supported 128 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor DIMM
  UDIMM
I/O Controller
RAID Levels 0
  1
  10
  5
Controller Type Serial ATA/600
RAID Supported Yes
I/O Expansions
Number of PCI Express x1 Slots 2
Number of PCI Express x16 Slots 2
PCI Express Standard PCI Express 3.0
  PCI Express 5.0
Total Number of PCI Express Slots 4
Total Number of Expansion Slots 4
Network & Communication
Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard Bluetooth 5.2
2.5Gigabit Ethernet Yes
General Information
Product Type Gaming Desktop Motherboard
Manufacturer Part Number TUF GAMING B760-PLUS WIFI
Manufacturer Website Address http://www.asus.com/au
Manufacturer ASUS Computer International
Product Model GAMING B760-PLUS WIFI
Product Name GAMING B760-PLUS WIFI Gaming Desktop Motherboard
Brand Name TUF
Processor & Chipset
Processor Supported Pentium Gold
  Celeron
  Core
Total Processor Supported 1
Processor Socket Socket LGA-1700
Chipset Manufacturer Intel
Chipset Model B760
Processor Generation Supported 13th Gen
  12th Gen

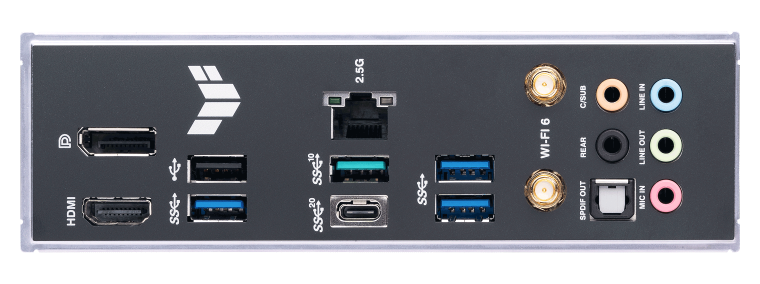

Interfaces/Ports
S/PDIF Yes
HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 6
Thunderbolt Yes
Number of USB 3.2 Gen 1 Type-A Ports 3
Number of USB 3.2 Gen 2 Type-A Ports 1
Number of Thunderbolt 4 Ports 1

From the manufacturer

Warranty & Shipping Dimensions

SKU II356582
Brand ASUS
Unit Of Measure ea
