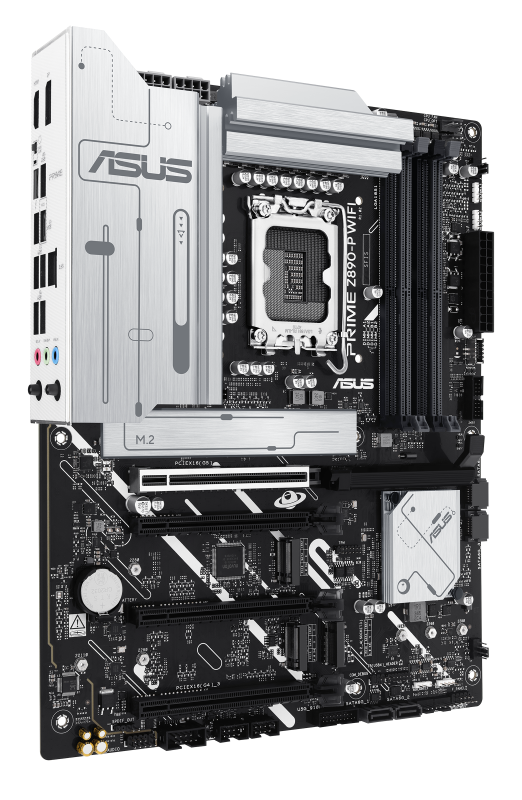

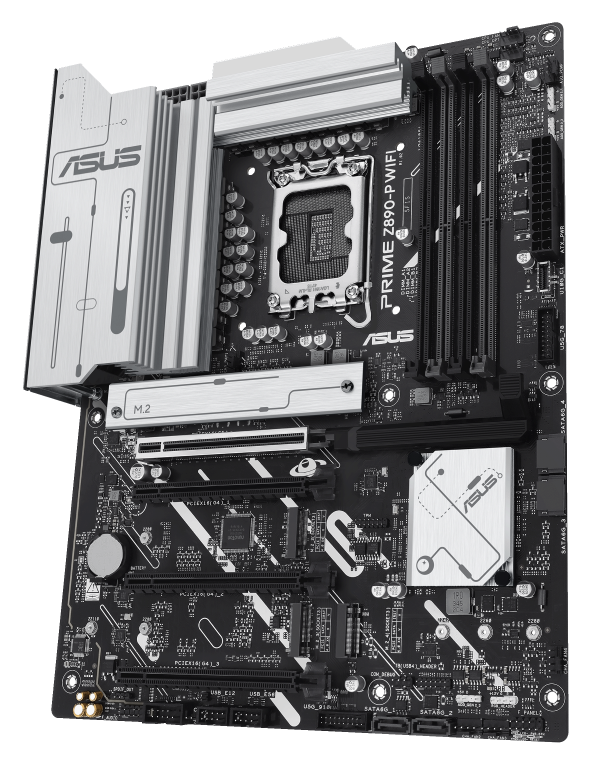

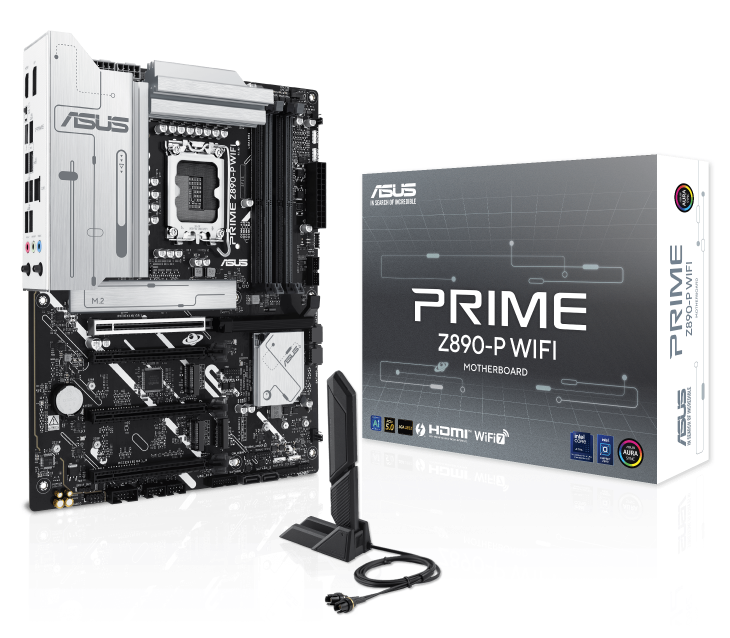

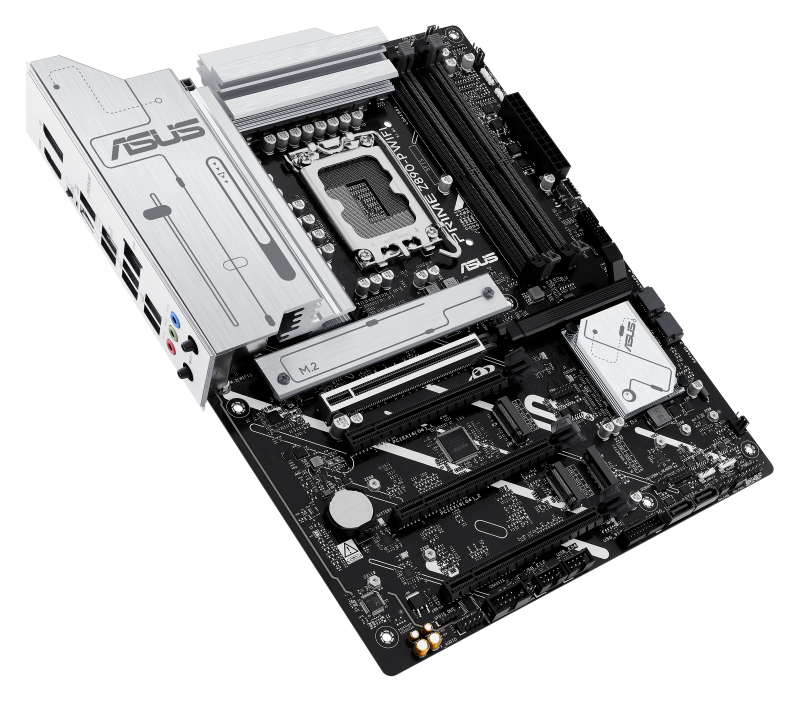

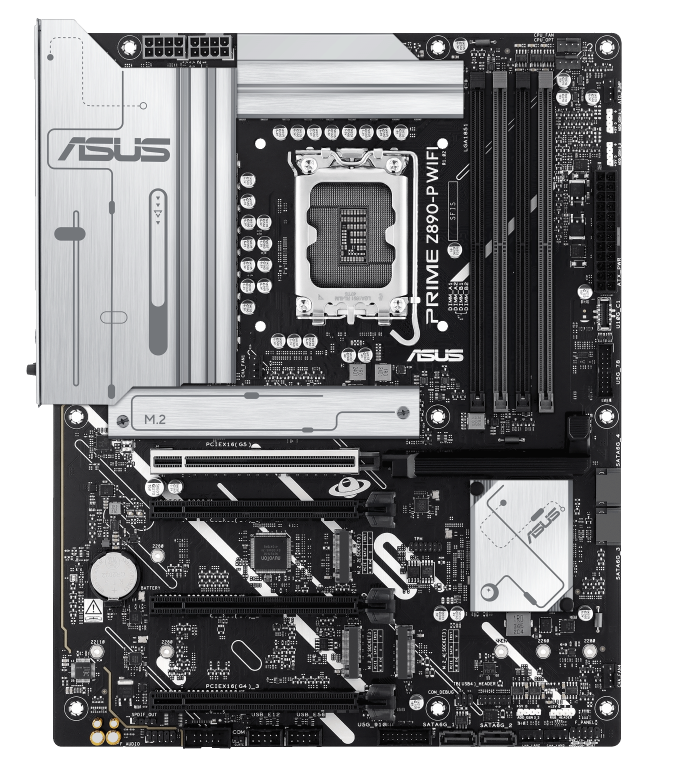

ASUS PRIME Z890-P WIFI-CSM LGA1851 ATX Motherboard

36 months

Specifications:

Audio
Audio Channels 7.1
Miscellaneous
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Technical Information
AI-powered Yes
Video
Onboard Video CPU Dependent Video
Physical Characteristics
Form Factor ATX
Width 305 mm
Depth 244 mm
I/O Expansions
Number of PCI Express x16 Slots 4
PCI Express Standard PCI Express 4.0
  PCI Express 5.0
Total Number of PCI Express Slots 4
Total Number of Expansion Slots 4
Onboard Interfaces
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 9
Number of Onboard USB 2.0 Ports 4
Onboard S/PDIF Header Yes
Number of M.2 Interfaces 4
Processor & Chipset
Processor Supported Core Ultra
Total Processor Supported 1
Processor Socket Socket LGA-1851
Chipset Manufacturer Intel
Chipset Model Z890
I/O Controller
RAID Levels 10
  5
  0
  1
Controller Type Serial ATA/600
RAID Supported Yes
Network & Communication
Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11be
Bluetooth Standard Bluetooth 5.4
2.5Gigabit Ethernet Yes
Memory
Error Checking ECC
Maximum Memory Supported 192 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor UDIMM
  DIMM
Memory Speed Supported 8666 MHz
General Information
Product Type Gaming Desktop Motherboard
Manufacturer Part Number PRIME Z890-P WIFI-CSM
Manufacturer Website Address http://www.asus.com/au
Manufacturer ASUS Computer International
Product Model Z890-P WIFI-CSM
Product Name Prime Z890-P WIFI-CSM Gaming Desktop Motherboard
Product Line Prime
Brand Name Asus
Interfaces/Ports
HDMI Yes
HDMI Version
  • 2.1
VGA Yes
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 8
Thunderbolt Yes
Number of Thunderbolt 4 Ports 2



SKU MBA-Z890-P-CSM-PRIWF
Brand ASUS
Unit Of Measure ea
