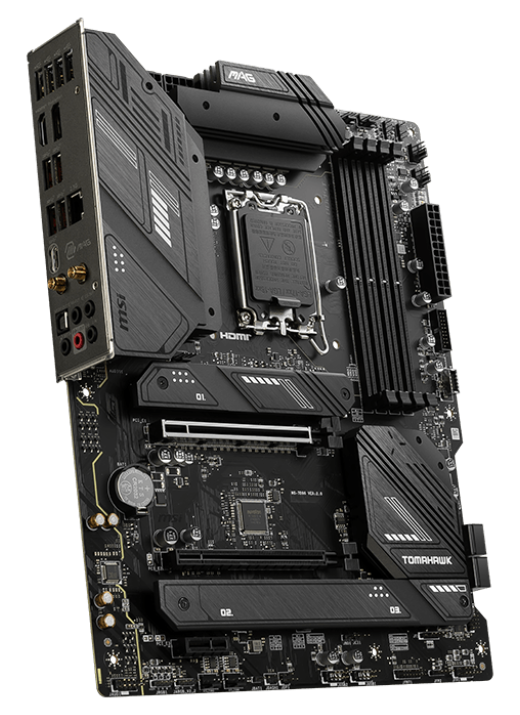

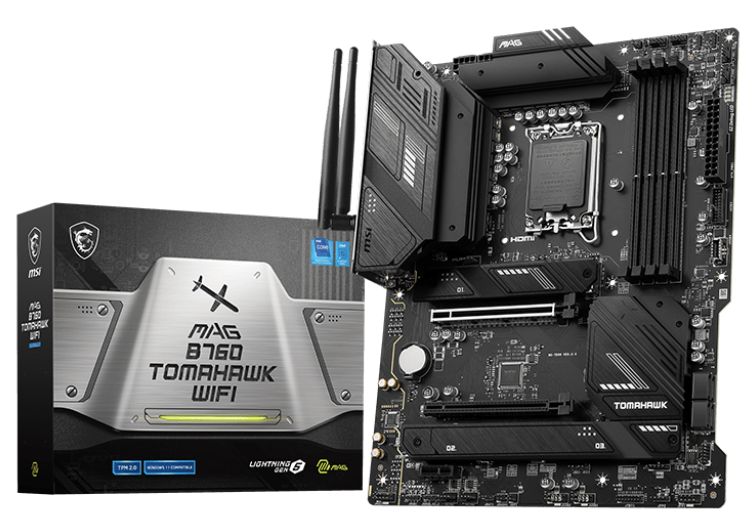

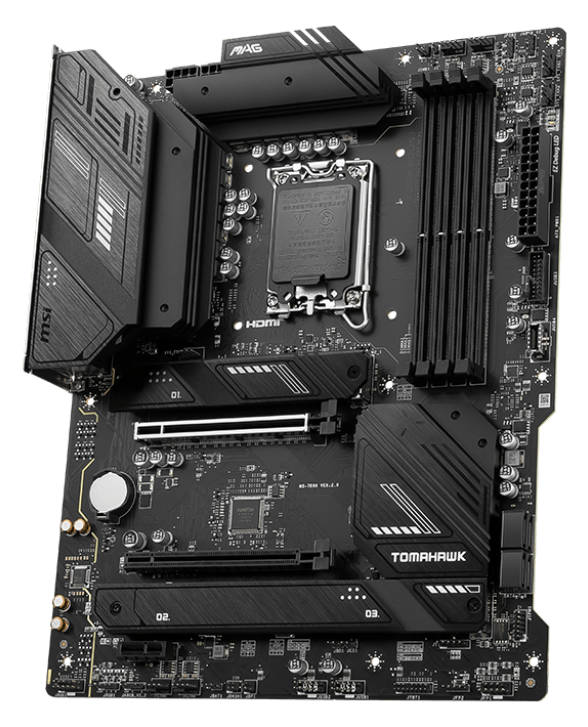

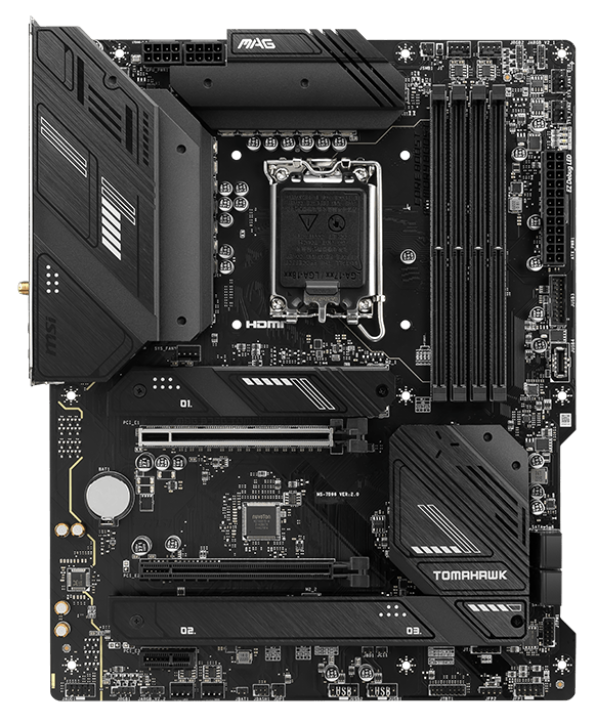

MSI MAG B760 Tomahawk Wifi LGA1700 Motherboard Overview

36 months

Specifications:

Audio
Audio Channels 7.1
Miscellaneous
Brand Compatibility Intel
Video
Onboard Video CPU Dependent Video
Physical Characteristics
Form Factor ATX
Width 304.8 mm
Depth 243.8 mm
Onboard Interfaces
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 7
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 3
I/O Controller
RAID Levels 1
  5
  10
  0
Controller Type Serial ATA/600
RAID Supported Yes
Network & Communication
Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard Bluetooth 5.3
2.5Gigabit Ethernet Yes
I/O Expansions
Number of PCI Express x1 Slots 1
Number of PCI Express x16 Slots 2
PCI Express Standard PCI Express 5.0
  PCI Express 3.0
  PCI Express 4.0
Total Number of PCI Express Slots 3
Total Number of Expansion Slots 3
General Information
Product Type Gaming Desktop Motherboard
Manufacturer Part Number MAG B760 TOMAHAWK WIFI
Manufacturer Website Address http://au.msi.com
Manufacturer MSI
Product Model B760 TOMAHAWK WIFI
Product Name MAG B760 TOMAHAWK WIFI Gaming Desktop Motherboard
Product Line MAG
Brand Name MSI

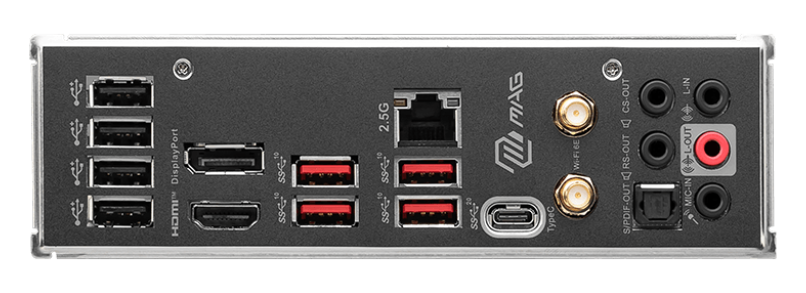

Interfaces/Ports
S/PDIF Yes
HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 9
Number of USB 2.0 Ports 4
Number of USB 3.2 Gen 2 Type-A Ports 4
Processor & Chipset
Processor Supported Core
  Pentium Gold
  Celeron
Total Processor Supported 1
Processor Socket Socket LGA-1700
Chipset Manufacturer Intel
Chipset Model B760
Processor Generation Supported 13th Gen
  12th Gen
Memory
Maximum Memory Supported 128 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor UDIMM
  DIMM
Memory Speed Supported 6200 MHz
  6400 MHz
  6600 MHz
  6800 MHz
  4800 MHz
  7000 MHz
  5000 MHz
  5200 MHz
  5400 MHz
  5600 MHz
  5800 MHz
  6000 MHz
SKU II355112
Brand MSI
Unit Of Measure ea
