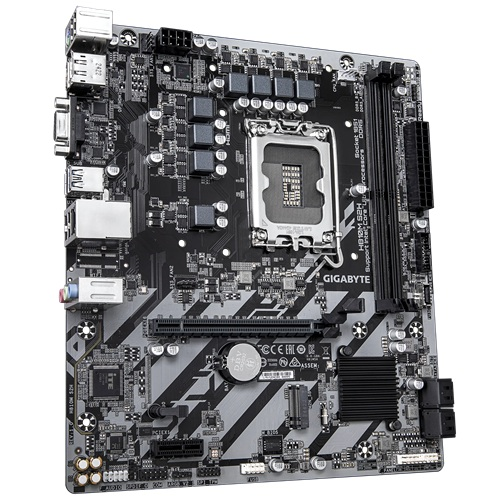

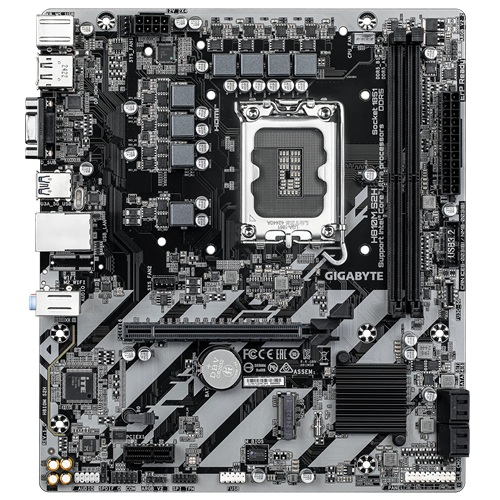

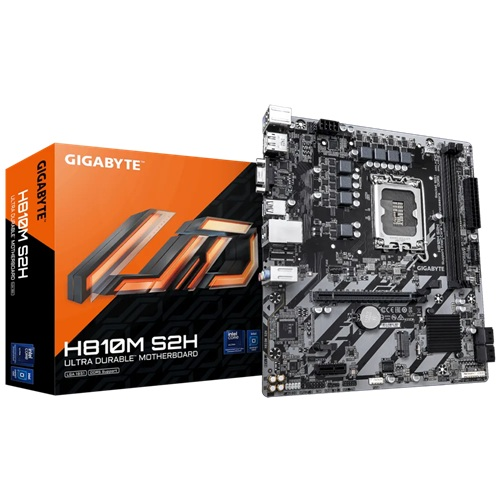

Gigabyte H810M S2H LGA 1851 ATX Motherboard

36 months

Specifications:

Model
Brand GIGABYTE
Model H810M S2H
Supported CPU
CPU Socket Type  LGA 1851
CPU Type Intel Core Ultra Processors (Series 2)
Chipsets
Chipset  Intel H810
Memory
Number of Memory Slots 2x288pin (DDR5)
Memory Standard Support for DDR5 6400/5600
Maximum Memory Supported 128GB
Channel Supported  Dual Channel
Memory Feature 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
PCI Express x1 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Devices
Serial ATA (SATA)  4 x SATA 6Gb/s
M.2 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
SATA RAID 0/1/5/10
Onboard Audio
Audio Channels  7.1 Channels
Onboard LAN
Max LAN Speed 1Gbps

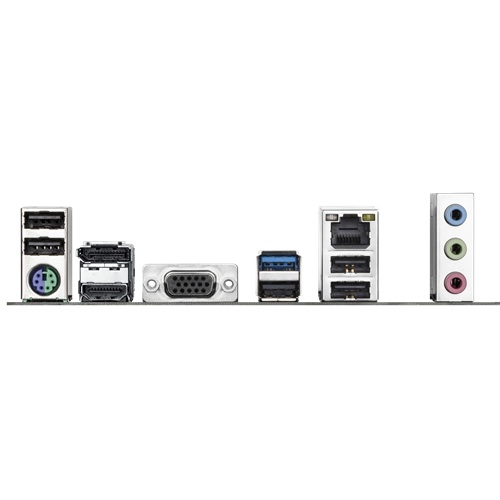

Rear Panel Ports
Back I/O Ports 1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x D-Sub port
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors 1 x CPU fan header
2 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
Software Feature
BIOS Feature 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Physical Spec
Form Factor  ATX
Dimensions (W x L) 9.6" x 8.5"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Smart Backup
SKU MBG-H810MS2H
Brand Gigabyte
Unit Of Measure ea
