Shuttle DH32U XPC Slim, Intel Tiger lake-U Pentium 7505

Shuttle DH32U XPC Slim, Intel Tiger lake-U Pentium 7505 Overview

12 months

Specifications



FORM FACTOR Shuttle 1.3L Chassis
PROCESSOR Intel Tiger lake-U Pentium 7505 15W CPU
i3 1115G4, i5 1135G7, i7 1165G7 (optional)
MEMORY 2 x 260 pin DDR4 SODIMM slots,32GB per DIMM (Max 64GB)
Dual Channel DDR4 3200 Mhz
VIDEO OUTPUT HDMI 2.0b x 4 quad independence video output
4K/2K playback (Dual channel memory recommended)
Support EDID Emulation Function(DH32UE series only)
AUDIO Realtek ALC662/897/888S
2 channel High Definition Audio
ETHERNET Intel i211*2
100Mb/s and 1Gb/s operation
Support Wake-On-LAN function
STORAGE INTERFACE SATA 6.0Gb/s interface
ONBOARD CONNECTORS (1) SATA power connector
(2) 4 pin fan connectors
(1) Auto power on header
(1) VGA
(1) RS232
(1) RS232/422/485
(1) External 4 pin header (Power/Clear/CMOS/5V/GND
FRONT PANEL (4) USB 3.2 Gen2 ports
(1) Microphone-In
(1) Earphone-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
(1) SD Card reader

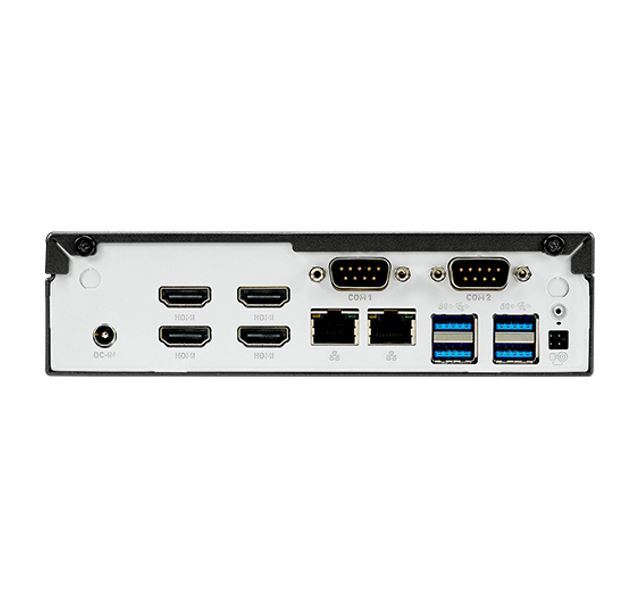

BACK PANEL (2) RJ45 Gigabit LAN port
(4) HDMI port
(4) USB 3.2 Gen1 ports
(1) RS232
(1) RS232/422/485
(1) External power on/Clear CMOS header
(1) Kensington lock
(2) Wireless Antenna fixture
(1)DC in
DRIVE BAYS (1) 2.5" HDD / SSD bay
DIMENSIONS 190(L) x 165(W) x 43(H) mm
Dimension drawing
POWER 90W Power Adapter
Input:100- 240V AC
Output: 19V 4.7A DC
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
Power cord
Screws
EXPANSION SLOT (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
OS SUPPORT Windows 10 64 bit O.S
Linux
REMARK *RS232 ports support totally 500mA, 0/5/12V output. Voltage setting please refer to Quick Guide.
GRAPHICS Intel Xe DG1 GPU
Execution Units (EUs)
Celeron/Pentium/I3:48 EUs
I5: 80 EUs
I7: 96 EUs
OPERATING TEMPERATURE 0℃~50℃
