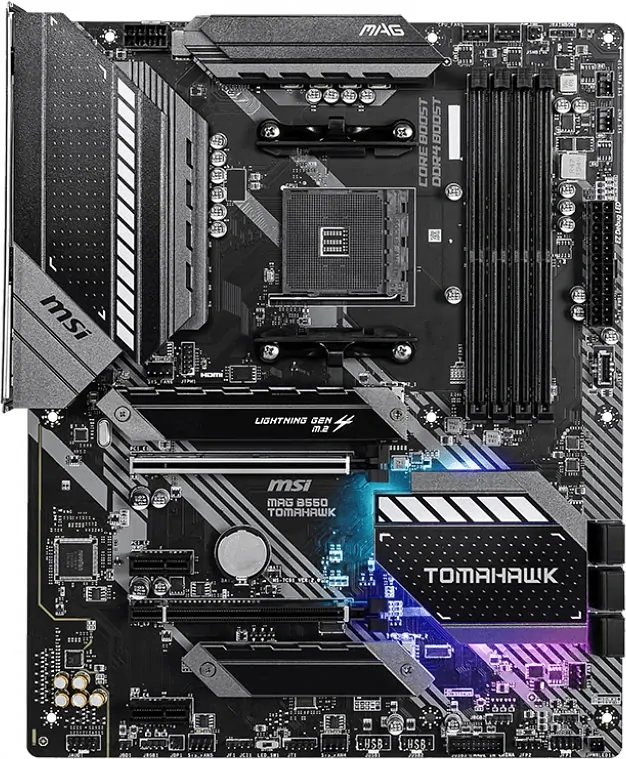

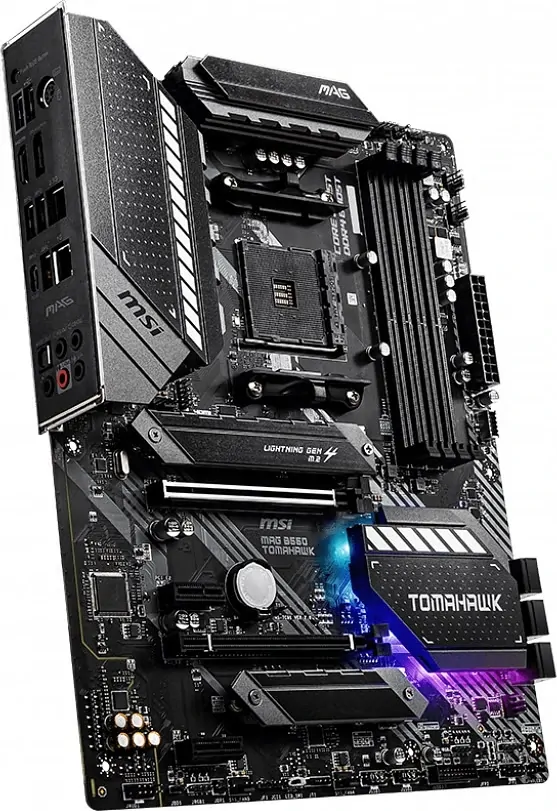

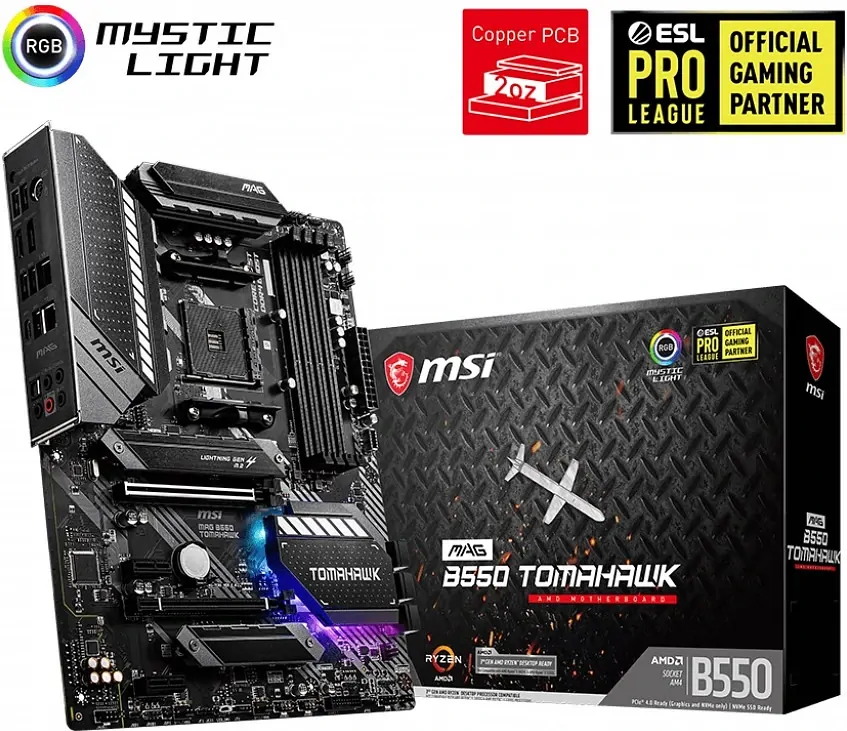

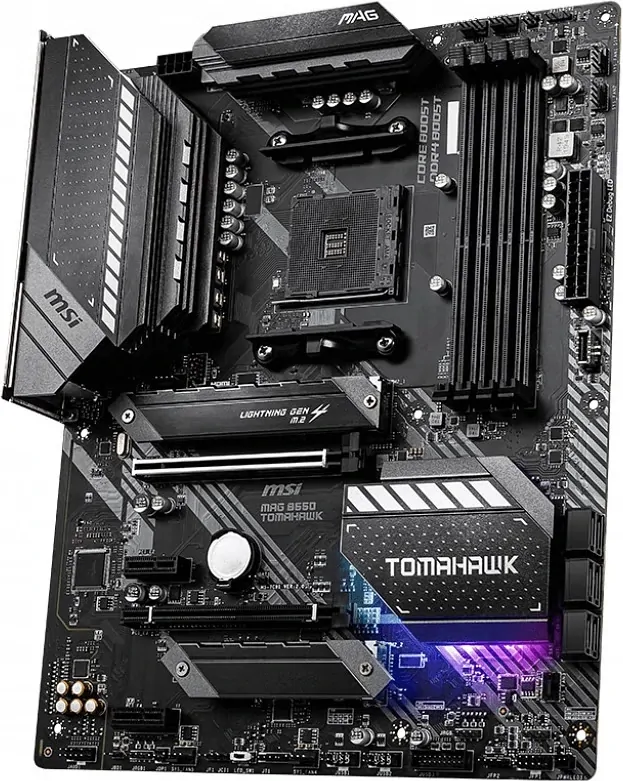

MSI MAG B550 TOMAHAWK AM4 ATX Motherboard Overview

36 months

Specifications:

Audio
Audio Channels 7.1
Video
Onboard Video CPU Dependent Video
Physical Characteristics
Form Factor ATX
Width 304.8 mm
Depth 243.8 mm
I/O Expansions
Number of PCI Express x1 Slots 2
Number of PCI Express x16 Slots 2
Total Number of PCI Express Slots 4
Total Number of Expansion Slots 4
Onboard Interfaces
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 7
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 2
I/O Controller
RAID Levels 1
  0
  10
Controller Type Serial ATA/600
RAID Supported Yes
Network & Communication
Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard Bluetooth 5.2
2.5Gigabit Ethernet Yes
General Information
Product Type Desktop Motherboard
Manufacturer Part Number MAGB550TOMAHAWKMAXWIFI
Manufacturer Website Address http://au.msi.com
Manufacturer MSI
Product Model B550 TOMAHAWK MAX WIFI
Product Name B550 TOMAHAWK MAX WIFI Desktop Motherboard
Product Line MAG
Brand Name MSI
Processor & Chipset
Processor Supported Ryzen
  Ryzen 3
  Ryzen 5
Total Processor Supported 1
Processor Socket Socket AM4
Chipset Manufacturer AMD
Chipset Model B550
Multi GPU Supported CrossFire

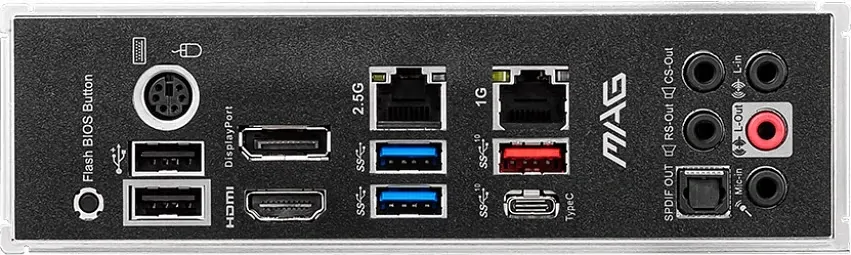

Interfaces/Ports
S/PDIF Yes
HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 6
Number of USB 2.0 Ports 2
Number of USB 3.2 Gen 2 Type-C Ports 1
Number of USB 3.2 Gen 1 Type-A Ports 2
Number of USB 3.2 Gen 2 Type-A Ports 1
Memory
Maximum Memory Supported 128 GB
Memory Technology DDR4 SDRAM
Number of Memory Slots 4
Memory Form Factor DIMM
  UDIMM
Memory Speed Supported 4800 MHz
  4866 MHz
  5000 MHz
  5100 MHz
  2400 MHz
  2666 MHz
  2933 MHz
  3000 MHz
  2133 MHz
  3200 MHz
  3300 MHz
  3333 MHz
  3400 MHz
  3466 MHz
  3600 MHz
  3733 MHz
  3866 MHz
  4000 MHz
  4133 MHz
  4200 MHz
  4266 MHz
  4300 MHz
  4400 MHz
  4533 MHz
  4600 MHz

From the manufacturer

Warranty & Shipping Dimensions



SKU 5684330
Brand MSI
Unit Of Measure ea
