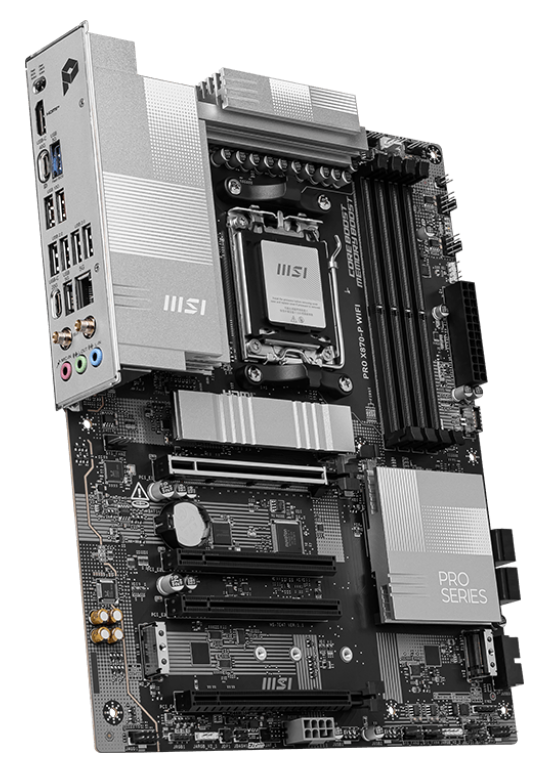

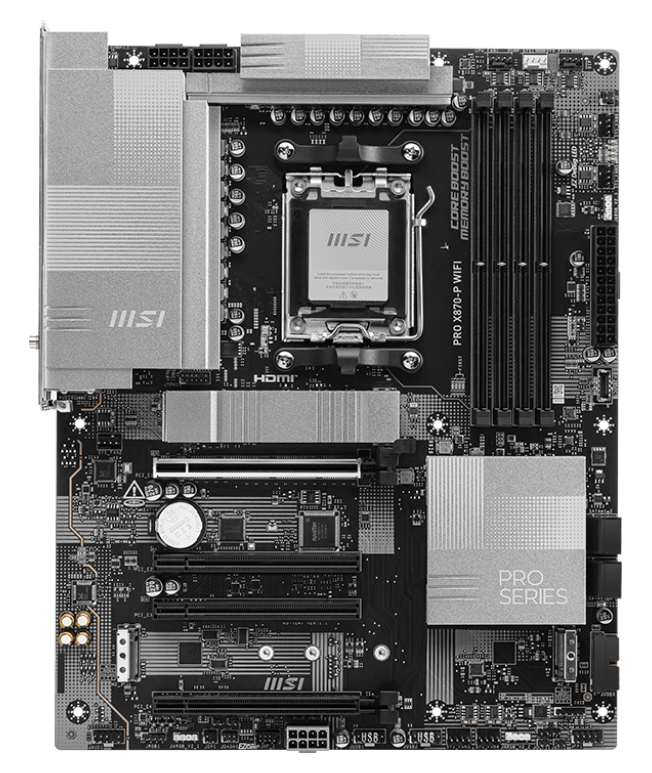

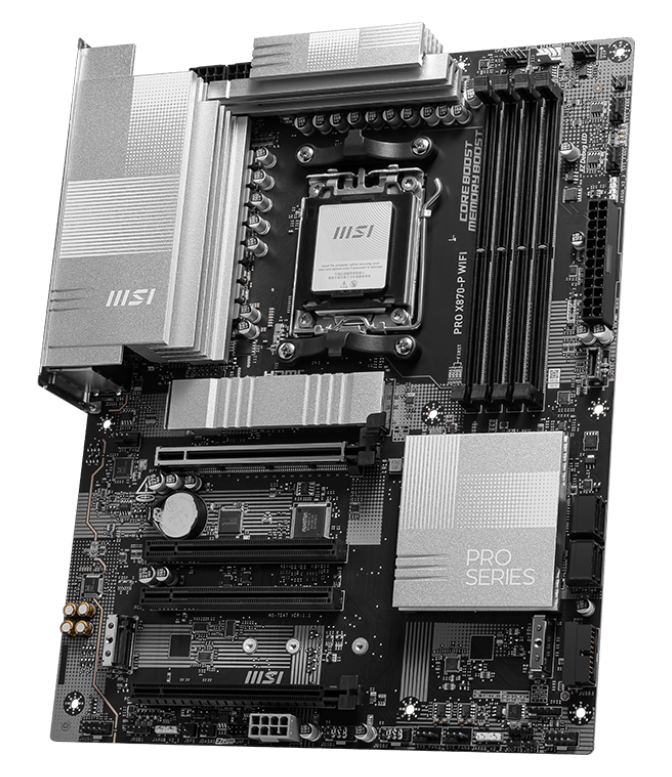

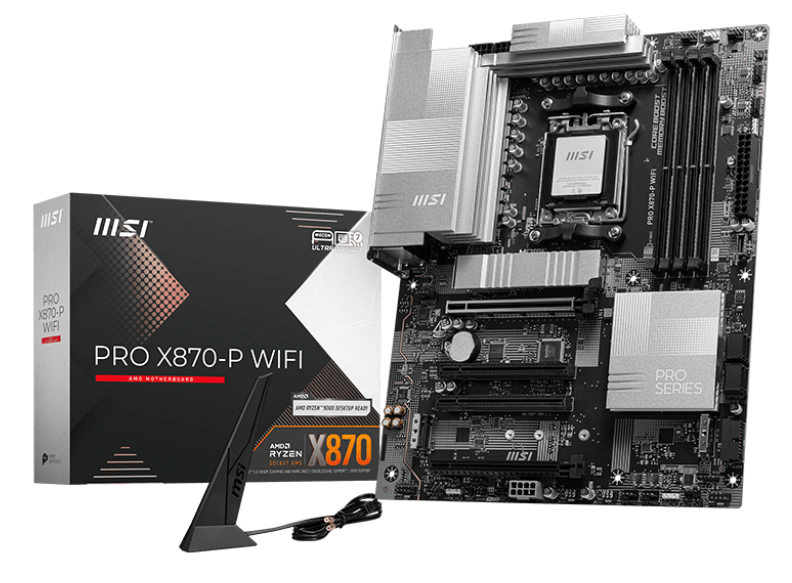

MSI PRO X870-P WIFI ATX Motherboard Overview

36 months

Features:

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
  • Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material

Specifications:

Audio
Audio Channels 7.1
Technical Information
AI-powered Yes
Video
Onboard Video CPU Dependent Video
I/O Controller
RAID Levels 0
  1
RAID Supported Yes
Onboard Interfaces
Total Number of Onboard USB Ports 7
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 3
Network & Communication
Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax/be
Bluetooth Standard Bluetooth 5.4
I/O Expansions
Number of PCI Express x1 Slots 2
Number of PCI Express x16 Slots 2
PCI Express Standard PCI Express 3.0
  PCI Express 4.0
  PCI Express 5.0
Total Number of PCI Express Slots 4
Total Number of Expansion Slots 4

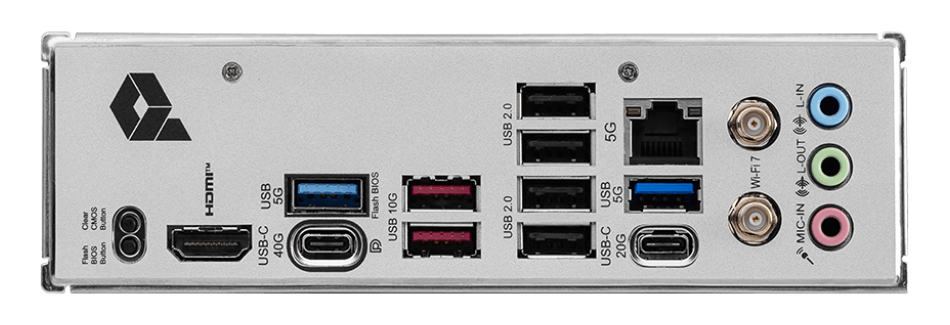

Interfaces/Ports
HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 10
Number of USB 2.0 Ports 4
Thunderbolt Yes
Physical Characteristics
Form Factor ATX
Width 304.8 mm
Depth 243.8 mm
Product Color Silver
  Black
  White
Color Family Multicolor
Processor & Chipset
Processor Supported Ryzen 7
  Ryzen 9
  Ryzen 8
Total Processor Supported 1
Processor Socket Socket AM5
Chipset Manufacturer AMD
Chipset Model X870
General Information
Product Type Gaming Desktop Motherboard
Manufacturer Part Number PRO X870-P WIFI
Manufacturer Website Address https://au.msi.com/
Manufacturer MSI
Product Model X870-P WIFI
Product Name PRO X870-P WIFI Gaming Desktop Motherboard
Product Series PRO
Brand Name MSI
Memory
Error Checking ECC
Maximum Memory Supported 256 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor UDIMM
  DIMM
Memory Speed Supported 6200 MHz
  6400 MHz
  6600 MHz
  6800 MHz
  7000 MHz
  7200 MHz
  7400 MHz
  7600 MHz
  7800 MHz
  8000 MHz
  6000 MHz
  5800 MHz
  5600 MHz
  5400 MHz
  4800 MHz
  5000 MHz
  5200 MHz
