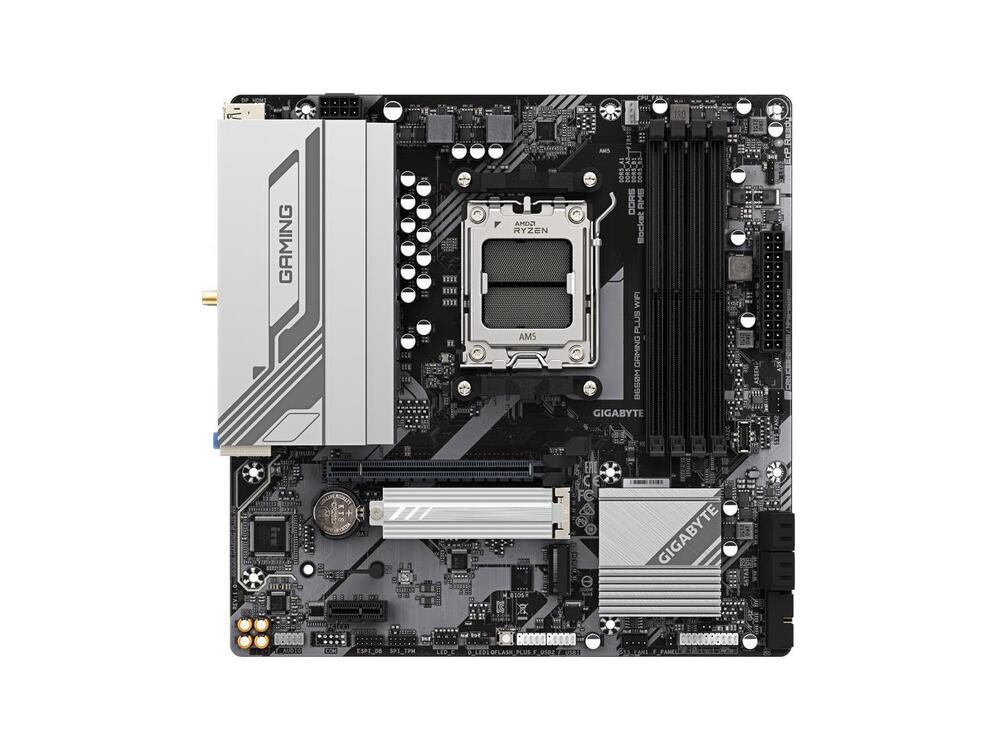

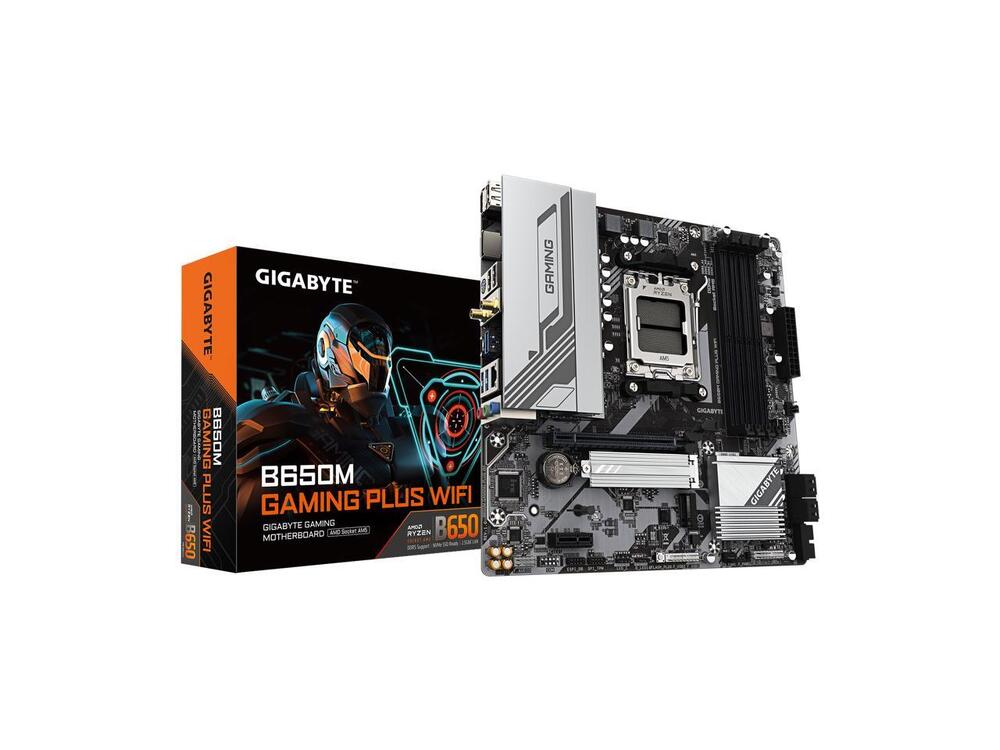

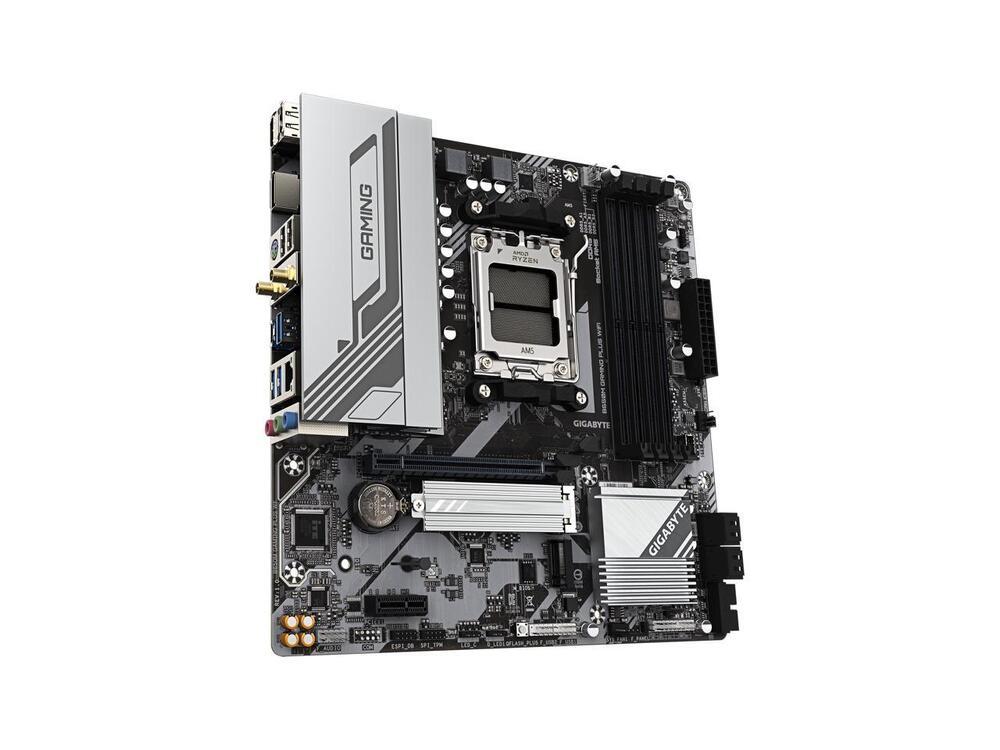

GIGABYTE B650M GAMING PLUS WIFI Motherboard

B650M GAMING PLUS WIFI

  • AMD Socket AM5: Supports AMD Ryzen™ 7000 Series/ Ryzen™ 8000 Series Processors
  • Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector
  • EZ-Latch: PCIe x16 Slot with Quick Release Design
  • Fast Networks: Wi-Fi 802.11ax & 2.5GbE LAN
  • Extended Connectivity: 2*DP, HDMI
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
GIGABYTE B650M GAMING PLUS WIFI Motherboard
GIGABYTE B650M GAMING PLUS WIFI Motherboard

Durable Performance

GIGABYTE B650M GAMING PLUS WIFI Motherboard

Future Connectivity

GIGABYTE B650M GAMING PLUS WIFI Motherboard

Easy Friendly

GIGABYTE B650M GAMING PLUS WIFI Motherboard

B650M

GAMING PLUS WIFI

GIGABYTE B650M GAMING PLUS WIFI Motherboard

OVERVIEW

OVERVIEW

GIGABYTE B650M GAMING PLUS WIFI Motherboard
GIGABYTE B650M GAMING PLUS WIFI Motherboard

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

GIGABYTE B650M GAMING PLUS WIFI Motherboard

Digital VRM Design

5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE B650M GAMING PLUS WIFI Motherboard

EXPO & XMP Support

DDR5 EXPO & XMP Overclocking Up to 7600 and Beyond*

GIGABYTE B650M GAMING PLUS WIFI Motherboard

EXPO & XMP Support

Unlock DDR5 Voltage

GIGABYTE B650M GAMING PLUS WIFI Motherboard

EXPO & XMP Support

GIGABYTE Exclusive DDR5 Circuit Design

GIGABYTE B650M GAMING PLUS WIFI Motherboard

EXPO & XMP Support

Shielded Memory Routing

Note: The picture is for reference and may vary by mode.

GIGABYTE B650M GAMING PLUS WIFI Motherboard

EXPO & XMP Support

EXPO and XMP Dual Support

GIGABYTE B650M GAMING PLUS WIFI Motherboard

EXPO & XMP Support

DDR5 Auto Booster

GIGABYTE B650M GAMING PLUS WIFI Motherboard

EXPO & XMP Support

AMD EXPO™ and Intel® XMP 3.0 User Profile

  • SPD Re-defined or retrieve from database
  • Performance Simulation
  • Save/Load Profile
  • Overclocked Performance
  • Profile Clearance
GIGABYTE B650M GAMING PLUS WIFI Motherboard

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

GIGABYTE B650M GAMING PLUS WIFI Motherboard

802.11ax Wi-Fi 6E

The Wireless solution 802.11ax Wi-Fi enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

GIGABYTE B650M GAMING PLUS WIFI Motherboard

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

GIGABYTE B650M GAMING PLUS WIFI Motherboard

PCIe 4.0 Hardware Design

GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

* Photo for reference only.

GIGABYTE B650M GAMING PLUS WIFI Motherboard

Hi-Fi Audio

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

GIGABYTE B650M GAMING PLUS WIFI Motherboard

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ-Latch

Unlock the latch of the PCIe slot easily when removing the graphics card in the PCIe slot.

GIGABYTE B650M GAMING PLUS WIFI Motherboard

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

  • STEP 1: Plug 24pin & 8pin power supply cable on motherboard
  • STEP 2: Download motherboard BIOS file and rename to ""gigabyte.bin"", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
  • STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
GIGABYTE B650M GAMING PLUS WIFI Motherboard

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.



Cooling Features

  • High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.
  • Precision Control: Multiple temperature/fan speed control points for precise fan curve.
  • Dual Curve Mode: Slope/Stair dual mode for different user scenario.
  • Fan Stop: Fan can stop completely below users' specified temperature point.
GIGABYTE B650M GAMING PLUS WIFI Motherboard

Smart Fan 6 BIOS UI

Safer and more convenient when transitioning between shots of varying distance and composition.

  1. Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
  2. Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
  3. Manual Input: For advanced users, we provide fan speed manual input for more precise control.
  4. EZ Tuning: Users can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
  5. Fan Curve Profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.

Note: The picture is for reference and may vary by model.

GIGABYTE B650M GAMING PLUS WIFI Motherboard

GIGABYTE Control Center

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

  • Unified software platform for all Gigabyte supported products
  • Intuitive user interface for an eased experience
  • Modularized control components only for installed hardware
  • Auto update function to keep system up to date and support future products
GIGABYTE B650M GAMING PLUS WIFI Motherboard
GIGABYTE B650M GAMING PLUS WIFI Motherboard
GIGABYTE B650M GAMING PLUS WIFI Motherboard


36 months


Brand GIGABYTE
Model B650M GAMING PLUS WIFI
Supported CPU
CPU Socket Type  AM5
CPU Type Ryzen 7000 Series / Ryzen 8000 Series
Chipsets
Chipset  AMD B650
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400
Maximum Memory Supported 192GB
Channel Supported  Dual Channel
Memory Feature 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme
Memory Profile (XMP) memory modules
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
PCI Express x1 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
- AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
SATA RAID RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Additional RAID Controller RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Onboard Audio
Audio Channels  7.1 Channels
Onboard LAN
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 802.11 ax
Bluetooth BLUETOOTH 5.3

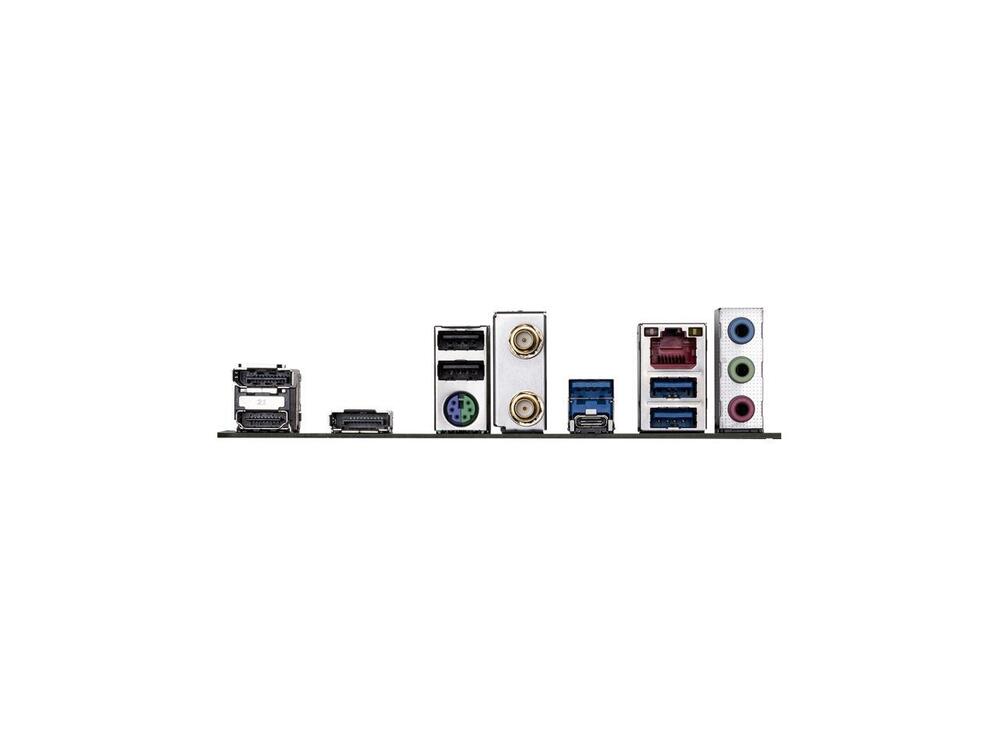

Rear Panel Ports
Back I/O Ports 1 x PS/2 keyboard/mouse port
1 x USB Type-C port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
2 x DisplayPorts
2 x SMA antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Windows 11 Compatibility
Windows 11 Support for Windows 11 64-bit
Support for Windows 10 64-bit
Features
Features Support for GIGABYTE Control Center
Support for Q-Flash
Support for Q-Flash Plus
SKU MBG-B650MGAMINGPLWF
Brand Gigabyte
Unit Of Measure ea
