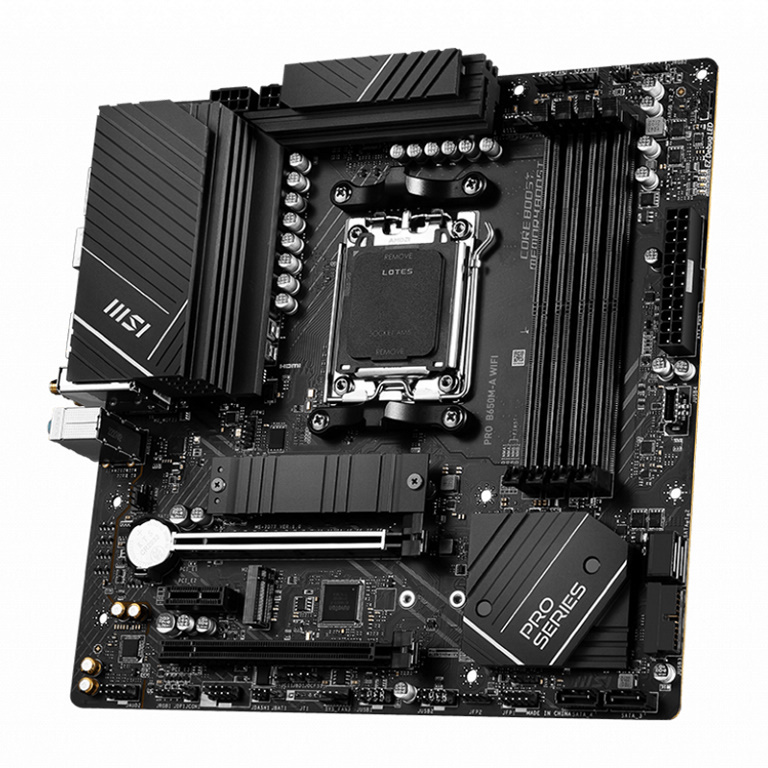

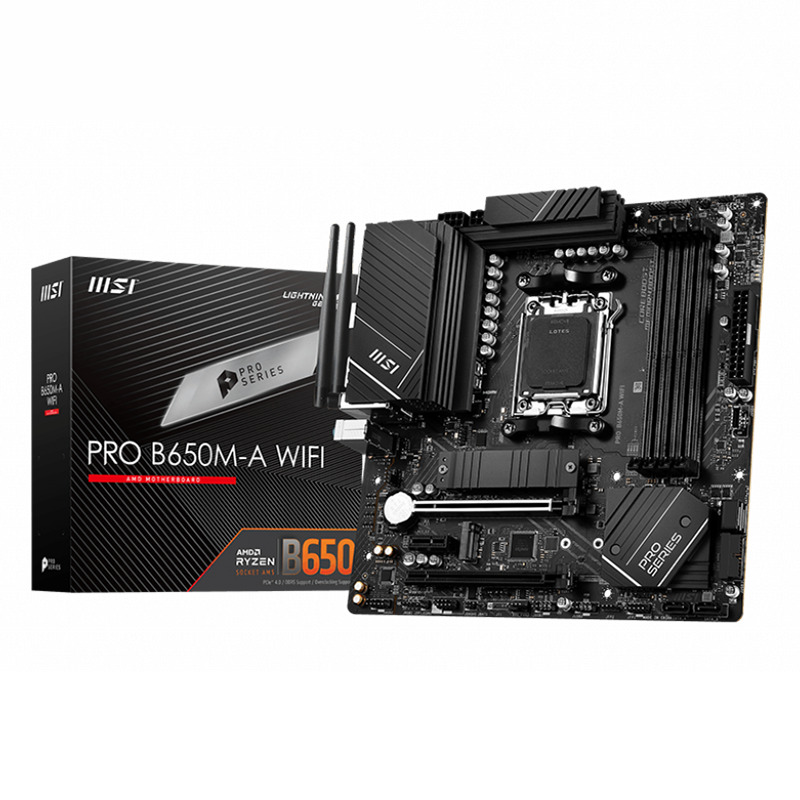

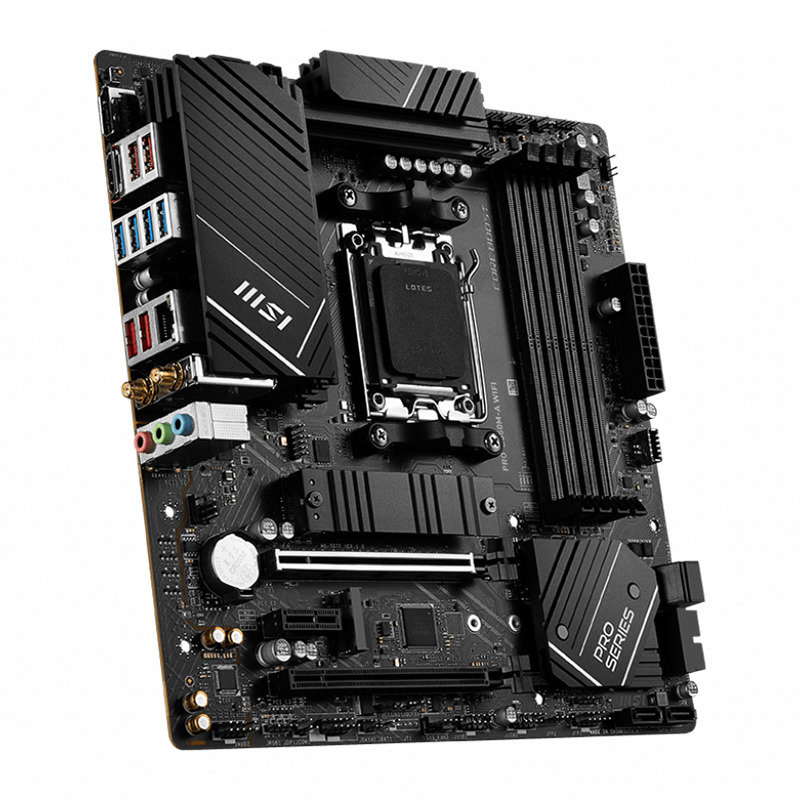

MSI PRO B650M-A WIFI AM5 mATX Motherboard

36 months

Features

  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Technical Specs

Audio

Audio Channels 7.1

Miscellaneous

Brand Compatibility AMD

Video

Onboard Video CPU Dependent Video

Physical Characteristics

Form Factor Micro ATX
Width 243.8 mm
Depth 243.8 mm

Onboard Interfaces

Number of SATA Interfaces 4
Total Number of Onboard USB Ports 7
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 2

I/O Controller

RAID Levels 10
1
0
Controller Type Serial ATA/600
RAID Supported Yes

Processor & Chipset

Processor Supported Ryzen 7
Total Processor Supported 1
Processor Socket Socket AM5
Chipset Manufacturer AMD
Chipset Model B650

Memory

Maximum Memory Supported 128 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor DIMM
UDIMM
Memory Speed Supported 5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
4800 MHz
5000 MHz

I/O Expansions

Number of PCI Express x1 Slots 1
Number of Total Expansion Slots 3
Number of PCI Express x16 Slots 2
PCI Express Standard PCI Express 4.0
PCI Express 3.0
Total Number of PCI Express Slots 3

Network & Communication

Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard Bluetooth 5.2
2.5Gigabit Ethernet Yes

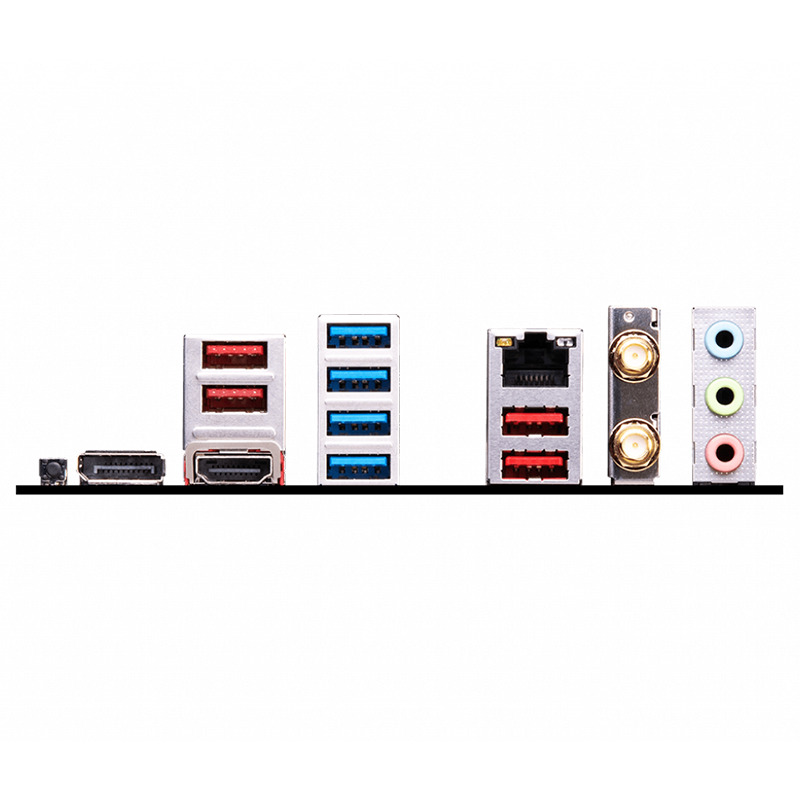

Interfaces/Ports

HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 8
Number of USB 3.2 Gen 1 Type-A Ports 4
Number of USB 3.2 Gen 2 Type-A Ports 4

General Information

Product Type Gaming Desktop Motherboard
Manufacturer Part Number PRO B650M-A WIFI
Manufacturer Website Address http://au.msi.com
Manufacturer MSI
Product Model Pro B650M-A WIFI
Product Name PRO B650M-A WIFI Gaming Desktop Motherboard
Product Series PRO
Brand Name MSI
SKU MBMB650M-A-W
Brand MSI
Unit Of Measure ea
