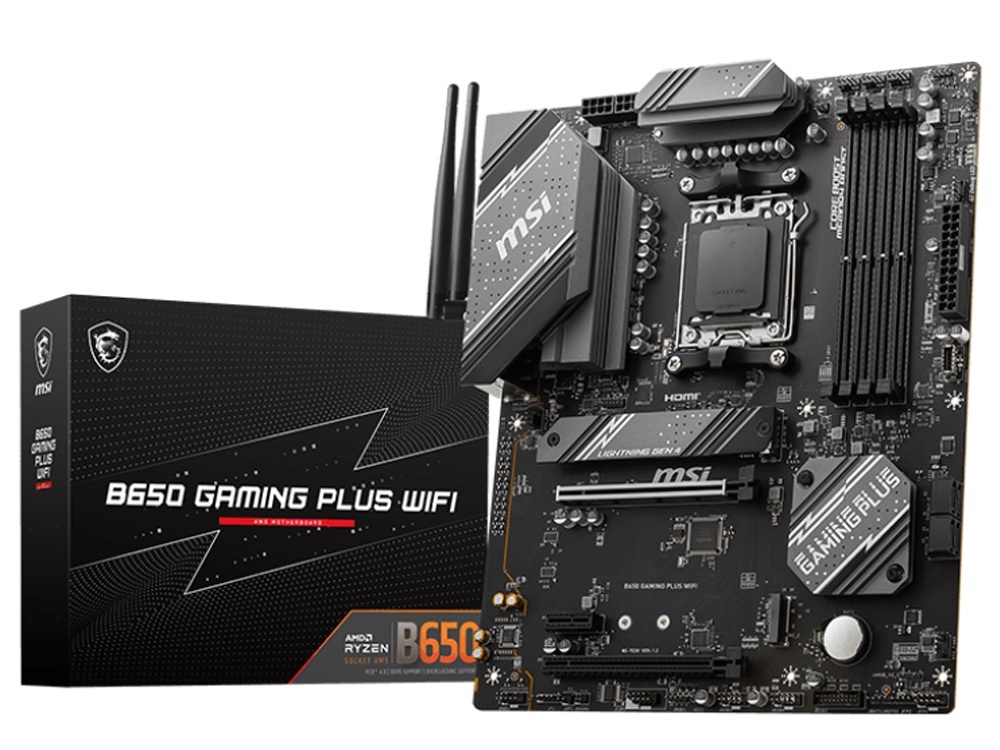

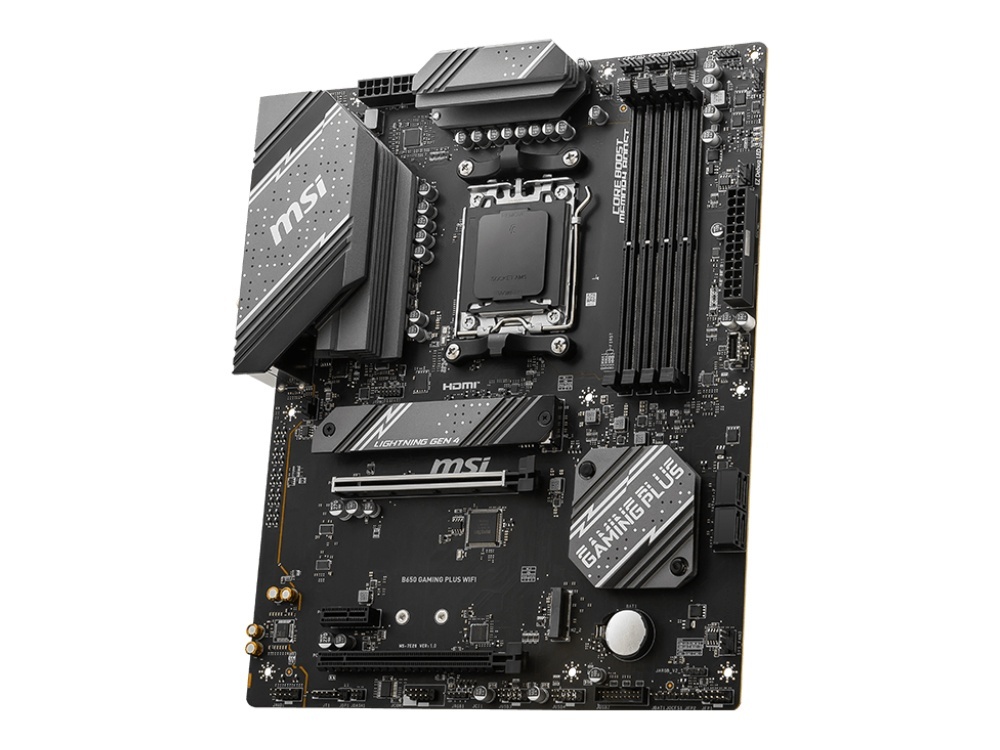

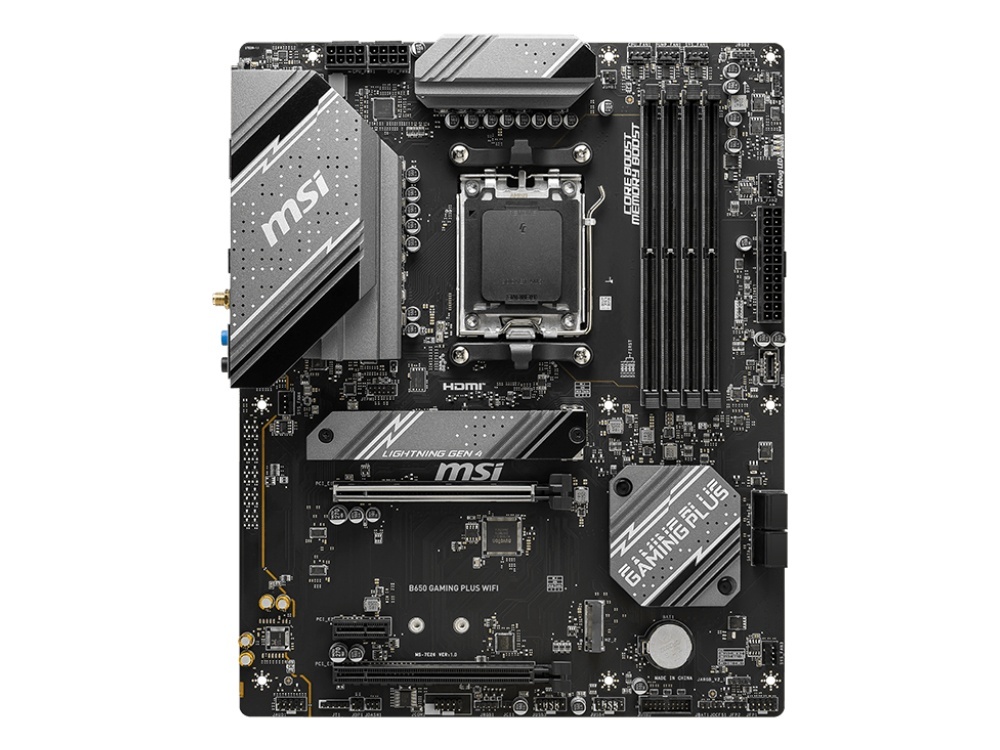

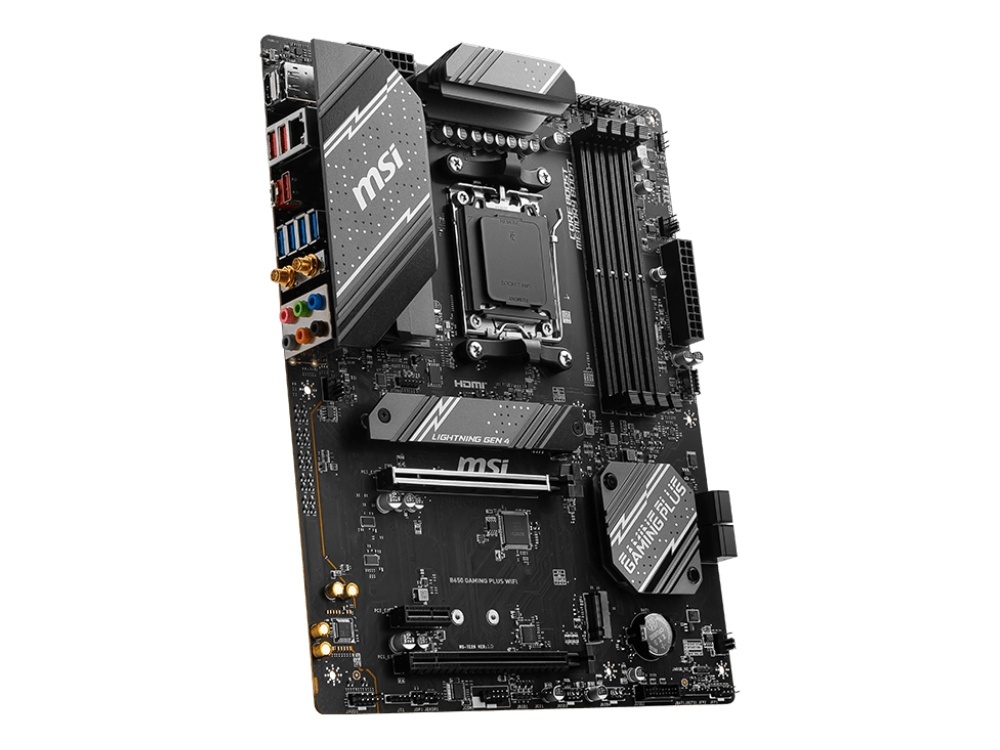

MSI MAG B650 Gaming Plus WIFI AM5 DDR5 ATX Motherboard Overview

36 months

Features

  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
  • Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Technical Specs

Audio

Audio Channels 7.1

Miscellaneous

Brand Compatibility AMD

Video

Onboard Video CPU Dependent Video

Physical Characteristics

Form Factor Micro ATX
Width 304.8 mm
Depth 243.8 mm

I/O Controller

RAID Levels 0
1
Controller Type Serial ATA/600
RAID Supported Yes

Onboard Interfaces

Number of SATA Interfaces 4
Total Number of Onboard USB Ports 7
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 2

Processor & Chipset

Processor Supported Ryzen 7
Total Processor Supported 1
Processor Socket Socket AM5
Chipset Manufacturer AMD
Chipset Model B650

Memory

Maximum Memory Supported 192 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor DIMM
UDIMM
Memory Speed Supported 6000 MHz
4800 MHz
6400 MHz
6200 MHz
5000 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz

I/O Expansions

Number of PCI Express x1 Slots 1
Number of Total Expansion Slots 3
Number of PCI Express x16 Slots 2
PCI Express Standard PCI Express 3.0
PCI Express 4.0
Total Number of PCI Express Slots 3

Network & Communication

Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard Bluetooth 5.3
2.5Gigabit Ethernet Yes

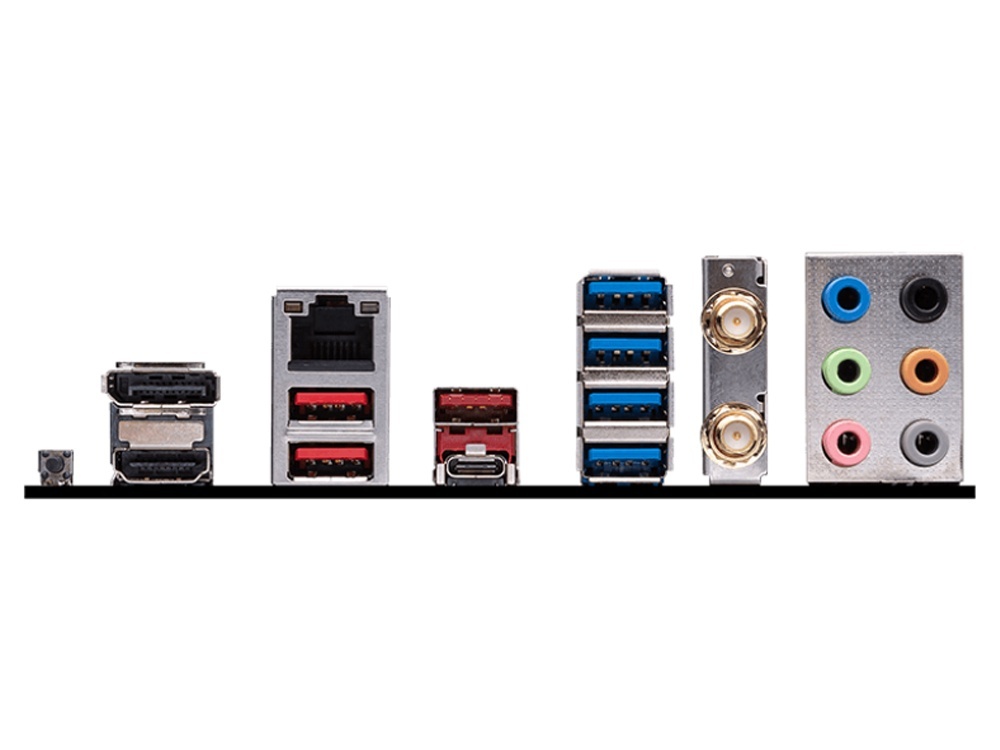

Interfaces/Ports

HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 8
Number of USB 3.2 Gen 1 Type-A Ports 4
Number of USB 3.2 Gen 2 Type-A Ports 3

General Information

Product Type Gaming Desktop Motherboard
Manufacturer Part Number MAGB650GAMINGPLUSWIFI
Manufacturer Website Address http://au.msi.com
Manufacturer MSI
Product Model B650 GAMING PLUS WIFI
Product Name MAG B650 GAMING PLUS WIFI Gaming Desktop Motherboard
Product Line MAG
Brand Name MSI
SKU MBMB650G-P-WIFI
Brand MSI
Shipping Weight 1.5000kg
Unit Of Measure ea
