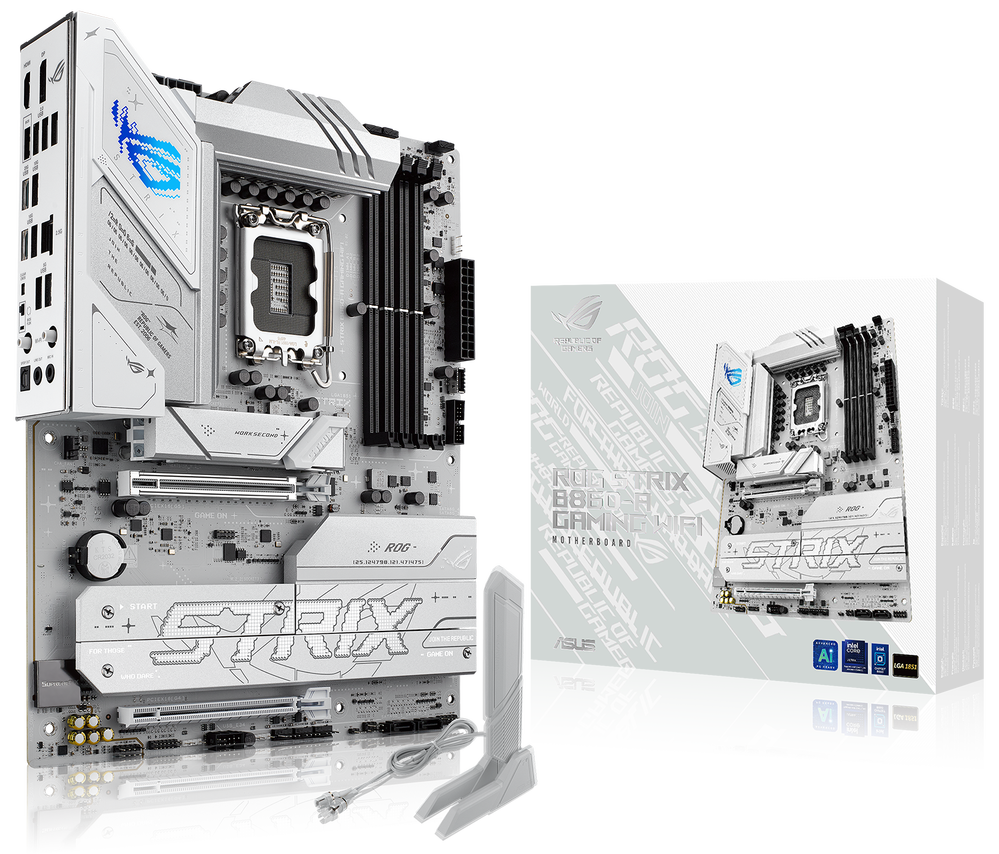

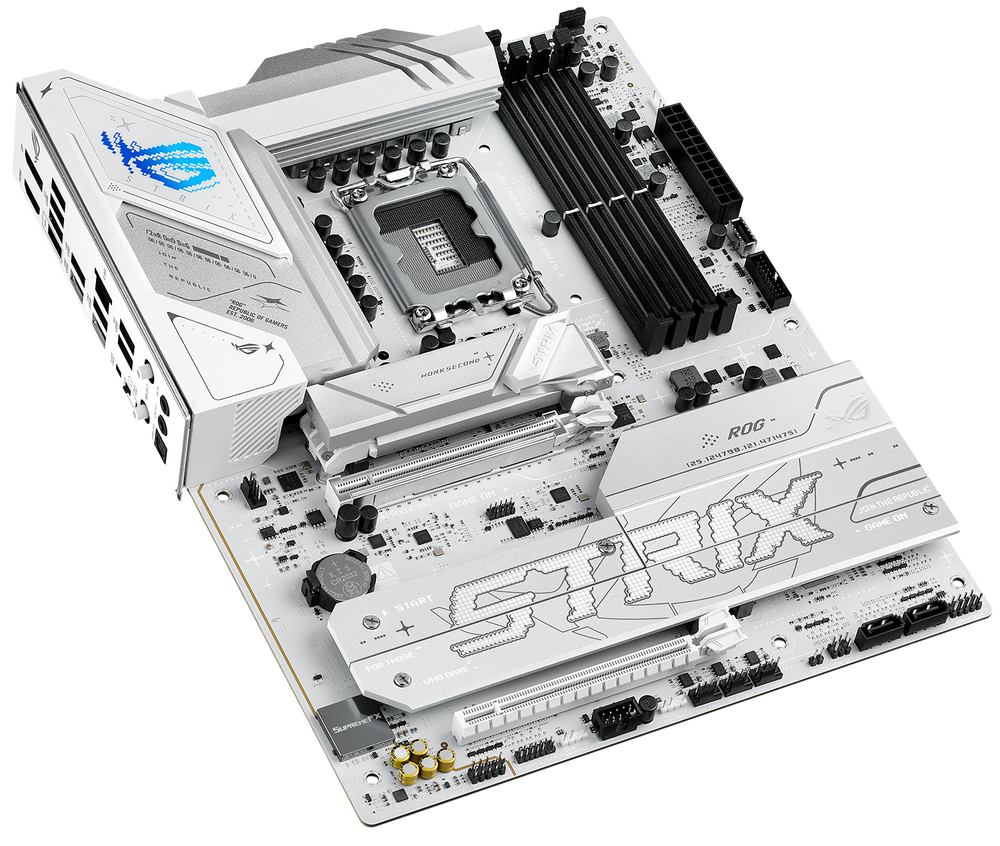

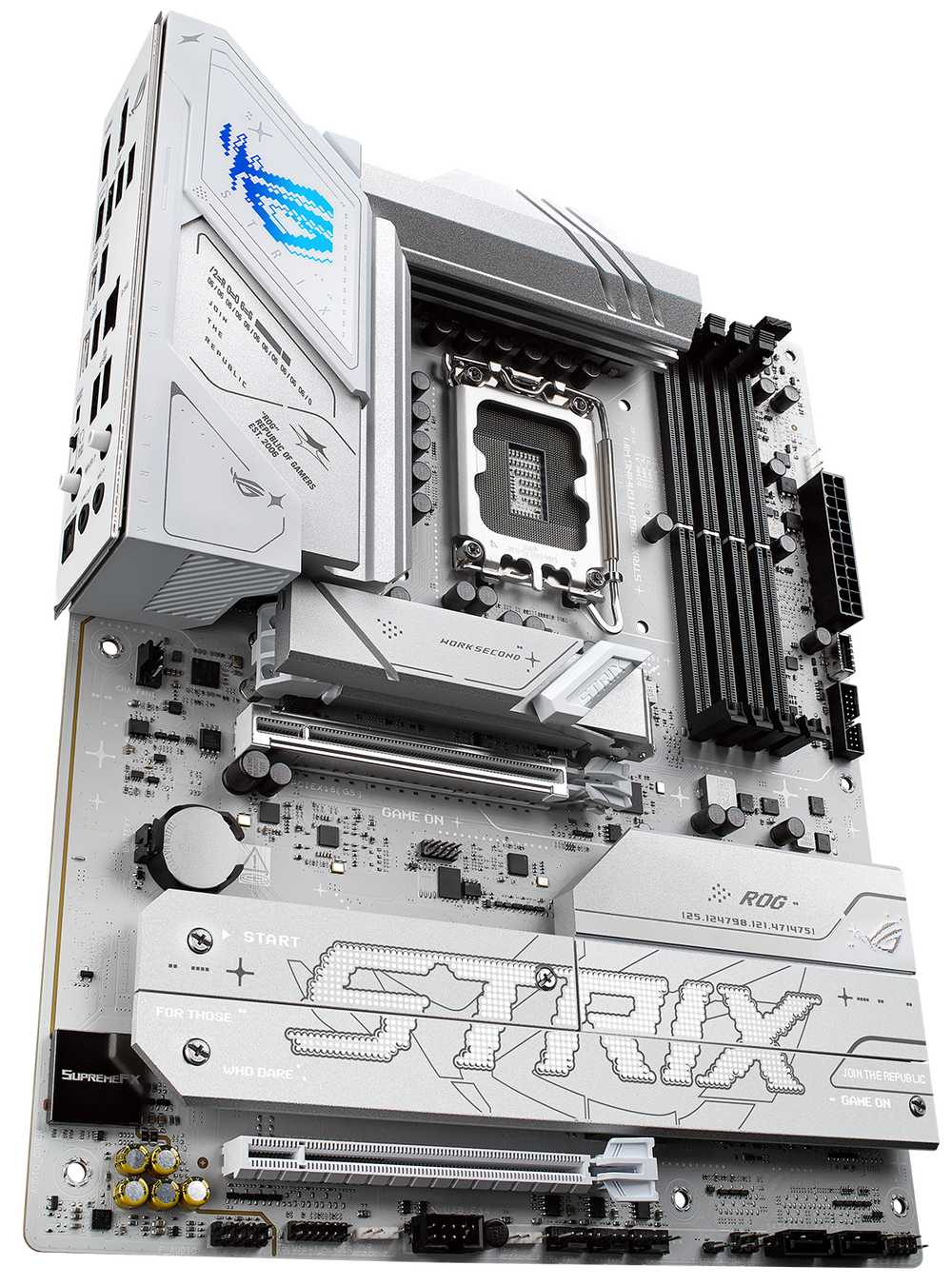

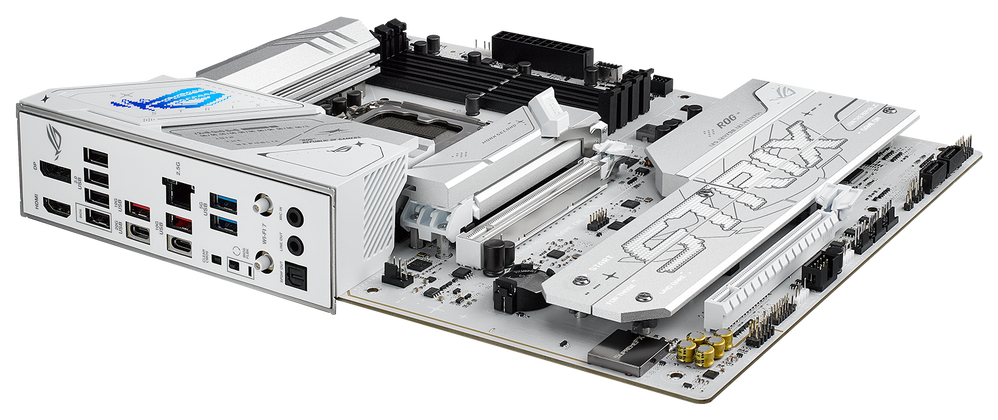

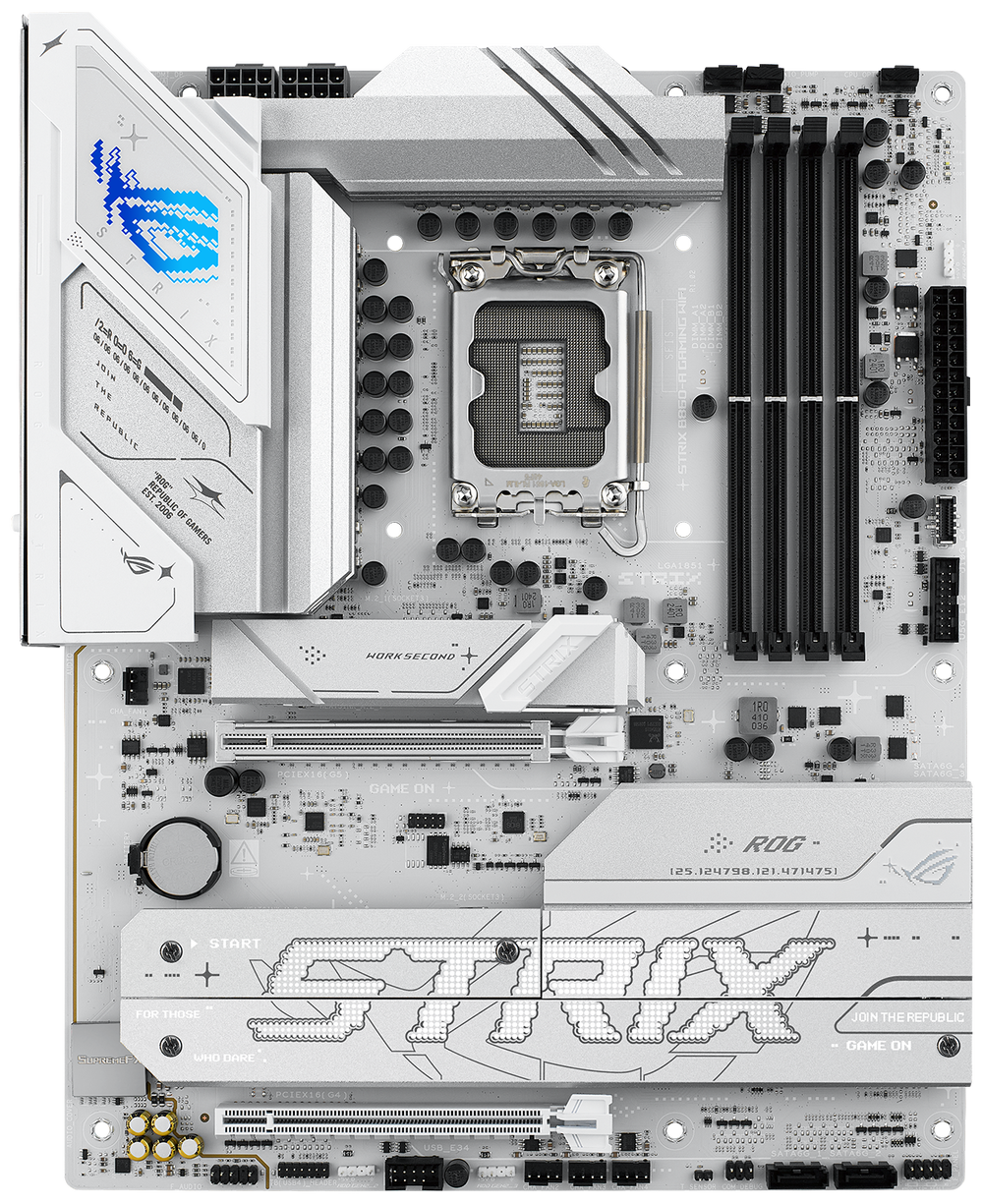

ASUS ROG STRIX B860-A GAMING WIFI LGA1851 ATX Motherboard Overview

36 months

SPECIFICATIONS:

Audio
Audio Channels 7.1
Technical Information
AI-powered Yes
Video
Onboard Video CPU Dependent Video
Miscellaneous
Package Contents
  • STRIX B860-A GAMING WIFI Gaming Desktop Motherboard
  • 2 x SATA 6Gb/s cables
  • 1 x ASUS WiFi Q-Antenna
  • 1 x Cable ties package
  • 1 x M.2 Q-Latch
  • 1 x M.2 Q-Slide
  • 1 x ROG key chain
  • 1 x ROG Strix stickers
  • 4 x M.2 rubbers
  • 1 x Quick start guide
Brand Compatibility Intel
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Onboard Interfaces
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 5
Number of Onboard USB 2.0 Ports 2
Number of M.2 Interfaces 4
I/O Expansions
Number of PCI Express x16 Slots 2
PCI Express Standard PCI Express 4.0
  PCI Express 5.0
Total Number of PCI Express Slots 2
Total Number of Expansion Slots 2
Physical Characteristics
Form Factor ATX
Width 305 mm
Depth 244 mm
Product Color White
Color Family White
Processor & Chipset
Processor Supported Core Ultra
Total Processor Supported 1
Processor Socket Socket LGA-1851
Chipset Manufacturer Intel
Chipset Model B860
I/O Controller
RAID Levels 1
  5
  10
  0
Controller Type Serial ATA/600
RAID Supported Yes
Network & Communication
Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11be
Bluetooth Standard Bluetooth 5.4
2.5Gigabit Ethernet Yes
Memory
Maximum Memory Supported 256 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor DIMM
  UDIMM
Memory Speed Supported 9066 MHz
  8600 MHz
General Information
Product Type Gaming Desktop Motherboard
Manufacturer Part Number ROG STRIX B860-A GAMING WIFI
Manufacturer Website Address http://www.asus.com/au
Manufacturer ASUS Computer International
Product Model B860-A GAMING WIFI
Product Name STRIX B860-A GAMING WIFI Gaming Desktop Motherboard
Product Line Strix
Brand Name Asus ROG

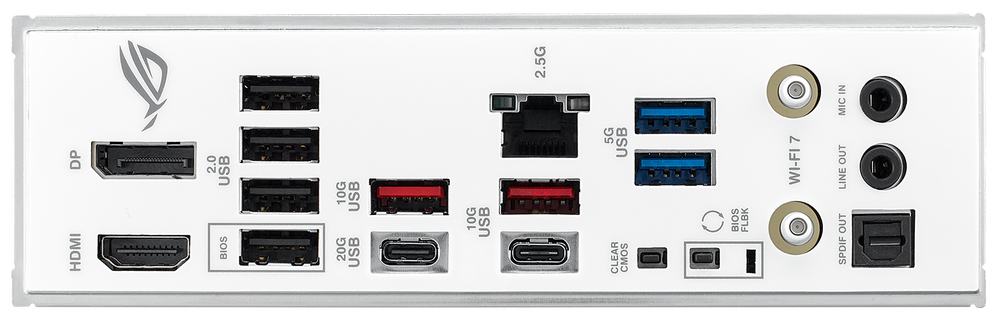

Interfaces/Ports
S/PDIF Yes
HDMI Yes
HDMI Version 2.1
VGA Yes
DisplayPort Yes
Total Number of USB Ports 10
Thunderbolt Yes
Number of Thunderbolt 4 Ports 2

From the manufacturer

Warranty & Shipping Dimensions

SKU 6371204
Brand ASUS
Unit Of Measure ea
