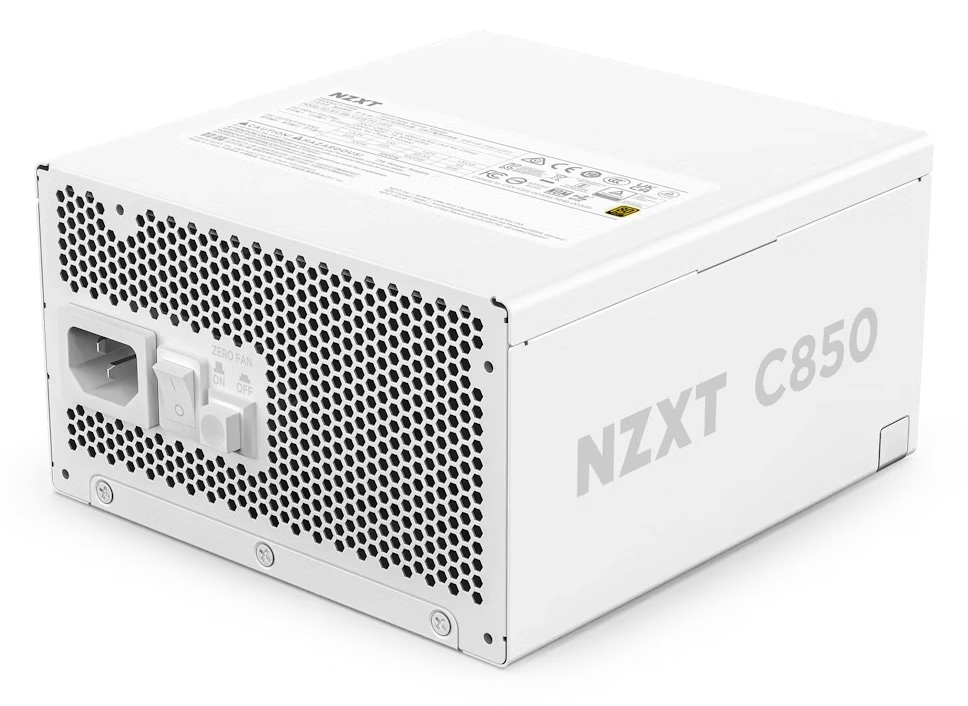

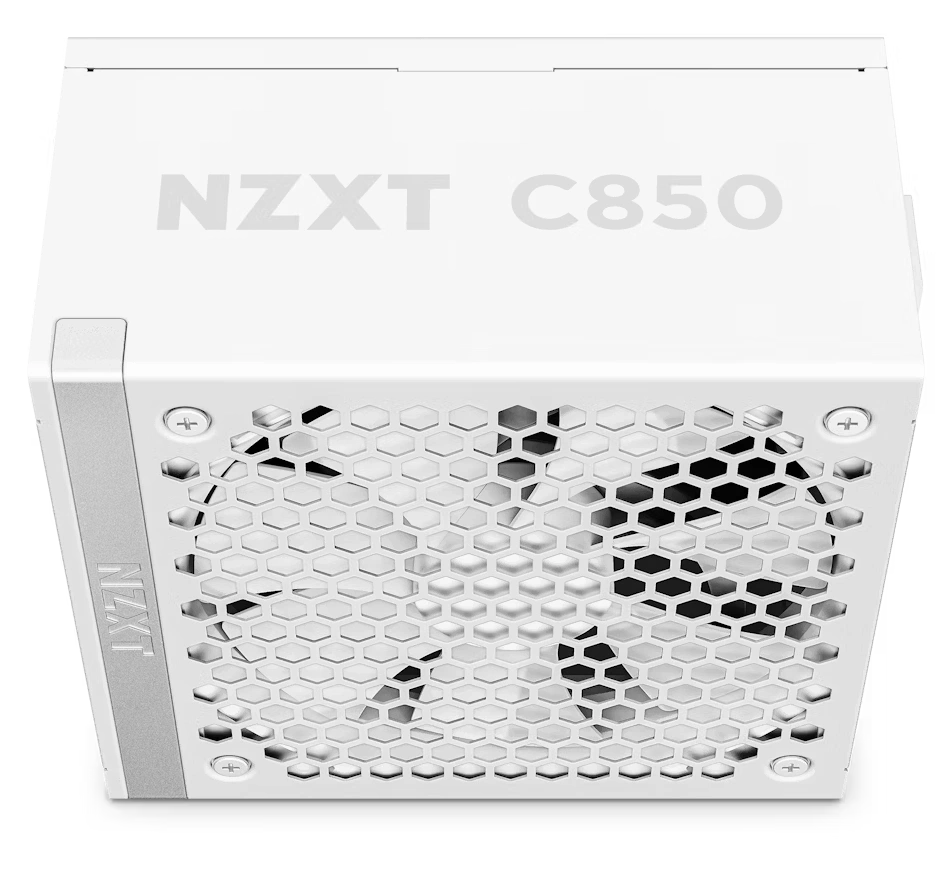

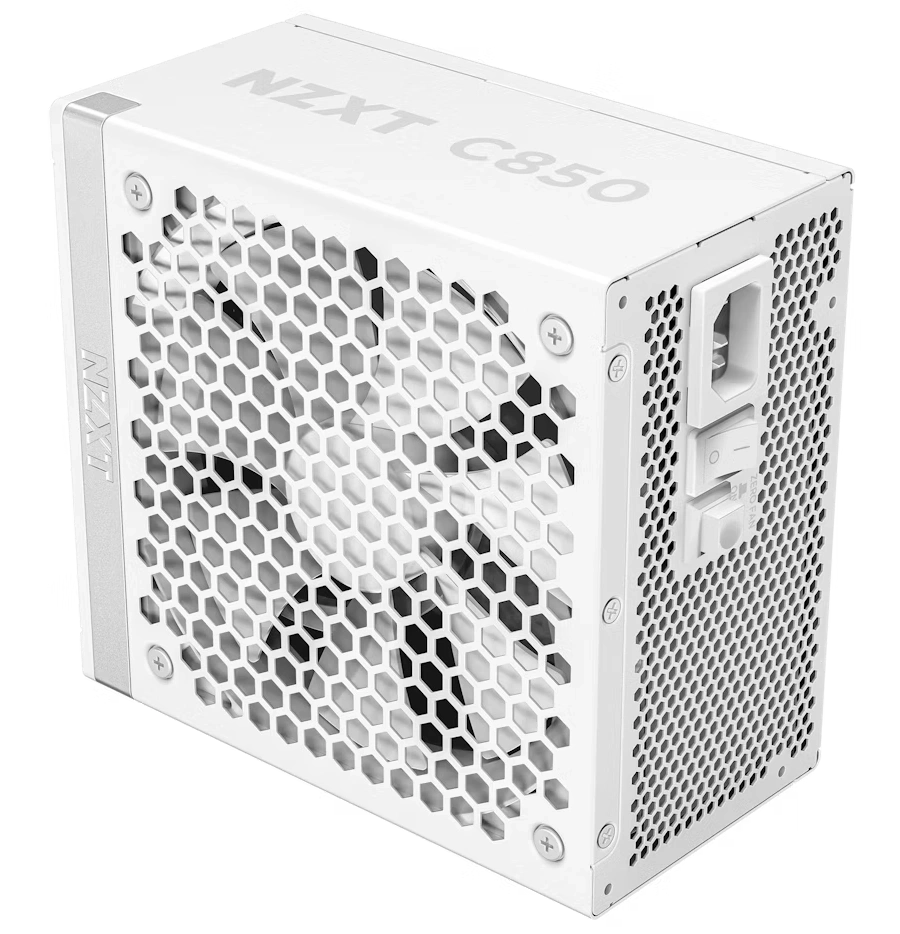

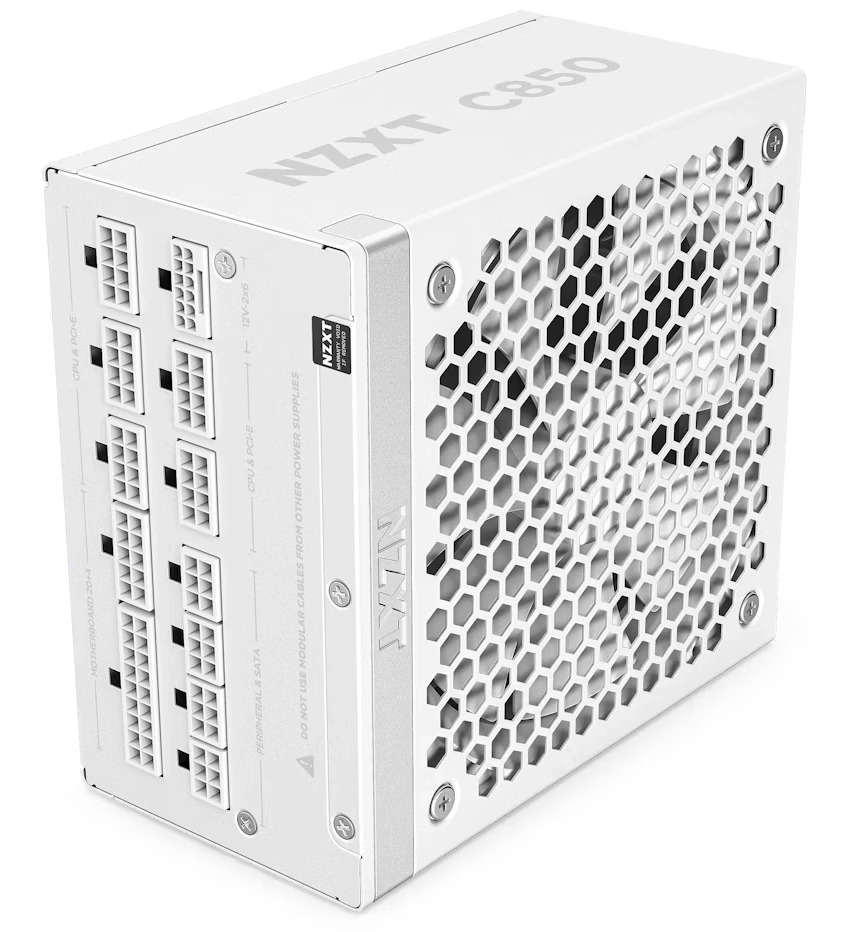

NZXT C850 80 Plus Gold 850W  Modular Power Supply - White

120 months

Specifications:

Reliability
MTBF 100000 Hour
Environmental Conditions
Minimum Operating Temperature 0°C
Maximum Operating Temperature 50°C

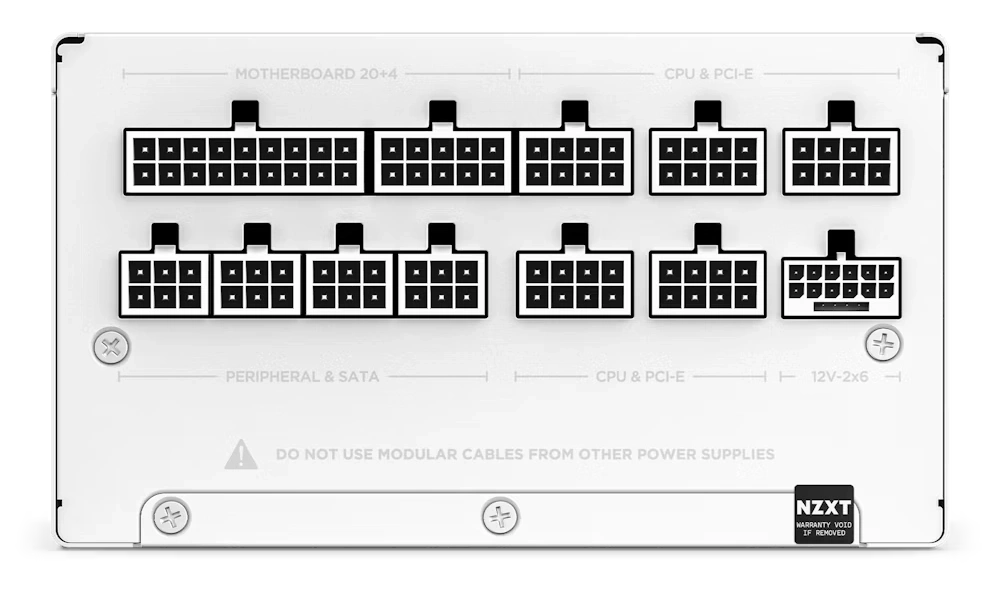

Interfaces/Ports
Number of SATA Power Connectors 12
PCI Express Connector Yes
Number of (4+4 pin) CPU Power Connectors 1
Number of (6+2 pin) PCI Express Power Connectors 3
Miscellaneous
Package Contents
  • C PA-8G2BW-AU 850W Power Supply
  • 1 x 24-Pin ATX Power Cable
  • 1 x 4+4-pin CPU Power Cable
  • 1 x 8-pin CPU Power Cable
  • 3 x 6+2-pin PCIe Power Cable
  • 1 x 16-pin (12+4) 12V-2x6 PCIe Cable
  • 3 x SATA Cable
  • 1 x Peripherals Cable
  • 4 x 6-32 Screws
  • 1 x AC Power Cord
Certifications & Standards
  • FCC
  • Canada
  • CE
  • CB(IEC 62368-1)
  • UKCA
  • CCC
  • BSMI
  • BIS
  • RCM
  • UAE
  • TUV
  • cTUVus
  • KC
  • CP65
Country of Origin China
Energy Efficiency Certification 80 Plus Gold
Environmental Compliance Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
  Waste Electrical and Electronic Equipment Directive (WEEE)
  China Restriction of Hazardous Substances (China RoHS)
Physical Characteristics
Weight (Approximate) 3.48 kg
Form Factor Compact
Height 86 mm
Width 150 mm
Depth 160 mm
Product Color Matte White
Color Family White
General Information
Product Type Power Supply
Manufacturer Part Number PA-8G2BW-AU
Manufacturer Website Address http://www.nzxt.com
Packaged Quantity 1
Manufacturer NZXT Corporation
Product Model PA-8G2BW-AU
Product Name C PA-8G2BW-AU 850W Power Supply
Product Series C
Brand Name NZXT
Power Description
Input Voltage 230 V AC
  120 V AC
Output Power 850 W
Output Voltage 12 V DC
  5 V DC
  3.3 V DC
  5 V SB
Input Frequency 60Hz
Number of +12V Rails 1
Output Voltage Detail 3.3 V DC @ 22 A
  12 V DC @ 70.83 A
  5 V DC @ 22 A
  5 V SB @ 3 A
Technical Information
Efficiency 91.7%
Fan Diameter 135 mm
Features Low Noise
Protection Type Under Voltage
  Overpower
  Over Voltage
  Over Temperature
  Over Current
  Short Circuit
Fan Bearing Type Fluid Dynamic Bearing
Number of Fans 1
Power Factor Correction (PFC) Active
NVIDIA SLI Supported Yes
Modular Yes
Specification Compliance EPS12V v2.92
  ATX12V v3.1
  ATX 3.1
SKU 6214570
Brand NZXT
Unit Of Measure ea
