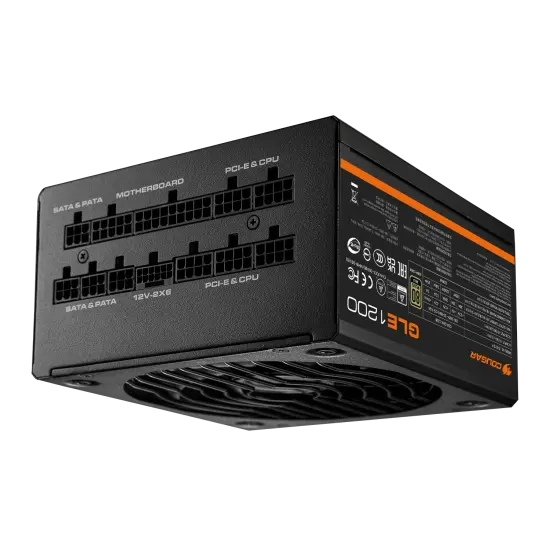

Cougar GLE 1200 1200W 80+ Gold modular ATX3.1 PCIe 5.1 PSU Overview

60 months

Features:

Support PCI Express 5.1 Graphics Cards 12+4 Pin Connector

Connect the 12V-2X6 with true 200% power excursion dynamic outputs.

80 PLUS Gold Certified

Up to 91% efficiency power conversion to cut down your electricity bill.

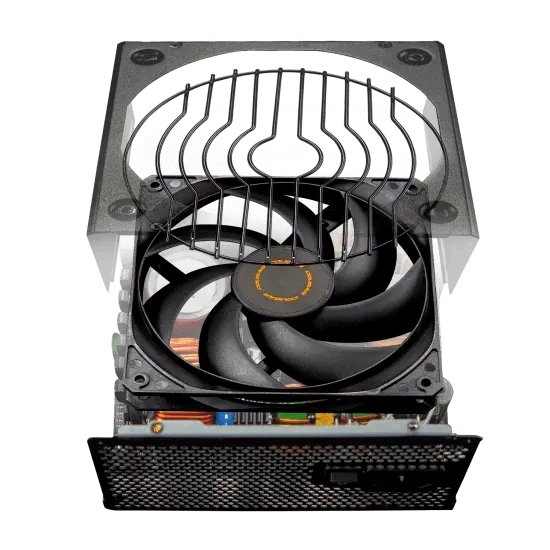

Durable HDB Fan

Hydro Dynamic Bearing Fan: Extended durability and lower noise levels.

100% Refined Japanese Capacitors

Outstanding components extend the longevity of PSU.

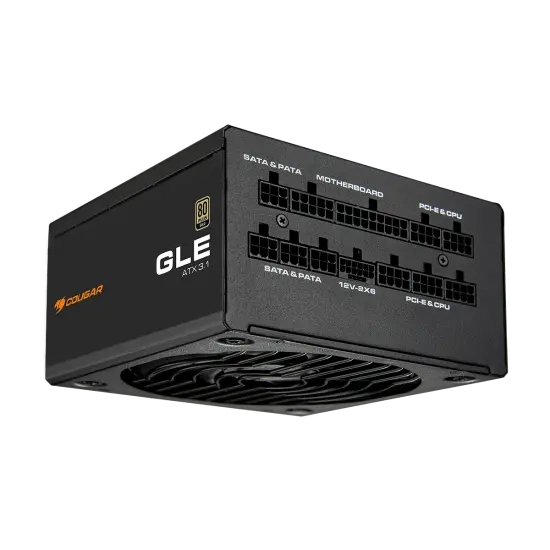

Fully Modular Power Supply Unit

Connect only the cables you need for less clutter and better airflow.

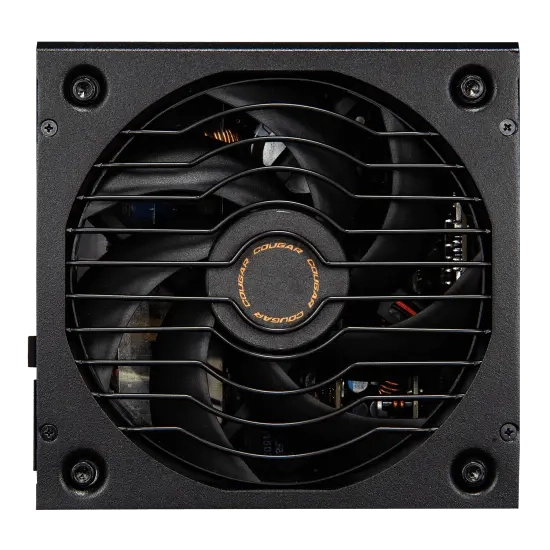

Silent Spin

Durable HDB Fan with an integrated stabilizing ring lets you experience noiseless gaming.

Compatible with The Lastest PC Technology

Created for user with current and next-generation multi-core CPU platforms.

Flawless Operation at 40°C

Powerful performance at 40°C ambient temperature.

Specifications:

Model Name AC Input DC output
+3.3V +5V +12V -12V +5Vsb Total
GLE 1000 AC100-240V~
50-60Hz 15-7.5A
20A 20A 83.3A 0.3A 3A 1000W
120W 1000W 3.6W 15W
GLE 1200 AC100-240V~
50-60Hz 15-7.5A
20A 20A 100A 0.3A 3A 1200W
120W 1200W 3.6W 15W

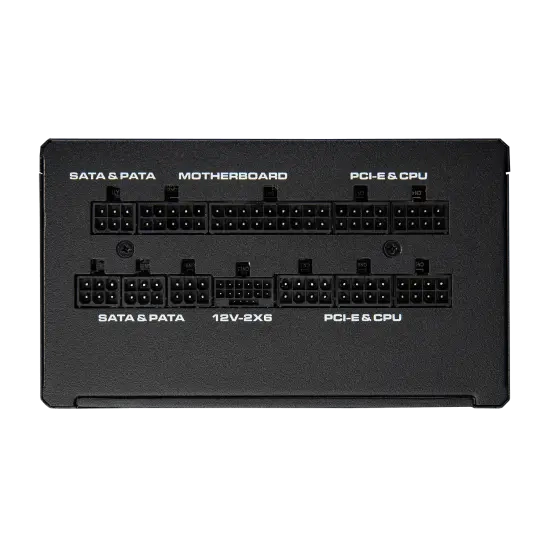

Connector Main CPU Peripherals S-ATA 12V-2X6 PCI-E
Pins 24(20+4) 8(4+4) 4 5 12+4 8(6+2)
GLE 1000 1 2 4 12 1 6
GLE 1200 1 2 4 12 1 6

Specifications might vary depending on the country or region of sale.

SKU CSPS1GLE1200
Brand Cougar
Unit Of Measure ea
