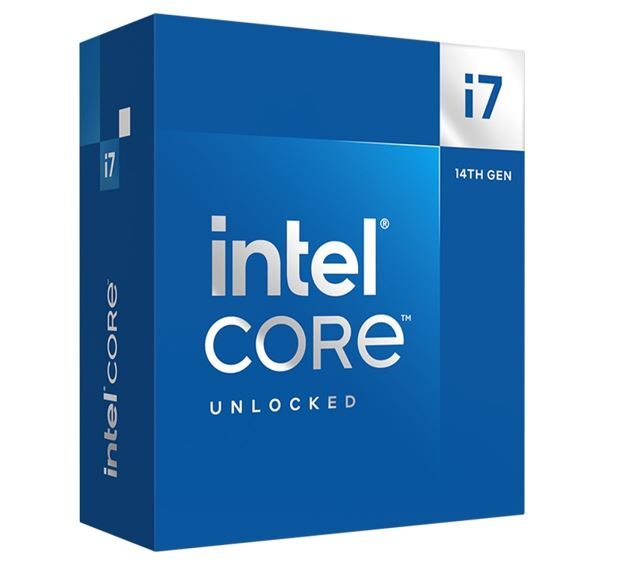

Intel i7 14700K 4.3GHz 20-Cores 28-Threads 33MB 125W 14th Gen LGA1700 CPU

Intel i7 14700K 4.3GHz 20-Cores 28-Threads 33MB 125W 14th Gen LGA1700 CPU

36 months

Manufacturer Specifications

  Intel® Core™ i7 processor 14700K  (33M Cache- up to 5.60 GHz)

Essentials
Product Collection Intel® Core™ i7 Processors (14th gen)
Code Name Products formerly RAPTOR LAKE
Vertical Segment Desktop
Processor Number i7-14700K
Lithography Intel 7
Use Conditions PC/Client/Tablet |  Workstation

CPU Specifications
Total Cores 20
# of Performance-cores 8
# of Efficient-cores 12
Total Threads 28
Max Turbo Frequency 5.6 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.6 GHz
Performance-core Max Turbo Frequency 5.5 GHz
Efficient-core Max Turbo Frequency 4.3 GHz
Performance-core Base Frequency 3.4 GHz
Efficient-core Base Frequency 2.5 GHz
Cache 33 MB Intel® Smart Cache
Total L2 Cache 28 MB
Processor Base Power 125 W
Maximum Turbo Power 253 W

Supplemental Information
Marketing Status Launched
Launch Date Q4'23
Embedded Options Available No

Memory Specifications
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 89.6 GB/s
ECC Memory Supported   ‡ Yes

GPU Specifications
Processor Graphics ‡ Intel® UHD Graphics 770
Graphics Base Frequency 300 GHz
Graphics Max Dynamic Frequency 1.6 GHz
Graphics Output eDP 1.4b |  DP 1.4a |  HDMI 2.1
Execution Units 32
Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3
Multi-Format Codec Engines 2
Intel® Quick Sync Video Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡ 4
Device ID 0xA780

Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+4 |  2x8+4
Max # of PCI Express Lanes 20

Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2020A
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm

Advanced Technologies
Intel® Gaussian & Neural Accelerator 3
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 ‡ Yes
Intel® Turbo Boost Technology ‡ 2
Intel® Hyper-Threading Technology ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes

Security & Reliability
Intel® Standard Manageability (ISM) ‡ Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes

‡ This feature may not be available on all computing systems. Please check with the system vendor to determine if your system delivers this feature, or reference the system specifications (motherboard, processor, chipset, power supply, HDD, graphics controller, memory, BIOS, drivers, virtual machine monitor-VMM, platform software, and/or operating system) for feature compatibility. Functionality, performance, and other benefits of this feature may vary depending on system configuration.

SKU CPI7-14700K
Brand Intel
Unit Of Measure ea
