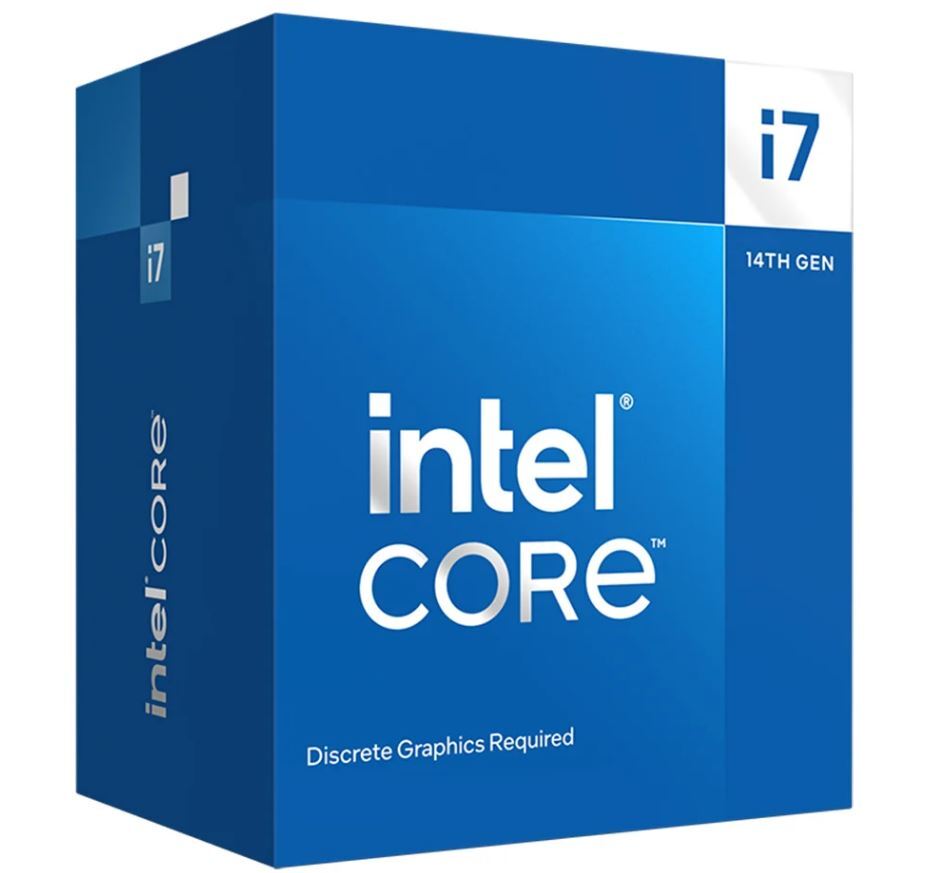

Intel i7 14700F CPU 4.2GHz 20 Cores/28 Threads 14th Gen LGA1700

Intel i7 14700F CPU 4.2GHz 20 Cores/28 Threads 14th Gen LGA1700  Overview

36 months

Specifications

  Intel® Core™ i7 processor 14700F (33M Cache- up to 5.40 GHz)

Essentials
Product Collection Intel® Core™ i7 Processors (14th gen)
Code Name Products formerly Raptor Lake
Vertical Segment Desktop
Processor Number i7-14700F
Lithography Intel 7
Use Conditions PC/Client/Tablet

CPU Specifications
Total Cores 20
# of Performance-cores 8
# of Efficient-cores 12
Total Threads 28
Max Turbo Frequency 5.4 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.4 GHz
Performance-core Max Turbo Frequency 5.3 GHz
Efficient-core Max Turbo Frequency 4.2 GHz
Performance-core Base Frequency 2.1 GHz
Efficient-core Base Frequency 1.5 GHz
Cache 33 MB Intel® Smart Cache
Total L2 Cache 28 MB
Processor Base Power 65 W
Maximum Turbo Power 219 W

Supplemental Information
Marketing Status Launched
Launch Date Q1'24
Embedded Options Available No

Memory Specifications
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 89.6 GB/s

Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+4 |  2x8+4
Max # of PCI Express Lanes 20

Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2020C
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm

Advanced Technologies
Intel® Gaussian & Neural Accelerator 3
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 ‡ Yes
Intel® Turbo Boost Technology ‡ 2
Intel® Hyper-Threading Technology ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes

Security & Reliability
Intel® Standard Manageability (ISM) ‡ Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
SKU CPUI714700F
Brand Intel
Unit Of Measure ea
