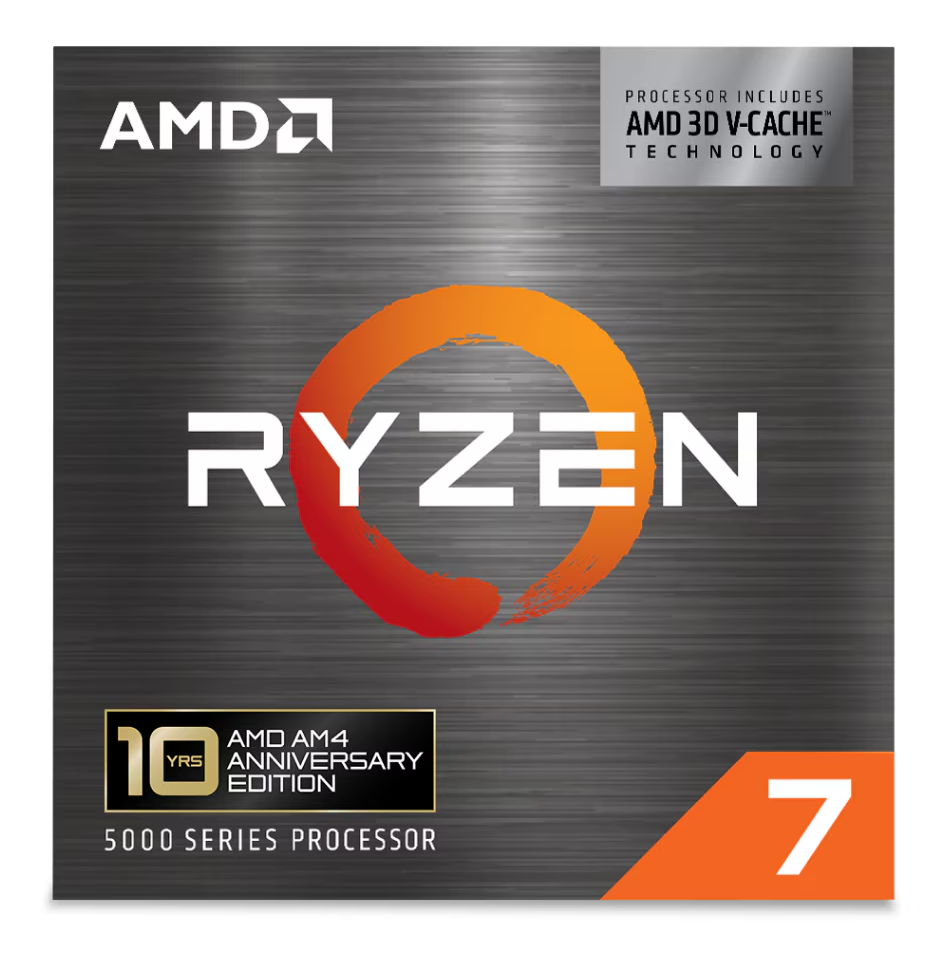

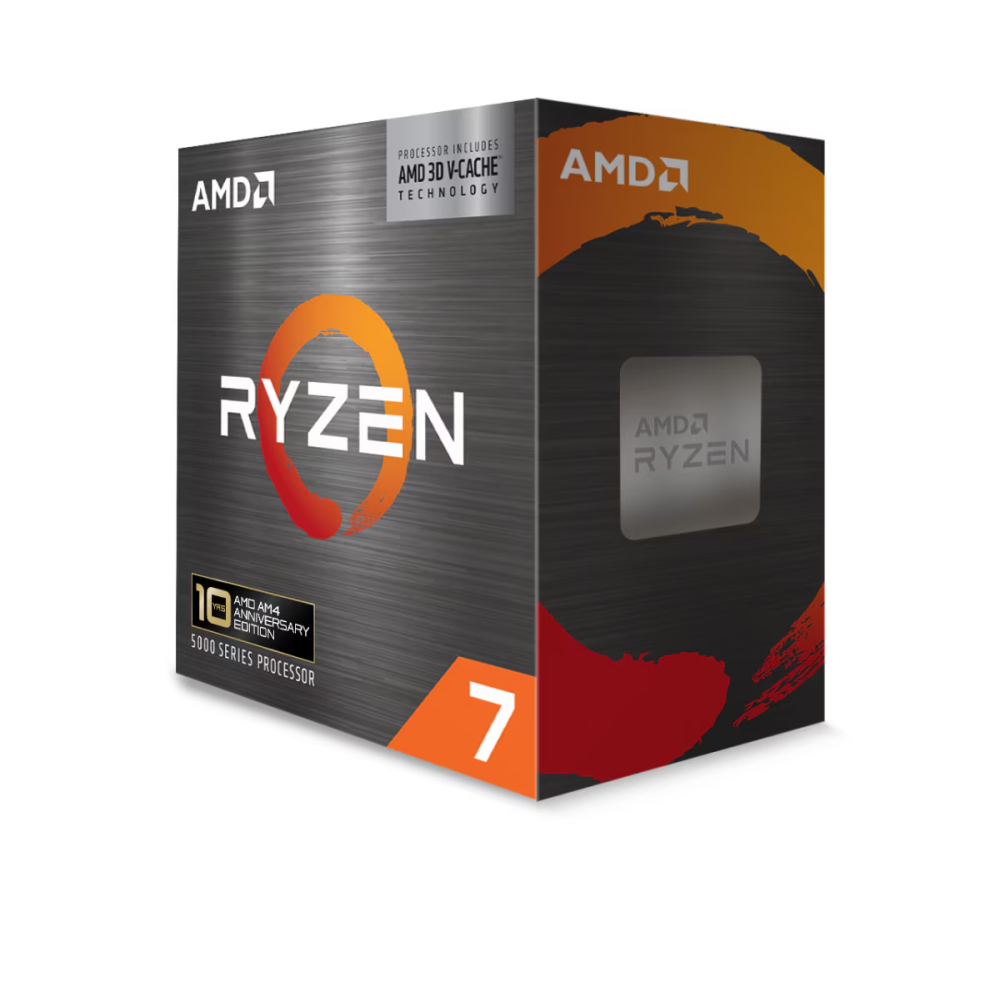

AMD Ryzen 7 5800X3D Gaming Processor 10th Anniversary Edition

36 months

SPECIFICATIONS:

Model Number 100-100000651POF
Name AMD Ryzen™ 7 5800X3D
Family Ryzen
Series Ryzen 5000 Series
Form Factor Desktops, Boxed Processor
Market Segment Enthusiast Desktop
AMD PRO Technologies No
Regional Availability Global
Former Codename Vermeer
Architecture Zen 3
Number of CPU Cores 8
Multithreading (SMT) Yes
Number of Threads 16
Max. Boost Clock Up to 4.5 GHz
Max boost for AMD processors is the maximum frequency achievable by a single core on the processor running a bursty single-threaded workload. Max boost will vary based on several factors, including, but not limited to: thermal paste; system cooling; motherboard design and BIOS; the latest AMD chipset driver; and the latest OS updates. GD-150.
Base Clock 3.4 GHz
Represents the average effective base frequency of all cores.
L1 Cache 512 KB
L2 Cache 4 MB
L3 Cache 96 MB
Default TDP 105W
Processor Technology for CPU Cores TSMC 7nm FinFET
Processor Technology for I/O Die 12nm (Globalfoundaries)
Processor Technology for CPU Cores 74mm²
I/O Die (IOD) Size 125mm²
Package Die Count 2
CPU Socket AM4
Supporting Chipsets X570, X470, B550, B450, A520
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES, AMD-V, AVX, AVX2, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB) Not Included
Recommended Cooler Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) 90°C
Launch Date 4/20/2022
*OS Support Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps) 4
Native USB 3.2 Gen 1 (5Gbps) 0
Native USB 2.0 (480Mbps) 0
Native SATA Ports 2
PCI Express® Version PCIe® 4.0
Native PCIe® Lanes (Total/Usable) 24, 20
Additional Usable PCIe Lanes from Motherboard X570 16x Gen 4
X470 2x Gen 3, 8x Gen 2
NVMe Support Boot, RAID0, RAID1, RAID10
System Memory Type DDR4
Memory Channels 2
Max. Memory 128 GB
System Memory Subtype UDIMM
Max Memory Speed 2 x 1R - DDR4-3200
2 x 2R - DDR4-3200
4 x 1R - DDR4-2933
4 x 2R - DDR4-2667
ECC Support Yes (Requires mobo support)
SKU CPUR75800X3D
Brand AMD
Shipping Weight 3.0000kg
Unit Of Measure ea
