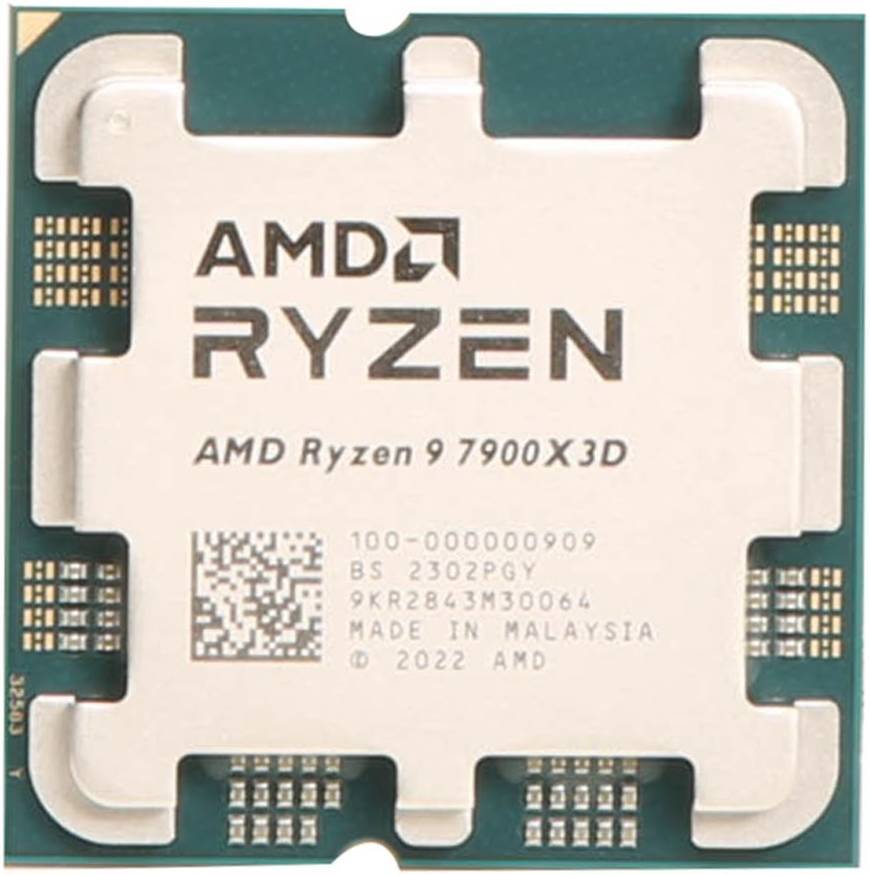

AMD AM5 Ryzen 9 7900X3D 12 Cores/24 Threads 120W CPU Without Cooler

AMD AM5 Ryzen 9 7900X3D 12 Cores/24 Threads 120W CPU Without Cooler



Model Number 100-100000909WOF
Platform Desktop
Market Segment Enthusiast Desktop
Product Family AMD Ryzen™ Processors
Product Line AMD Ryzen™ 9 Processors
AMD PRO Technologies No
Former Codename "Raphael AM5"
Architecture "Zen 4"
Number of CPU Cores 12
Multithreading (SMT) Yes
Number of Threads 24
Max. Boost Clock Up to 5.6 GHz
Base Clock 4.4 GHz
L1 Cache 768 KB
L2 Cache 12 MB
L3 Cache 128 MB
Default TDP 120 W
Processor Technology for CPU Cores TSMC 5 nm FinFET
Processor Technology for I/O Die TSMC 6 nm FinFET
CPU Compute Die (CCD) Size 71 mm²
I/O Die (IOD) Size 122 mm²
Package Die Count 3
AMD EXPO™ Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzen™ Master Support Yes
CPU Socket AM5
Supporting Chipsets X670E
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Max. Operating Temperature (Tjmax) 89°C
*OS Support Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Supported Technologies AMD EXPO™ Technology
AMD Ryzen™ Technologies


USB Type-C® Support Yes
Native USB 3.2 Gen 2 (10Gbps) Ports 4
Native USB 3.2 Gen 1 (5Gbps) Ports 0
Native USB 2.0 (480Mbps) Ports 1
Native SATA Ports 0
PCI Express® Version PCIe® 5.0
Native PCIe® Lanes (Total / Usable) 28 / 24
Additional Usable PCIe Lanes from Motherboard AMD X670E - 12 x Gen4
AMD X670 - 12 x Gen4
AMD B650E - 8 x Gen4
AMD B650 - 8 x Gen4
NVMe Support Boot, RAID0, RAID1, RAID10
System Memory Type DDR5
Memory Channels 2
Max. Memory 128 GB
System Memory Subtype UDIMM
Max Memory Speed 2 x 1R - DDR5-5200
2 x 2R - DDR5-5200
4 x 1R - DDR5-3600
4 x 2R - DDR5-3600
ECC Support Yes (Requires mobo support)

Graphics Capabilities

Integrated Graphics Yes
Graphics Model AMD Radeon™ Graphics
Graphics Core Count 2
Graphics Frequency 2200 MHz
GPU Base 400 MHz
USB Type-C® DisplayPort™ Alternate Mode Yes
