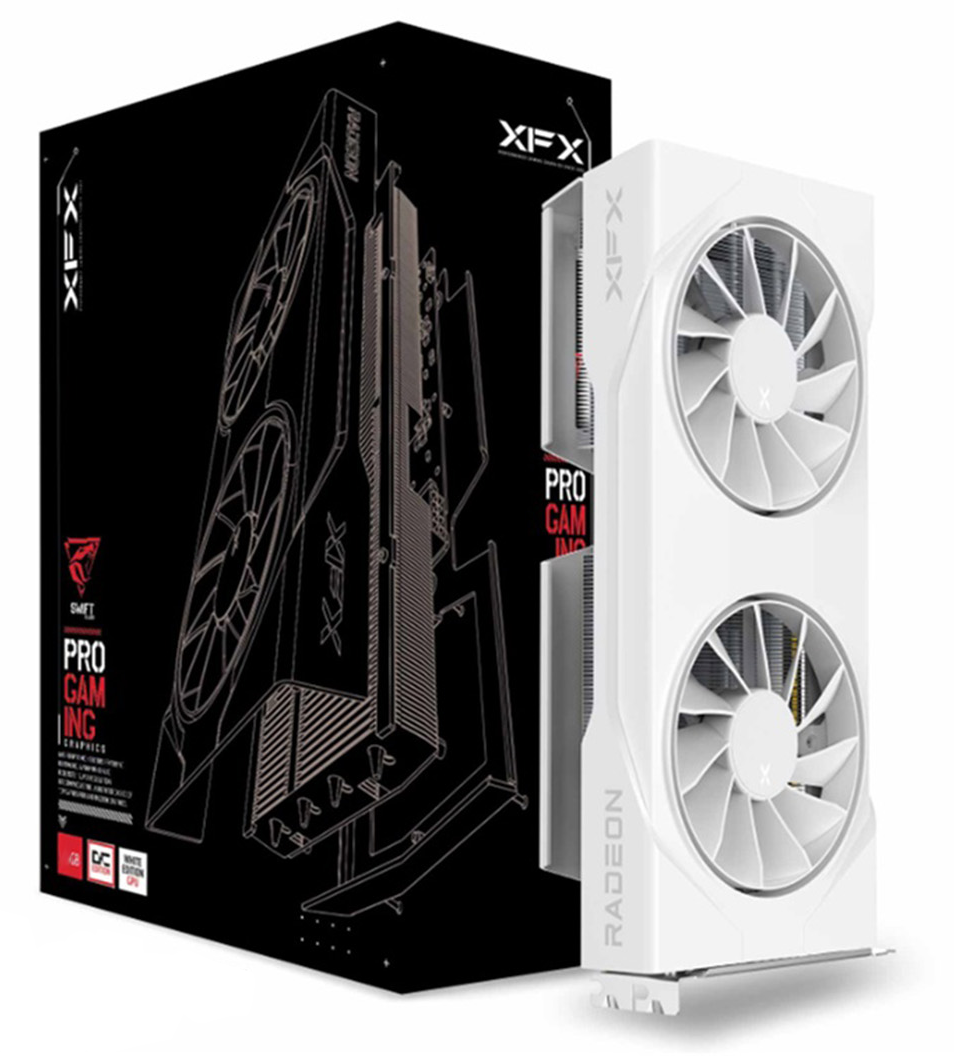

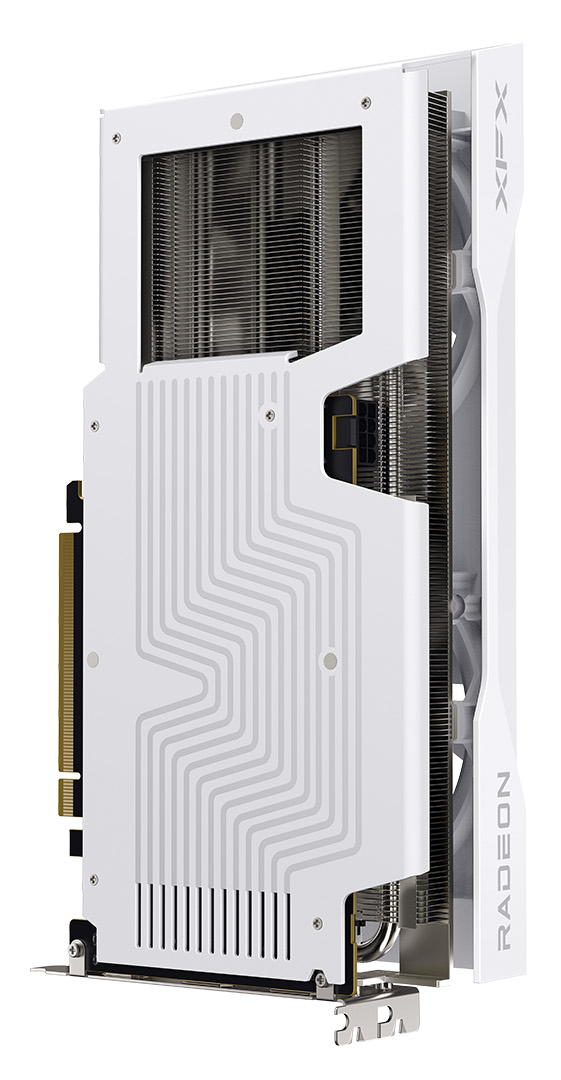

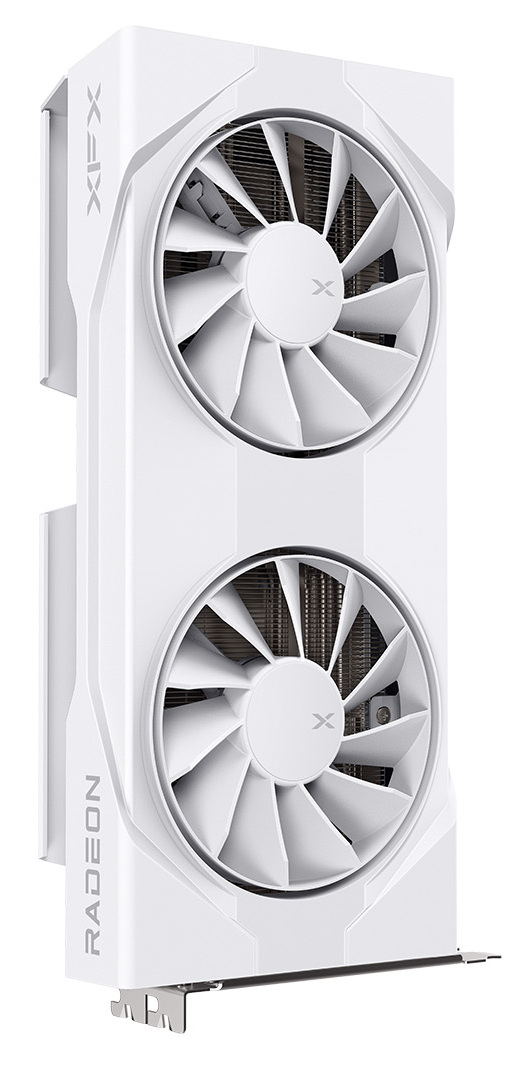

XFX Swift Radeon RX 9060XT 16GB OC Graphics Card - White Overview

36 months

Features:

HDMI™ 4K Support
4K H264 Decode
4K H264 Encode
H265/HEVC Decode
H265/HEVC Encode
AV1 Decode
AV1 Encode

SPECIFICATIONS:



Manufacturer

Manufacturer: XFX
Model Number: RX-96TSW16WQ
Product Name: AMD Radeon™ RX 9060 XT
Product Description: XFX Swift AMD Radeon RX 9060 XT OC White Gaming Edition with 16GB GDDR6 HDMI 2xDP, AMD RDNA™ 4
Short Description : XFX Swift AMD Radeon RX 9060 XT OC White Gaming Edition 16GB
Launch Date: June, 2025
UPC Number: 840191503221

Specifications

Bus Type: PCI-E 5.0


Primary Clock Speeds:
Base Clock Up To:
1900 MHz
Game Clock Up To: 2780 MHz
Boost Clock Up to: 3320 MHz


Stream Processors:  2048
Compute Units: 32
Memory Bus: 128bit
Memory Clock: 20 Gbps
Memory Size: 16 GB
Memory Bandwidth: Up to 340 GB/s
Memory Type: GDDR6
Card Profile:  Dual Slot
Thermal Solution: 2 Fan


*"Game Clock" is the expected GPU clock when running in typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

**"Boost Clock" is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

Outputs

DisplayPort 2.1: 2
HDMI™ 2.1: 1x

Requirements

External Power: 1x PCI-E 8 pin connections
Minimum Power Supply Requirement: 450 watt

Certifications

RoHS

Package Contents

Quick Installation Guide: 1

Estimated Dimensions & Weights

Card Dimension (cm) 27 x  12.4 x 4.8
Card Dimension (inch) 10.63 x  4.88 x 1.89
Master Carton Dimensions (cm) 62 x 41 x 39
Master Carton Dimensions (inch) 24.41 x 16.14 x 15.35
Master Carton Weight (Kg) 15.19est
Master Carton Weight (lb) 33.49est
Package Dimensions (cm) 36.5 x  19.8 x 12
Package Dimensions (inch) 14.37 x 7.8 x 4.72
Package Weight (Kg) 1.4est
Package Weight (lb) 3.09est
Units/Carton 10

Technologies

32 AMD RDNA™ 4 Compute Units(with RT+AI Accelerators)
AMD Infinity Cache™ technology
DisplayPort™ 2.1
AMD Radiance Display™ Engine
AMD Radeon™ Boost technology*
AMD Radeon™ Anti-Lag* technology*
16GB GDDR6 on 128-Bit Memory Bus
PCI® Express 5.0 ready
AMD FidelityFX™ technologies*
AMD FidelityFX™ Super Resolution technology*
Microsoft® DirectX® 12 Ultimate
Microsoft® DirectStorage
Vulkan® Optimized
AMD smart technologies*
AMD Software: Adrenalin Edition™ application
AMD Noise Suppression*
AMD Privacy View*
AMD Radeon™ Super Resolution technology*
AMD Link*
AMD Freesync™ technology*



SKU VCX-RX9060XTOC-16GB-WH
Brand XFX
Unit Of Measure ea
