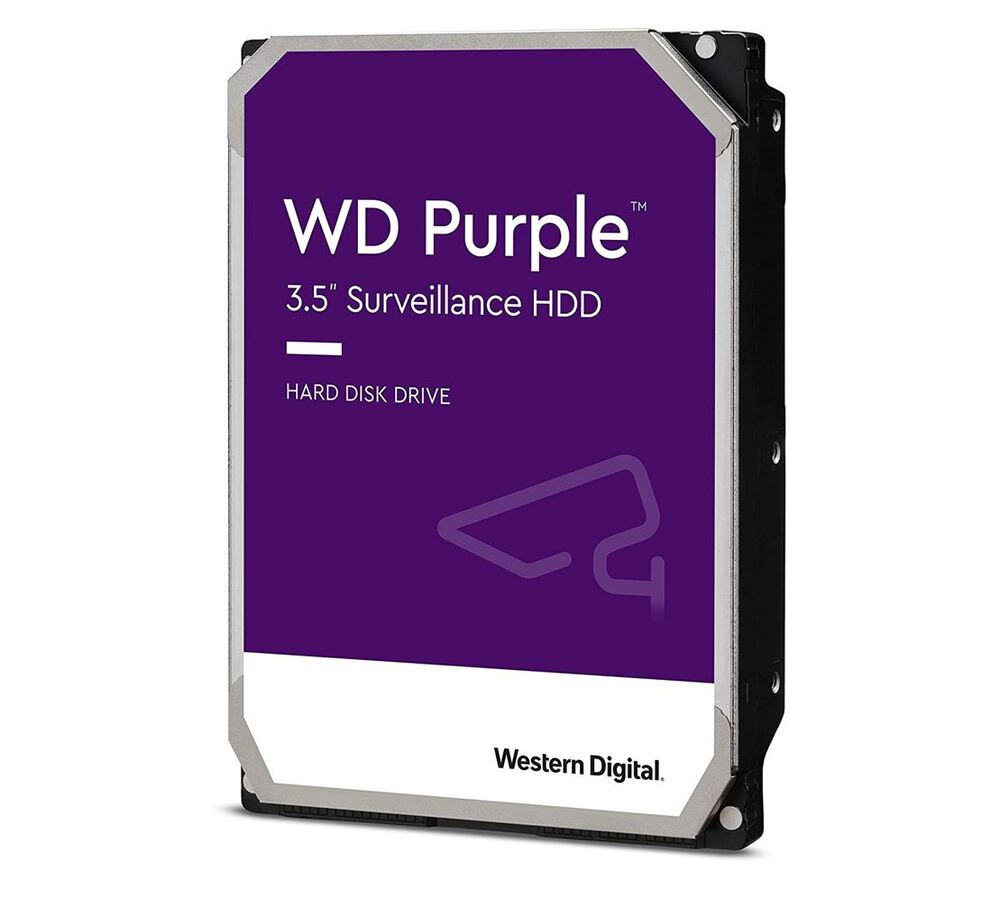

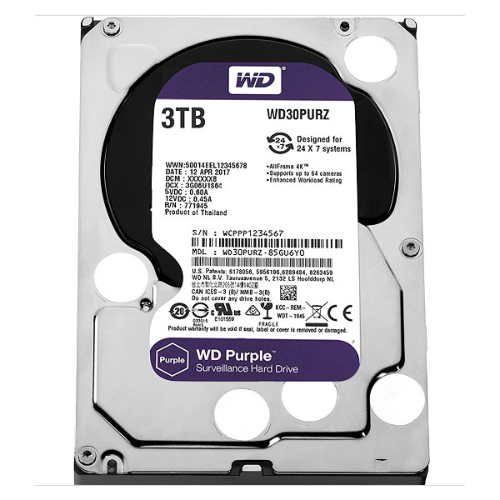

Western Digital 3TB Purple 3.5" SATA Hard Disk Drive
Western Digital WD Purple 3TB 3.5" Surveillance HDD 5400RPM 64MB SATA3 6Gb/s 145MB/s 180TBW 24x7 64 Cameras AV NVR DVR 1.5mil MTBF 3yrs
WD Purple Surveillance HDD
Uncompromising Storage for 24/7, Always On Security Systems
Engineered for the Extreme Demands of 24/7 Surveillance Systems
WD Purple™ surveillance storage features Western Digital’s exclusive AllFrame™ technology, so you can confidently create a security system tailored to the needs of your business. AllFrame technology improves ATA streaming, helping to reduce errors, pixelation, and other video interruptions that could happen in a video recording system.
WD Purple drives have an enhanced workload rating that supports systems designed for 24x7 video recording with up to 64 cameras. WD Purple 8TB, 10TB, 12TB, and 14TB capacities feature AllFrame AI™ technology that enables an additional 32 streams for Deep Learning analytics within the system.
Up to 14TB for the needs of 24/7, always on high-definition surveillance systems
Enhanced Workload Ratings
Up to 180TB/year on capacities up to 6TB, and up to 360TB/year on 8TB and above
Exclusive AllFrame Technology
Help reduce frame loss, improve overall video playback, and increase the number of bays supported within a NVR
Engineered specifically for surveillance security systems.
Supports up to 360TB/yr workload rate1
Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications
Prioritized write-operations for maximized surveillance performance
TLER & ATA streaming support
Support for more than eight bays2
Applications and Workload
NVR & DVR Surveillance Systems
Up to 64 Cameras Per HDD
Deep Learning/AI Capable NVR Systems (8TB, 10TB, 12TB & 14TB)
Disk Speed (RPM)
- WD Purple™ surveillance storage is built to handle up to 64 cameras per drive and is designed for 24/7, always on, high-definition surveillance security systems with more than eight bays2.
Dimensions (L x W x H)
5.79” x 4” x 1.03”
