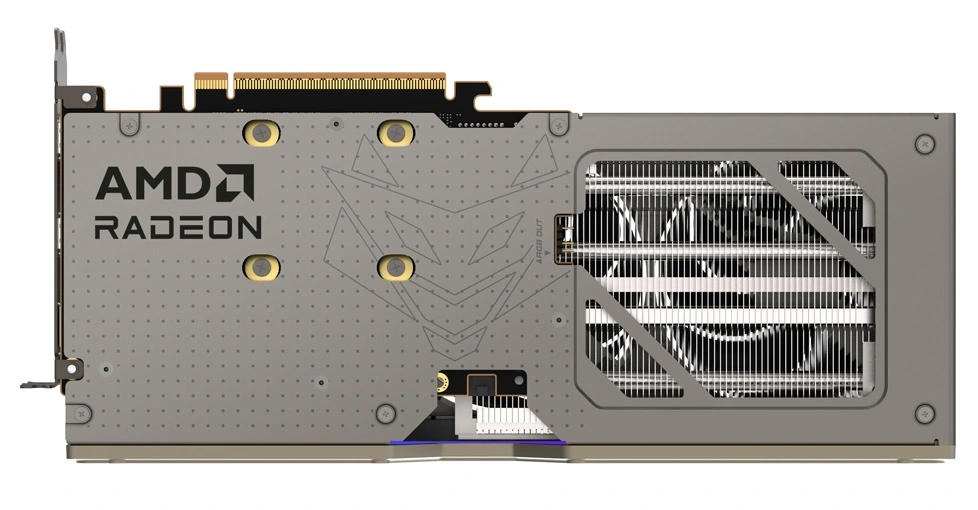

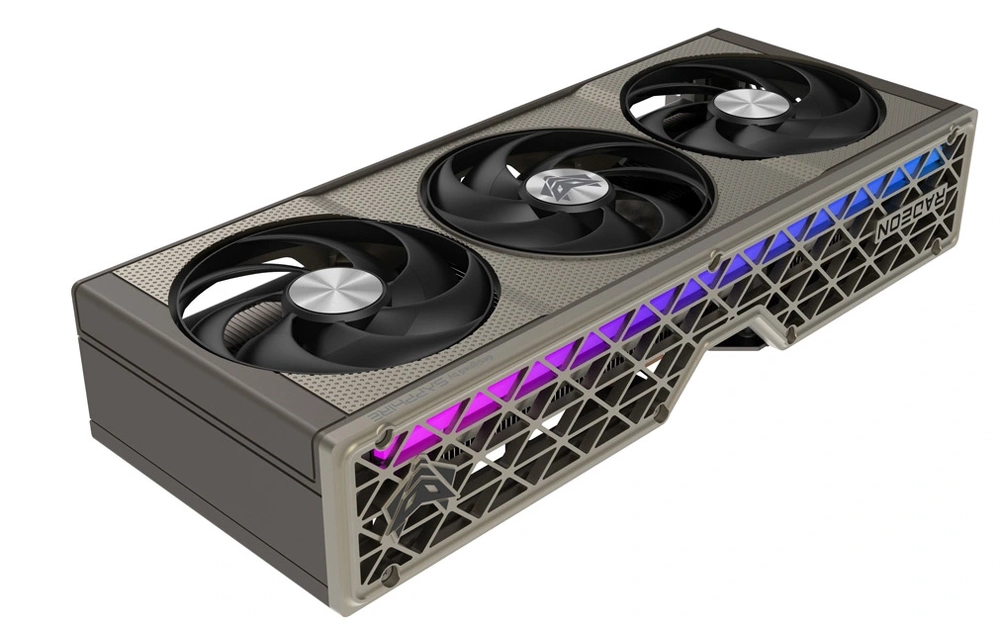

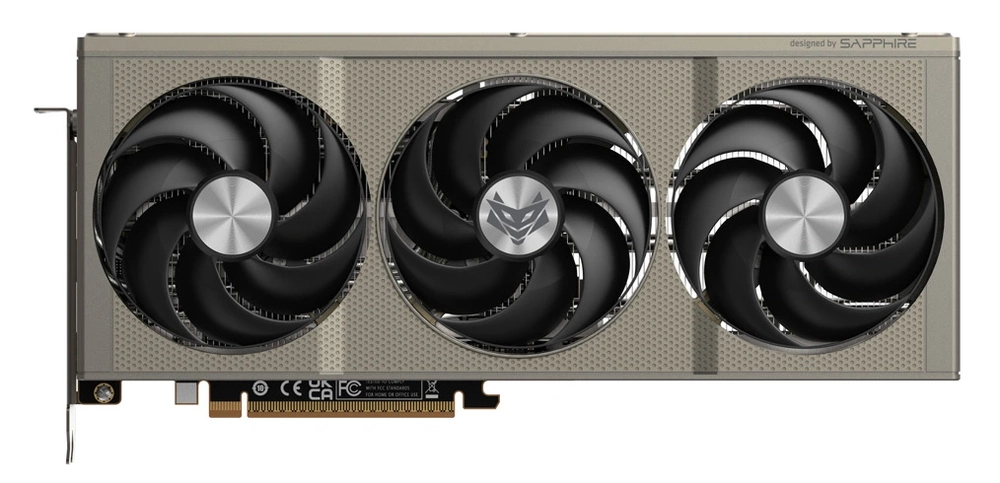

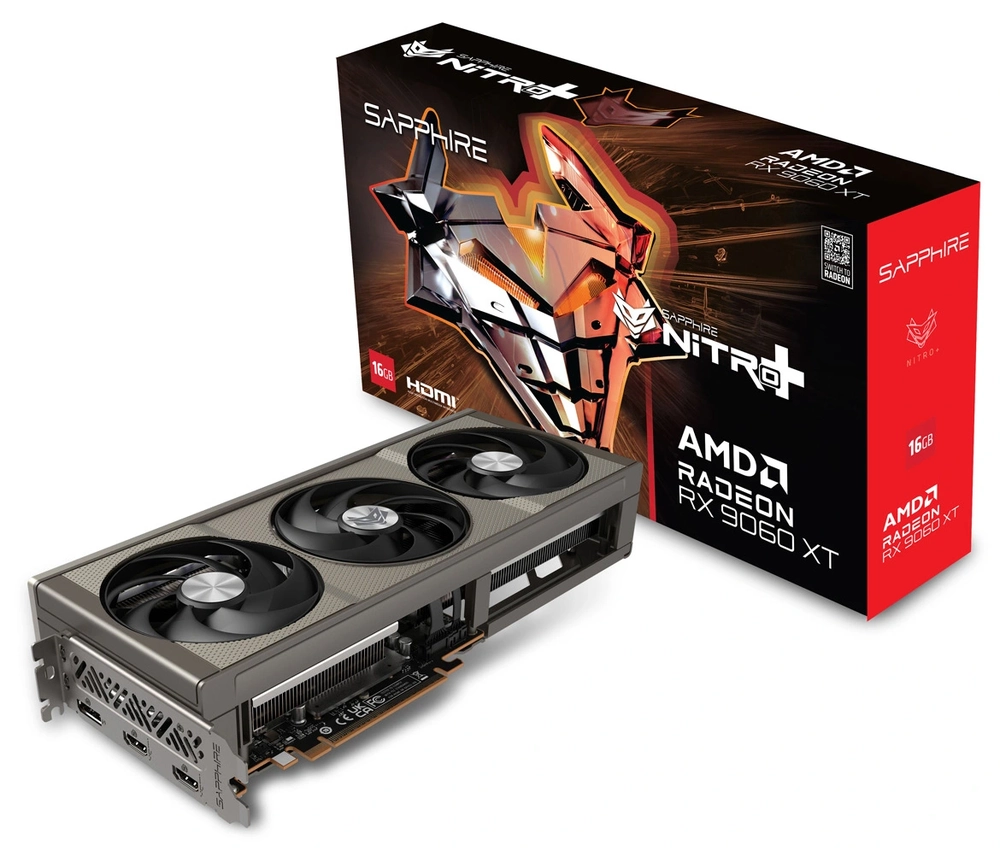

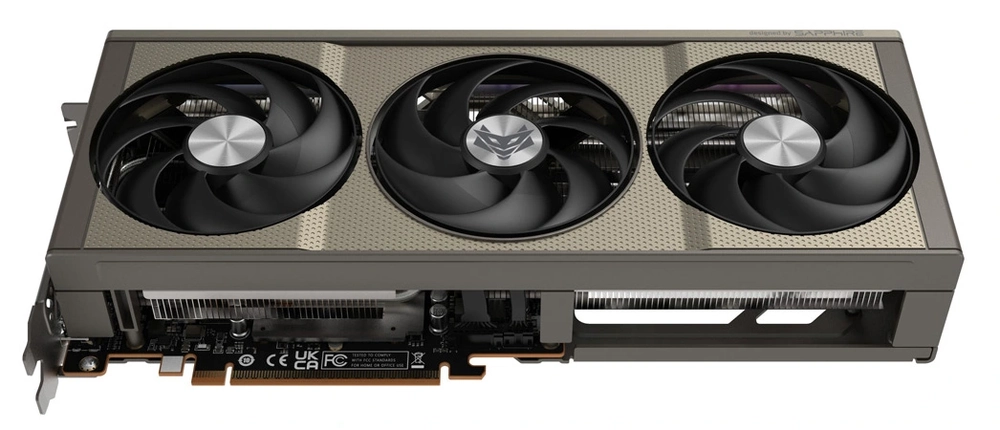

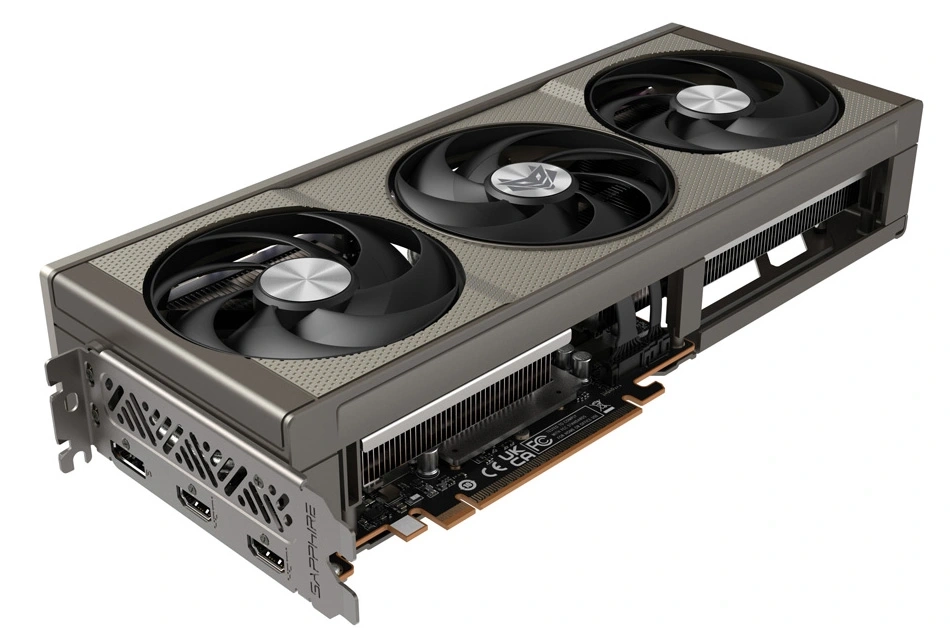

Sapphire Radeon RX 9060 XT Nitro+ Gaming 16GB OC Graphics Card Overview

36 months

Specifications:



Model Number 11350-01-20G
GPU AMD Radeon™ RX 9060 XT Graphics Card
AMD RDNA™ 4 Architecture
Engine Clock Boost Clock: Up to 3320 MHz (Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.)
Game Clock: Up to 2780 MHz (Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.)
Stream Processors 2048
Compute Units 32 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
Infinity Cache 32 MB
Ray Accelerators 32
AI Accelerator 64
Memory Size/Bus 16 GB / 128 bit GDDR6
Memory Clock 20 Gbps Effective
Displays Maximum 3 Displays
Resolution HDMI®: 7680 x 4320
DisplayPort™ 2.1a: 7680 x 4320
Interface PCI-Express 5.0 x 16
Output 2 x HDMI®
1 x DisplayPort™ 2.1a
BIOS Support UEFI
Game Index 1440P
Accessories Bundled L-Shape Support Bracket
3-pin 5 V ARGB Cable
Cooler Type Tri-X Cooling
AeroCurve Fan Blade
Free Flow
Integrated Cooling Module
High TG Copper PCB
Optimised Composite Heatpipes
Two-Ball Bearing
Form Factor 2.7 slot, ATX
Dimension 300 (L) x 131 (W) x 55 (H) mm
Power Consumption 182 W Typical Board Power
OS Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement Minimum 450 Watt Power Supply
1 x 8-pin Power Connector.
PCI Express® based PC is required with one x 16 lane graphics slot available on the motherboard.
Minimum 8 GB of system memory. 16 GB recommended.



SKU VCS-RX9060XT-NITRO
Brand Sapphire
Unit Of Measure ea
