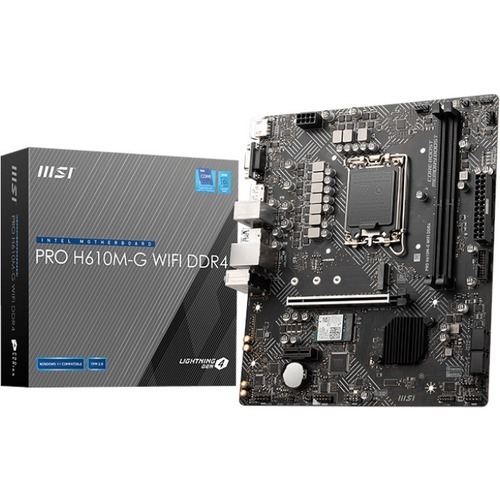

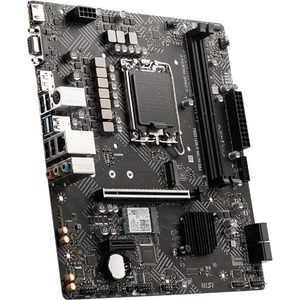

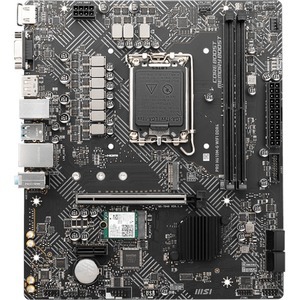

MSI PRO H610M-G WIFI DDR4 Intel LGA 1700 mATX Motherboard Overview

36 months

  • Compatible Pentium Gold processor lets you perform all your computational tasks at a swift pace
  • DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
  • Wireless support reduces the number of cables required to connect peripherals
  • HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
  • DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
  • Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX desktop motherboard

Technical Specs

Audio

Audio Channels 7.1

I/O Controller

Controller Type Serial ATA/600

Miscellaneous

Brand Compatibility Intel

Video

Onboard Video CPU Dependent Video

Physical Characteristics

Form Factor Micro ATX
Width 244.1 mm
Depth 211.1 mm

Onboard Interfaces

Number of SATA Interfaces 4
Total Number of Onboard USB Ports 4
Number of Onboard USB 2.0 Ports 2
Number of M.2 Interfaces 1

Network & Communication

Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n/ac
Bluetooth Standard Bluetooth 5.1

I/O Expansions

Number of PCI Express x1 Slots 1
Number of Total Expansion Slots 2
Number of PCI Express x16 Slots 1
PCI Express Standard PCI Express 4.0
PCI Express 3.0
Total Number of PCI Express Slots 2

General Information

Product Type Desktop Motherboard
Manufacturer Part Number H610M-G DDR4 WIFI
Manufacturer Website Address http://au.msi.com
Manufacturer MSI
Product Name PRO H610M-G WIFI DDR4 Desktop Motherboard
Product Series PRO
Brand Name MSI

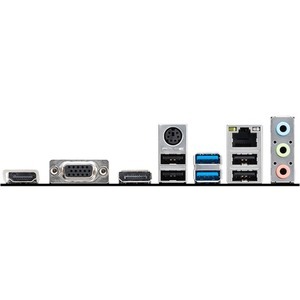

Interfaces/Ports

HDMI Yes
HDMI Version 2.1
VGA Yes
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 6
Number of USB 3.2 Gen 1 Type-A Ports 2

Memory

Maximum Memory Supported 64 GB
Memory Technology DDR4 SDRAM
Number of Memory Slots 2
Memory Form Factor UDIMM
DIMM
Memory Speed Supported 3200 MHz
2933 MHz
2133 MHz
2666 MHz

Processor & Chipset

Processor Supported Pentium Gold
Core
Celeron
Total Processor Supported 1
Processor Socket Socket LGA-1700
Chipset Manufacturer Intel
Chipset Model H610
Processor Generation Supported 12th Gen
13th Gen
12th Gen
13th Gen
SKU MBMH610M-G-W4
Brand MSI
Unit Of Measure ea
