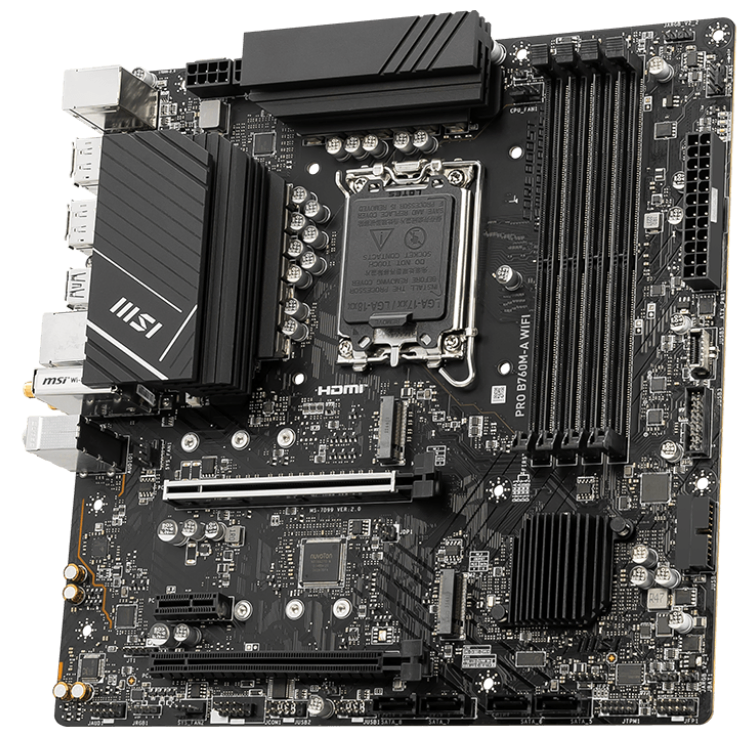

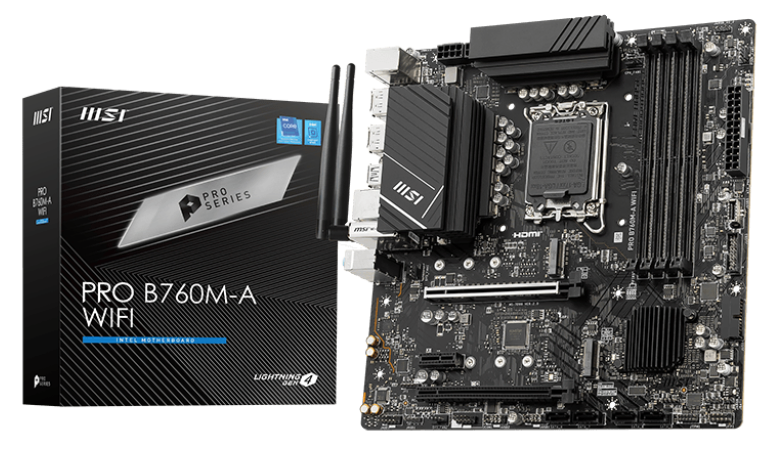

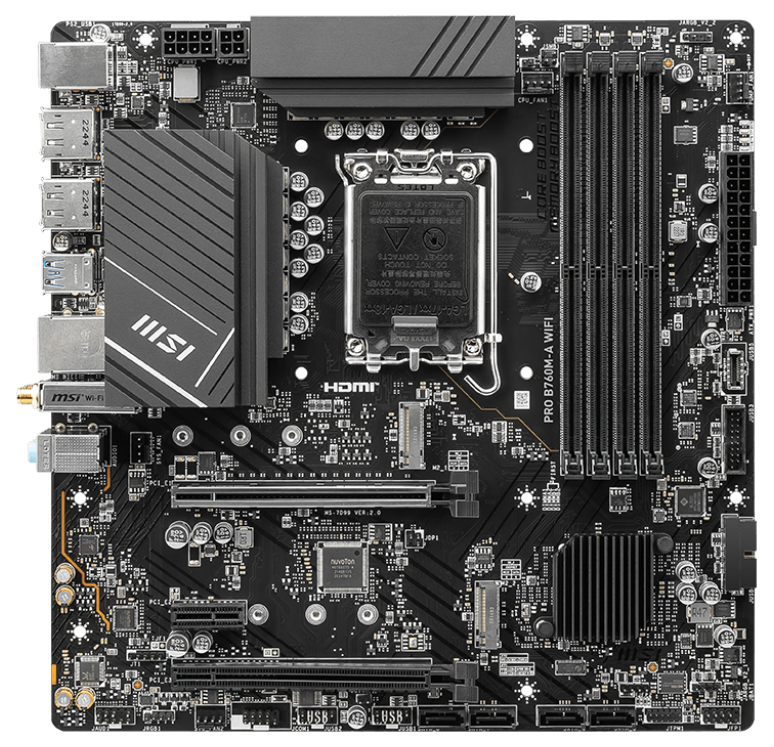

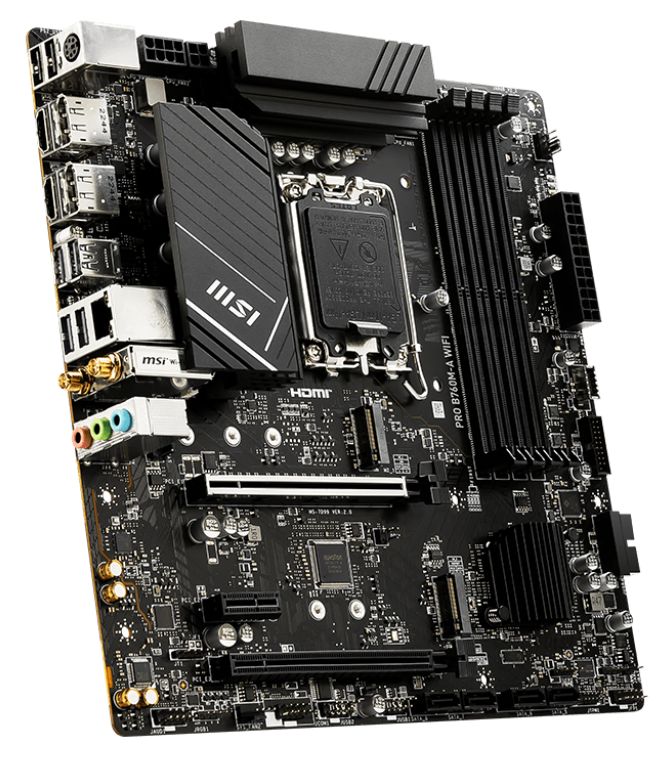

MSI PRO B760M-A WIFI mATX Motherboard Overview

36 months

Features:

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications:

Audio
Audio Channels 7.1
Video
Onboard Video CPU Dependent Video
Physical Characteristics
Form Factor Micro ATX
Width 243.8 mm
Depth 243.8 mm
Onboard Interfaces
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 9
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 2
I/O Controller
RAID Levels 5
  10
  1
  0
Controller Type Serial ATA/600
RAID Supported Yes
I/O Expansions
Number of PCI Express x1 Slots 1
Number of PCI Express x16 Slots 2
PCI Express Standard PCI Express 4.0
  PCI Express 3.0
Total Number of PCI Express Slots 3
Total Number of Expansion Slots 3
Network & Communication
Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard Bluetooth 5.3
2.5Gigabit Ethernet Yes
General Information
Product Type Gaming Desktop Motherboard
Manufacturer Part Number PRO B760M-A WIFI DDR5
Manufacturer Website Address http://au.msi.com
Manufacturer MSI
Product Model PRO B760M-A WIFI DDR5
Product Name PRO B760M-A WIFI DDR5 Gaming Desktop Motherboard
Product Line Pro
Brand Name MSI

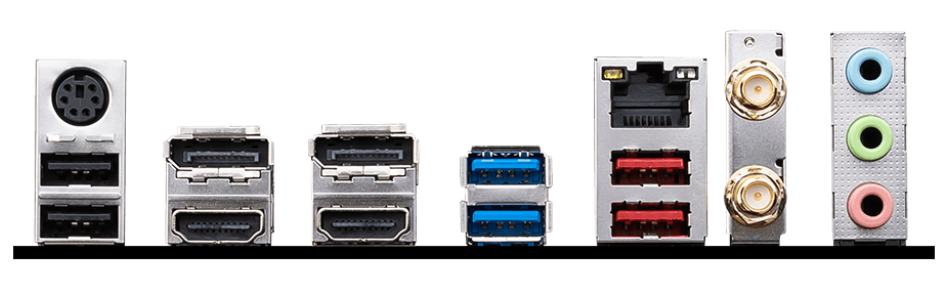

Interfaces/Ports
HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 6
Number of USB 2.0 Ports 2
Number of USB 3.2 Gen 1 Type-A Ports 2
Number of USB 3.2 Gen 2 Type-A Ports 2
Processor & Chipset
Processor Supported Core
  Celeron
  Pentium Gold
Total Processor Supported 1
Processor Socket Socket LGA-1700
Chipset Manufacturer Intel
Chipset Model B760
Processor Generation Supported 13th Gen
  12th Gen
Memory
Maximum Memory Supported 192 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor DIMM
  UDIMM
Memory Speed Supported 6200 MHz
  6400 MHz
  6600 MHz
  4800 MHz
  5000 MHz
  6800 MHz
  5200 MHz
  5400 MHz
  5600 MHz
  5800 MHz
  6000 MHz
SKU MBMB760M-A-D5
Brand MSI
Unit Of Measure ea
