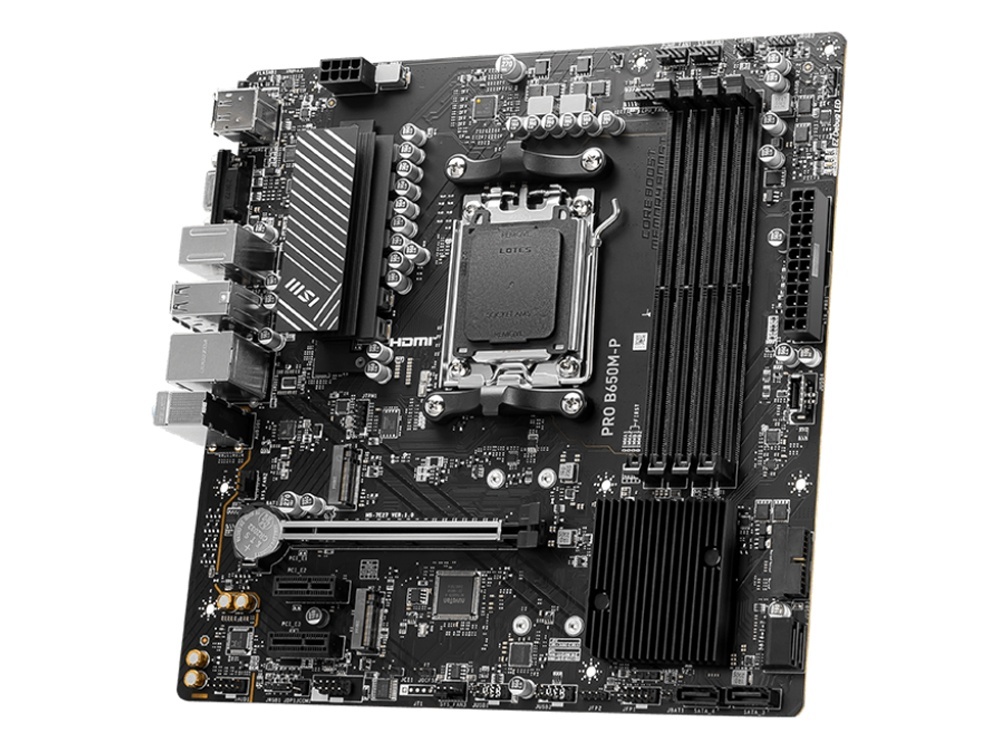

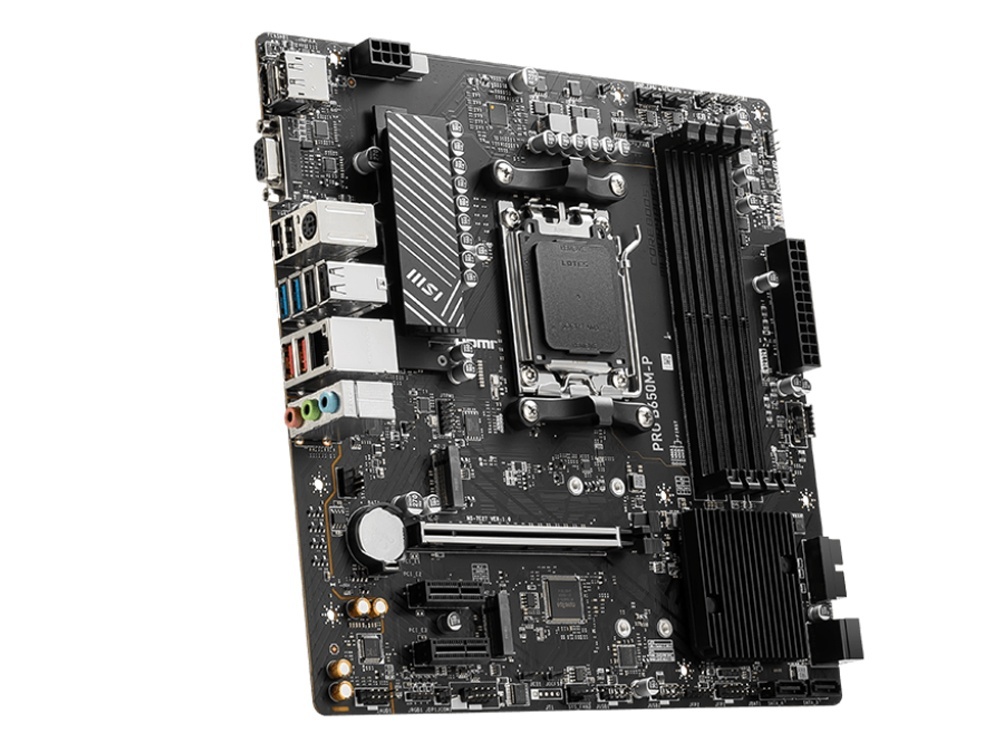

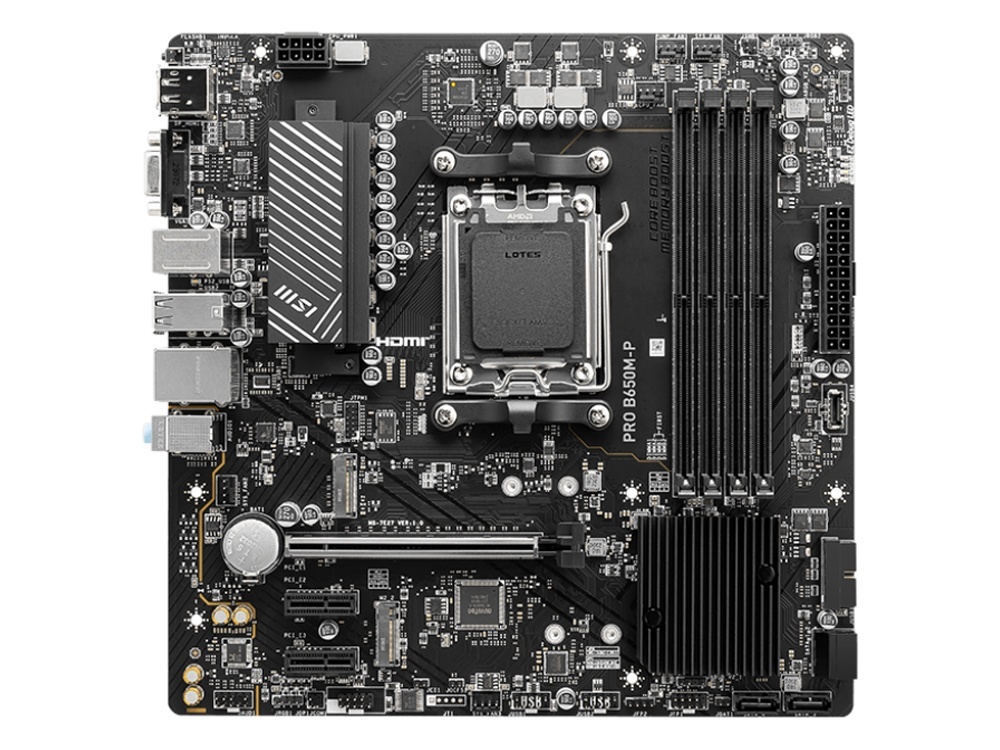

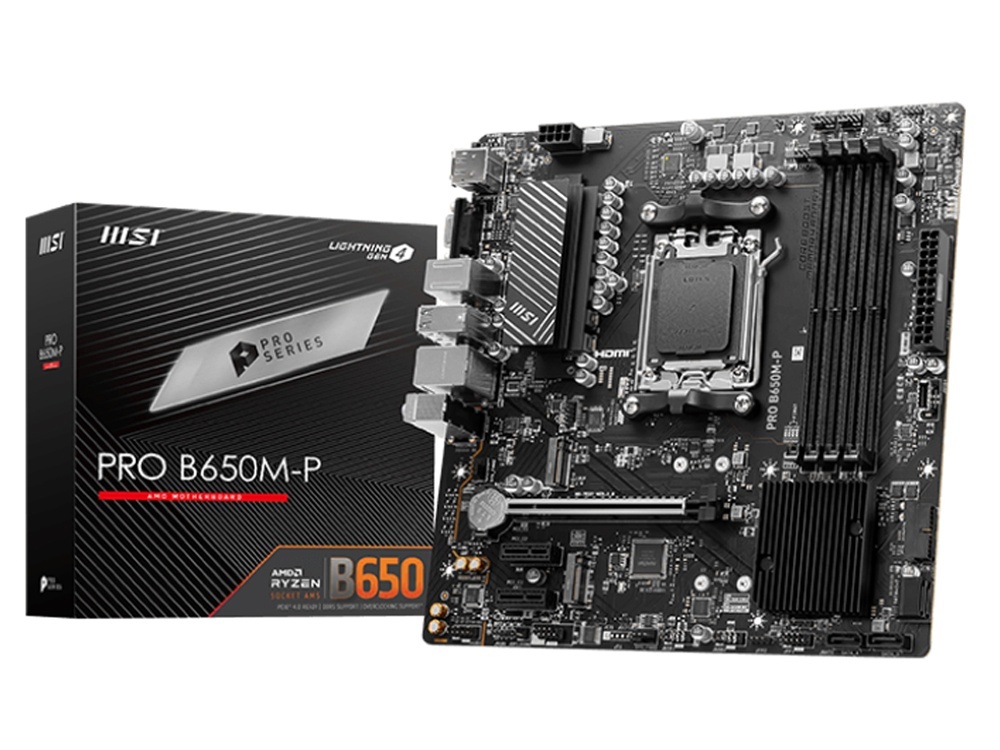

MSI PRO B650M-P  AM5 mATX Motherboard

MSI PRO B650M-P  AM5 mATX Motherboard Overview

36 months

Specifications

Chipset AMD B650
CPU Support Supports AMD Ryzen 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
-1DPC 1R Max speed up to 7200+ MHz
-1DPC 2R Max speed up to 6000+ MHz
-2DPC 1R Max speed up to 6000+ MHz
-2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Onboard Graphics 1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Supports DP 1.4, maximum resolution of 4K 60Hz
1x VGA
Support VGA, maximum resolution of 1920x1200 60Hz
Expansion Slot 1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
Raid Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
LAN Realtek 8125BG 2.5G LAN
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
LED Feature 4x EZ Debug LED

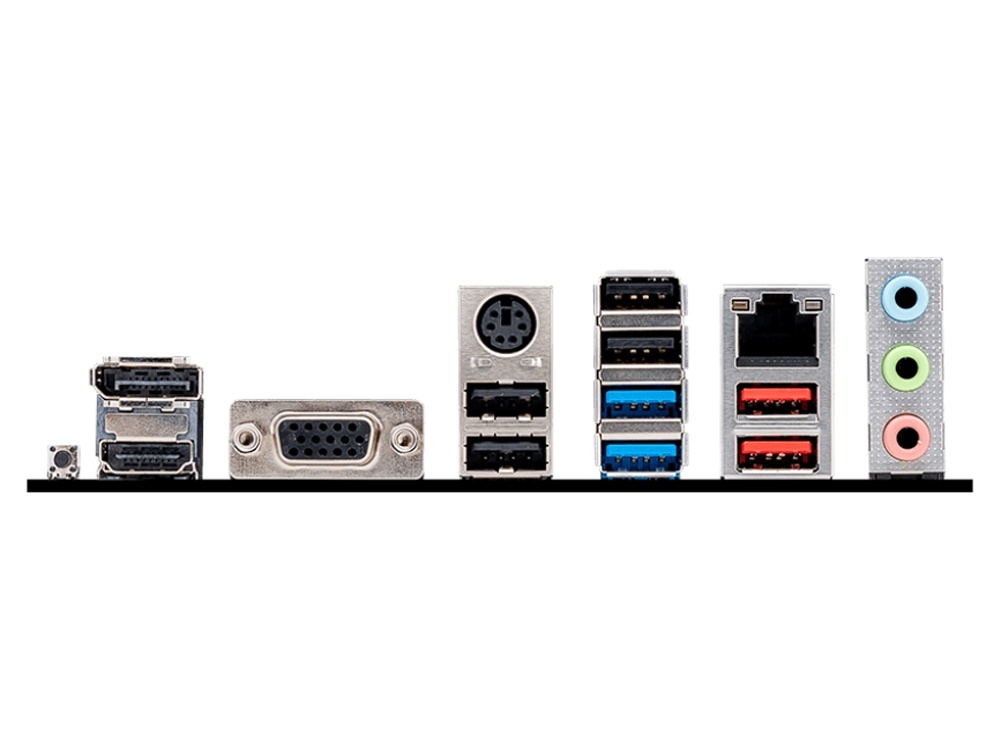

Back Panel Ports DisplayPort
VGA
Keyboard / Mouse
USB 2.0
2.5G LAN
Audio connectors
Flash BIOS Button
HDMI
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
Opreating System Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension (W × L) mATX
243.84mmx243.84mm
SKU MBMB650M-P
Brand MSI
Unit Of Measure ea
