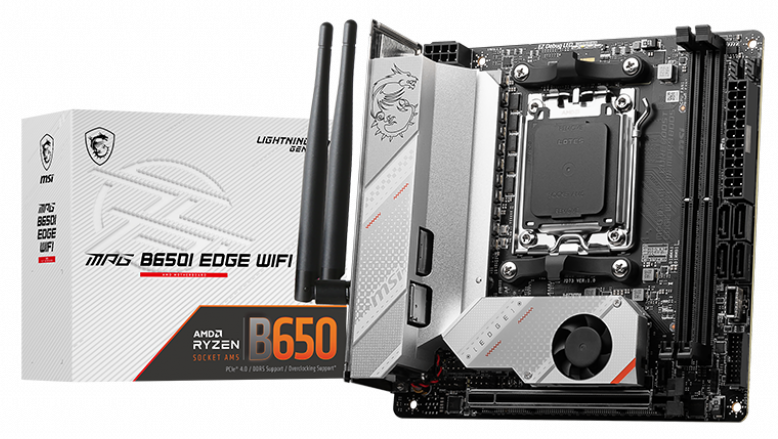

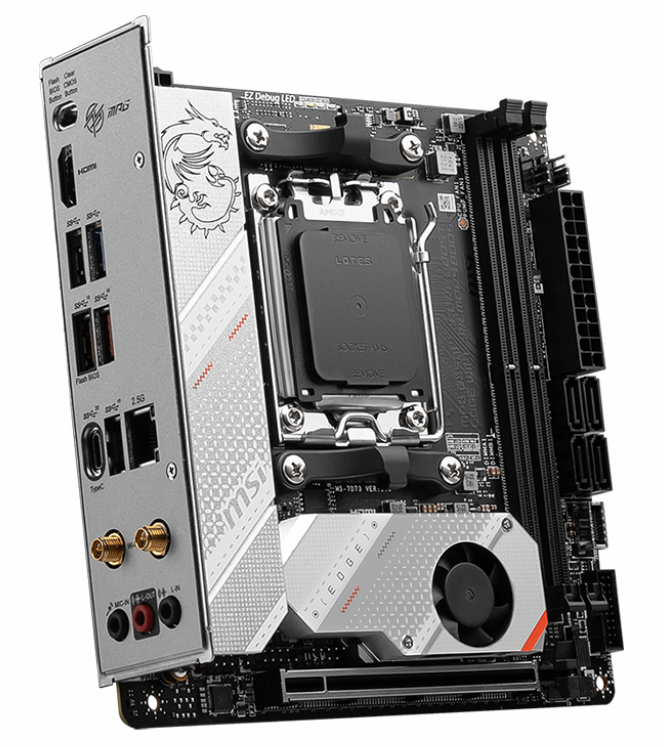

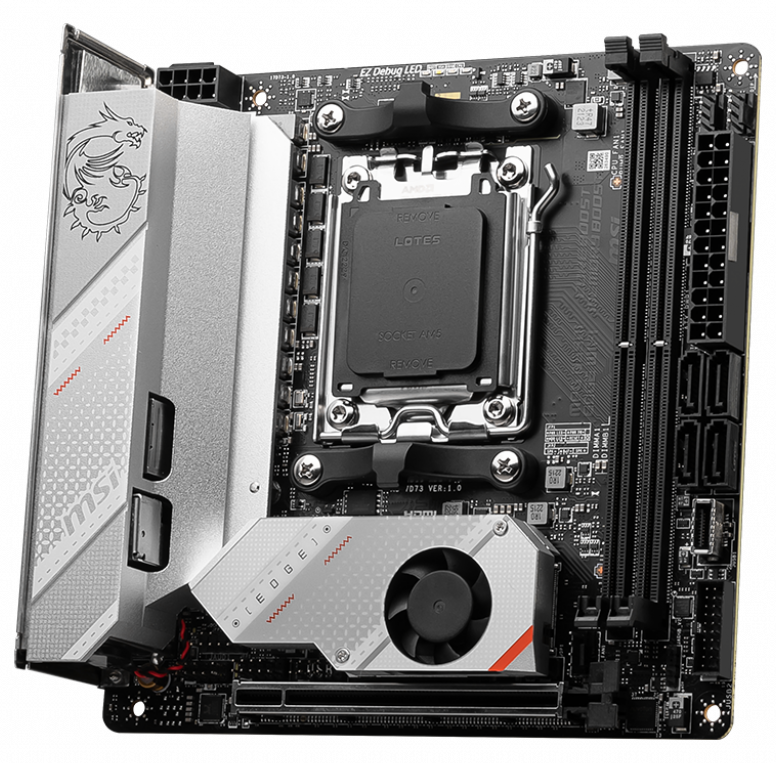

MSI MPG B650I EDGE AM5 WIFI mITX Motherboard Overview

36 months

SPECIFICATIONS:

Audio
Audio Channels 7.1
Video
Onboard Video CPU Dependent Video
Physical Characteristics
Form Factor Mini ITX
Width 170 mm
Depth 170 mm
I/O Expansions
Number of PCI Express x16 Slots 1
PCI Express Standard PCI Express 4.0
Total Number of PCI Express Slots 1
Total Number of Expansion Slots 1
Onboard Interfaces
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 5
Number of Onboard USB 2.0 Ports 2
Number of M.2 Interfaces 2
I/O Controller
RAID Levels 1
  10
  0
Controller Type Serial ATA/600
RAID Supported Yes
Processor & Chipset
Processor Supported Ryzen 7
Total Processor Supported 1
Processor Socket Socket AM5
Chipset Manufacturer AMD
Chipset Model B650

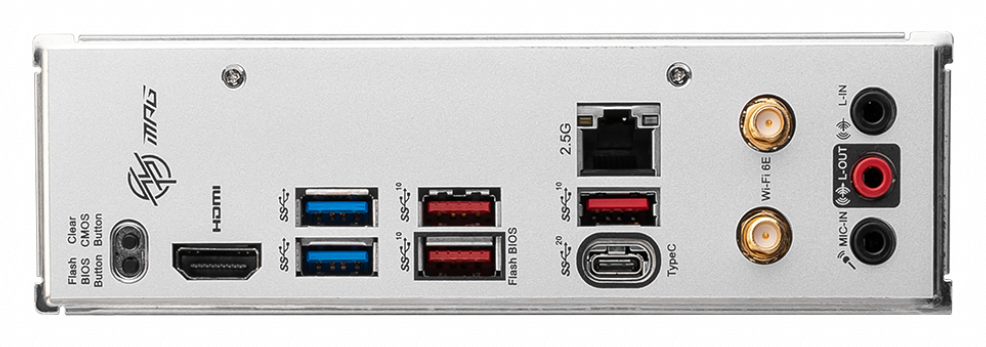

Interfaces/Ports
HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
Total Number of USB Ports 6
Number of USB 3.2 Gen 1 Type-A Ports 2
Number of USB 3.2 Gen 2 Type-A Ports 3
Network & Communication
Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard Bluetooth 5.2
2.5Gigabit Ethernet Yes
General Information
Product Type Gaming Desktop Motherboard
Manufacturer Part Number MPG B650I EDGE WIFI
Manufacturer Website Address http://au.msi.com
Manufacturer MSI
Product Model B650I EDGE WIFI
Product Name MPG B650I EDGE WIFI Gaming Desktop Motherboard
Product Line MPG
Brand Name MSI
Memory
Maximum Memory Supported 64 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 2
Memory Form Factor DIMM
  UDIMM
Memory Speed Supported 5400 MHz
  5600 MHz
  5800 MHz
  6000 MHz
  6600 MHz
  6400 MHz
  6200 MHz
  5200 MHz
  5000 MHz
  4800 MHz



SKU MBM-B650IEDGEWIFI
Brand MSI
Unit Of Measure ea
