Specifications

Product Name

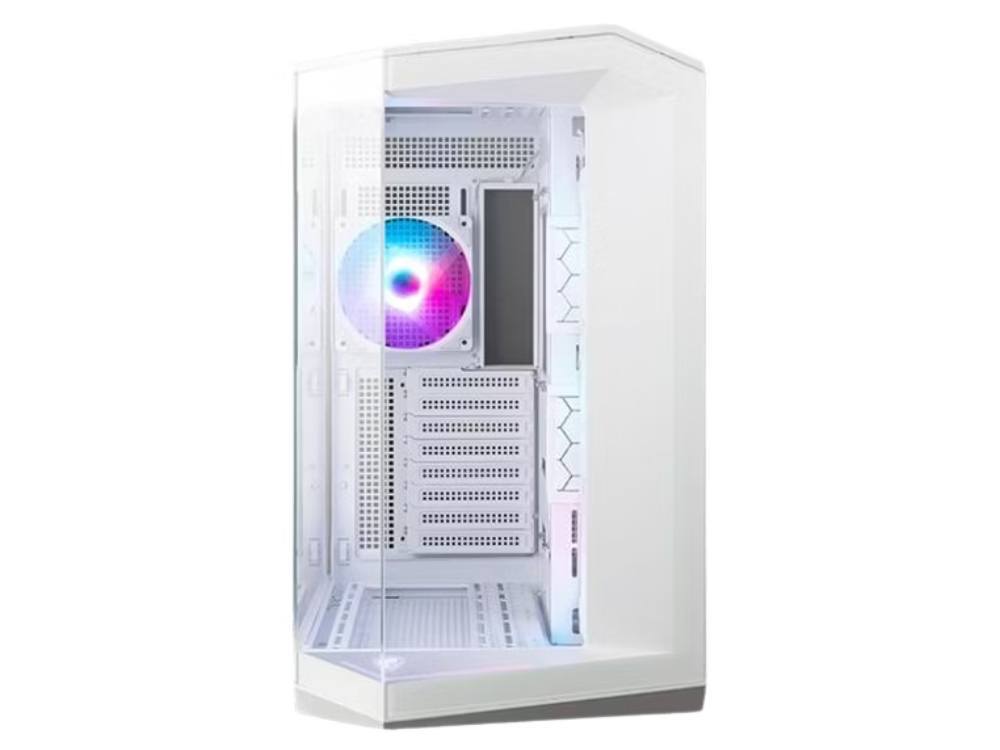

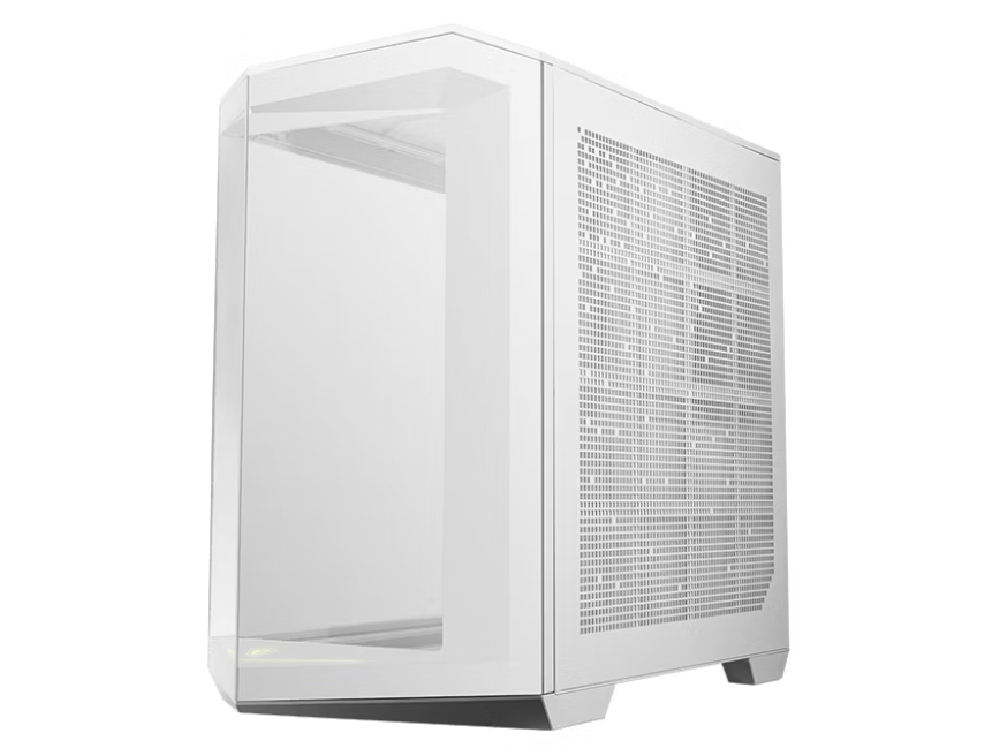

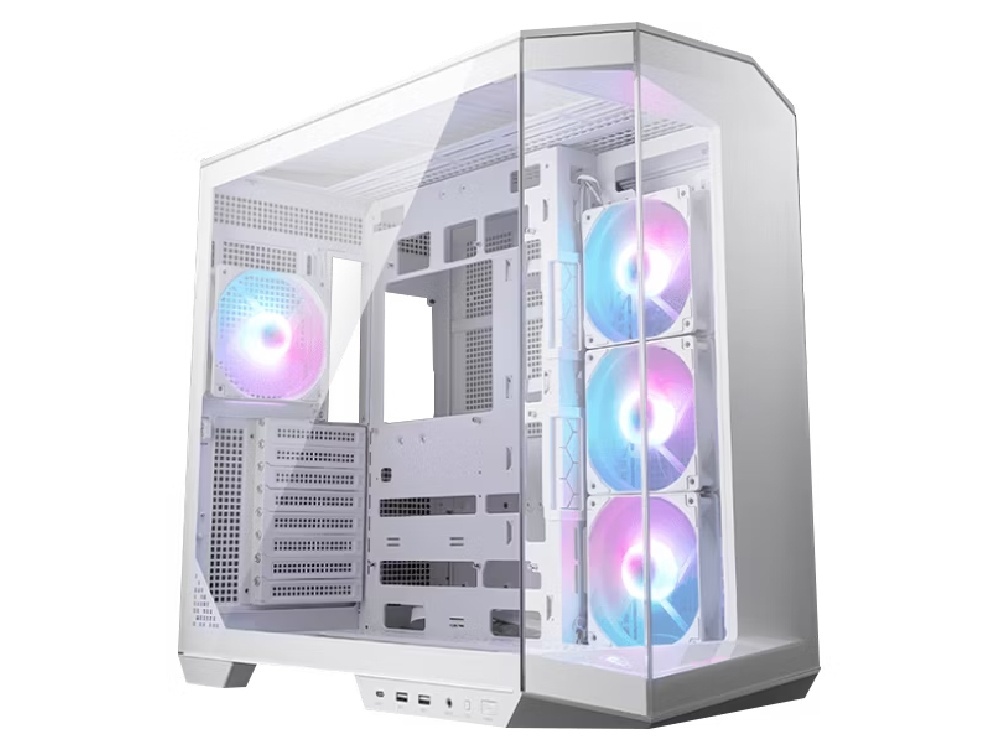

MAG PANO 100R PZ

Case Form Factor

Mid Tower

Motherboard Form Factor Support

Regular: ATX / Micro-ATX / Mini-ITX

  Back-connect: ATX / Micro-ATX
I/O Ports

1 x USB 20Gbps Type-C

  2 x USB 5Gbps Type-A
  1 x Audio-Out / Mic-in
  1 x LED Switch Button
  1 x Power Button
Drive Mount Support

3 x 2.5”

  2 x 2.5”/3.5” combo
Expansion Slots

8

Maximum GPU Length

380 mm / 14.96 inches

Maximum CPU Cooler Height

166 mm / 6.54 inches

Power Supply Support

ATX

Maximum PSU Length

200 mm / 7.87 inches

Fan Size Support

Top: 3 x 120 mm / 3 x 140 mm

  Front: NA
  Rear: 1 x 120 mm
  Side: 3 x 120 mm / 2 x 140 mm
  Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm
Pre-installed Fan Size

Side: 3 x 120 mm

  Rear: 1 x 120 mm
Pre-installed Fan Type

Side: 3 x ARGB Reverse-blade

  Rear: 1 x ARGB
Radiator Size Support

Top: 120 / 240 / 360 mm

  Front: NA
  Rear: 120 mm
  Side: 120 / 240 / 360 mm
  Bottom: 120 / 240 / 360 mm
Dimensions (DxWxH)

518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches

SKU CAM-PANO100RPZ-WH
Brand MSI
Unit Of Measure ea
