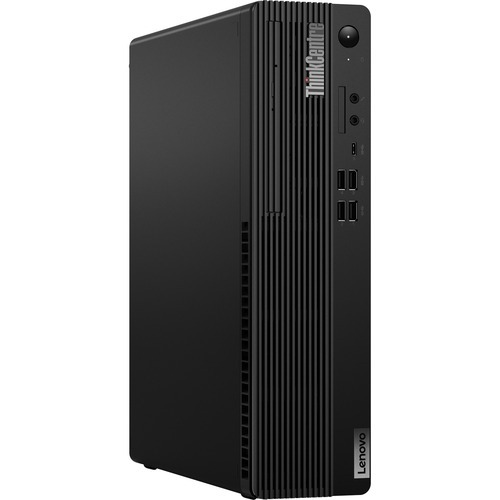

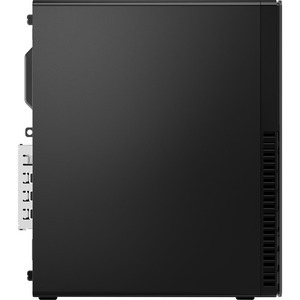

LENOVO ThinkCentre M80s Gen3 SFF Desktop PC vPro i5-12500 8GB DDR5 256GB
11YY000YAU
LENOVO ThinkCentre M80s Gen3 SFF Desktop PC vPro i5-12500 8GB DDR5 256GB
|
1. Optical drive* |
10. Flex IO* |
|
2. Power button |
11. HDMI® 2.1 TMDS |
|
3. Microphone (3.5mm) |
12. 2x DisplayPort™ 1.4 |
|
4. Card reader* |
13. 4x USB 3.2 Gen 1 |
|
5. Headphone / microphone combo jack (3.5mm) |
14. 2x PS/2 ports (keyboard / mouse)* |
|
6. USB-C® 3.2 Gen 2 |
15. Ethernet (RJ-45) |
|
7. 2x USB 3.2 Gen 1 |
16. Optional ports on expansion cards* |
|
8. 2x USB 3.2 Gen 2 |
17. Power connector |
|
9. Line-out (3.5mm) |
Multitask with confidence The ThinkCentre M80s handles it all, with up to Intel vPro ® Enterprise or Essentials with 12th Generation Intel ® Core™ i5 processors and time-saving features like Smart Power On and a front-panel USB-C port. Connect up to four displays and multiple compatible devices to configure your workspace.
Security inside and out Get end-to-end security with Lenovo’s comprehensive ThinkShield solution, featuring dTPM 2.0 and Smart USB protection. The Intel vPro ® platform combines the best of Intel innovations, so you can accelerate business productivity, better safeguard data and assets, and ensure long-term stability.
A breeze to manage IT professionals will appreciate how easy it is to deploy and manage the M80s Gen 3 from both a software and hardware POV. Lenovo offers a variety of preinstalled OS options for your customization needs, and maintenance and expansion are hassle-free with quick access to the DIMM, HDD, SDD, and ODD.
Expands with your business With ample I/O ports and added expansion slots, the ThinkCentre M80s Gen 3 grows along with your business. Add graphics cards to support industry-specific imaging equipment, connect to legacy peripherals, and configure things your way to discover countless productive possibilities. Specifications may vary depending upon region / model
36
- Intel Core i5 3 GHz processor provides you the solid performance to watch videos, play games, and on the same node its adaptability makes you more productive
- It's Windows 11 operating system offers powerful platform to efficiently run routine applications
- 256 GB SSD keeps your running programs active while your computer resumes from suspension in seconds
- With No instantly access your favourite music, movies, data or other content on the discs
- Intel UHD Graphics 770 shared graphic card for lag-free and smooth performance
- 8 GB memory is ready to run powerful programs with efficient multitasking
Technical Specs
Input Devices
| Keyboard Localization | English |
Power Description
| Maximum Power Supply Wattage | 260 W |
Technical Information
| Release Year | 2022 |
Warranty
| Additional Warranty Information |
|
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | Q670 |
Display & Graphics
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics 770 |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
Memory
| Maximum Memory Supported | 128 GB |
| Standard Memory | 8 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Total Memory Slots | 4 |
Storage
| Optical Drive Type | No |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Total Solid State Drive Capacity | 256 GB |
| SSD Form Factor | M.2 |
Network & Communication
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Ethernet Technology | Gigabit Ethernet |
| Gigabit Ethernet |
Operating System
| Operating System | Windows 11 |
| Operating System Architecture | 64-bit |
| Operating System Platform | Windows |
| Operating System Language | English |
| Downgradable Operating System | Windows 10 Pro |
Processor
| Processor Speed | 3 GHz |
| Processor Type | Core i5 |
| Processor Model | i5-12500 |
| Processor Core | Hexa-core (6 Core) |
| Processor Manufacturer | Intel |
| vPro Technology | Yes |
| Maximum Turbo Speed | 4.60 GHz |
| Processor Generation | 12th Gen |
Physical Characteristics
| Weight (Approximate) | 5.30 kg |
| Form Factor | Small Form Factor |
| Height | 339.5 mm |
| Width | 92.5 mm |
| Depth | 297.7 mm |
| Product Color | Black |
General Information
| Product Type | Desktop Computer |
| Manufacturer Part Number | 11YY000YAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 11YY000YAU |
| Product Name | ThinkCentre M80s Gen 3 11YY000YAU |
| Product Line | ThinkCentre |
| Product Series | M80s Gen 3 |
| Brand Name | Lenovo |
Interfaces/Ports
| Total Number of USB Ports | 9 |
| Number Of Ethernet Ports | 1 |
| USB Type-C Detail | 1 x USB-C 3.2 Gen 2 (support data transfer and 15W charging) |
| HDMI (Rear) | Yes |
| USB Type-C (Front) | Yes |
| Number of DisplayPort Outputs (Rear) | 2 |
| DisplayPort (Rear) | Yes |
| Number of USB 3.2 Gen 1 Ports | 6 |
| Number of USB 3.2 Gen 2 Ports | 2 |
Miscellaneous
| Package Contents |
|
| Features | Security Slot |
| Environmentally Friendly | Yes |
| Environmental Certification | ENERGY STAR 8.0 |
| EPEAT Gold | |
| ErP Lot 3 | |
| RoHS | |
| TCO 9.0 | |
| Energy Star | Yes |
| TCO Certified | Yes |
| SKU | SYLEN-M80S-I58256G3 |
| Brand | Lenovo |
| Unit Of Measure | ea |
| Type | StockedItem |
