ESSENTIALS

Product Collection

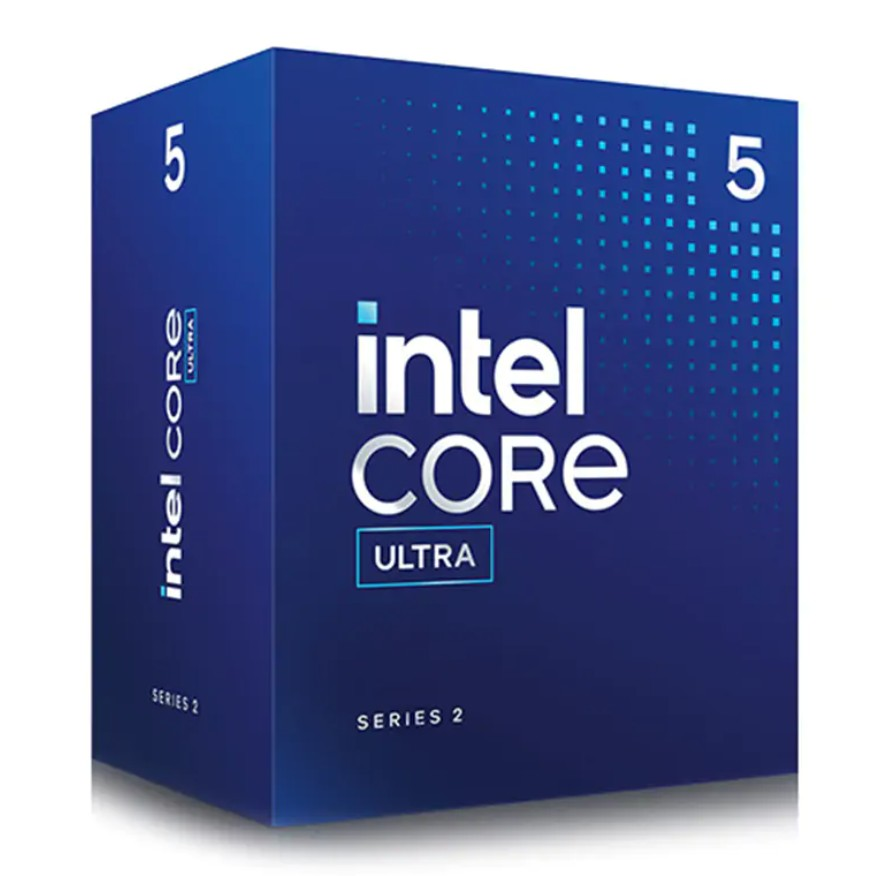

Intel® Core™ Ultra Processors (Series 2)

Code Name

Products formerly Arrow Lake

Vertical Segment

Desktop

Processor Number

225

Overall Peak TOPS (Int8)

23

CPU SPECIFICATIONS

Total Cores

10

# of Performance-cores

6

# of Efficient-cores

4

Total Threads

10

Max Turbo Frequency

4.9 GHz

Performance-core Max Turbo Frequency

4.9 GHz

Efficient-core Max Turbo Frequency

4.4 GHz

Performance-core Base Frequency

3.3 GHz

Efficient-core Base Frequency

2.7 GHz

Cache

20 MB Intel® Smart Cache

Total L2 Cache

22 MB

Processor Base Power

65 W

Maximum Turbo Power

121 W

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

AI Software Frameworks Supported by CPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

CPU Lithography

TSMC N3B

MEMORY SPECIFICATIONS

Max Memory Size (dependent on memory type)

192 GB

Memory Types

Up to DDR5 6400 MT/s

Max # of Memory Channels

2

GPU SPECIFICATIONS

GPU Name

Intel® Graphics

Graphics Base Frequency

300 MHz

Graphics Max Dynamic Frequency

1.8 GHz

GPU Peak TOPS (Int8)

4

Graphics Output

DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

Xe-cores

2

Max Resolution (HDMI)

4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)

Max Resolution (DP)

8K @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)

4K @ 60Hz

DirectX* Support

12

OpenGL* Support

4.5

OpenCL* Support

3

Intel® Quick Sync Video

Yes

# of Displays Supported

4

Device ID

0x7D67

Intel® Deep Learning Boost (Intel® DL Boost) on GPU

Yes

NPU SPECIFICATIONS

NPU Name

Intel® AI Boost

NPU Peak TOPS (Int8)

13

Sparsity Support

Yes

Windows Studio Effects Support

Yes

AI Software Frameworks Supported by NPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

EXPANSION OPTIONS

Direct Media Interface (DMI) Revision

4

Max # of DMI Lanes

8

Intel® Thunderbolt™ 4

Yes

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations

Up to 1x16+2x4, 2x8+2x4, 1x8+4x4

Max # of PCI Express Lanes

24

PACKAGE SPECIFICATIONS

Sockets Supported

FCLGA1851

Thermal Solution Specification

PCG 2022C

Max Operating Temperature

105 °C

ADVANCED TECHNOLOGIES

Intel® Volume Management Device (VMD)

Yes

Intel® Gaussian & Neural Accelerator

3.5

Intel® Thread Director

Yes

Intel® Speed Shift Technology

Yes

Intel® Turbo Boost Technology

2.0

Intel® 64

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

SECURITY & RELIABILITY

Intel® Standard Manageability (ISM)

Yes

Intel® Control-Flow Enforcement Technology

Yes

Intel® AES New Instructions

Yes

Secure Key

Yes

Intel® Trusted Execution Technology

Yes

Execute Disable Bit

Yes

Intel® OS Guard

Yes

Intel® Boot Guard

Yes

Mode-based Execute Control (MBEC)

Yes

Intel® Virtualization Technology   (VT-x)

Yes

Intel® Virtualization Technology for Directed I/O (VT-d)

Yes

Intel® VT-x with Extended Page Tables (EPT)

Yes
