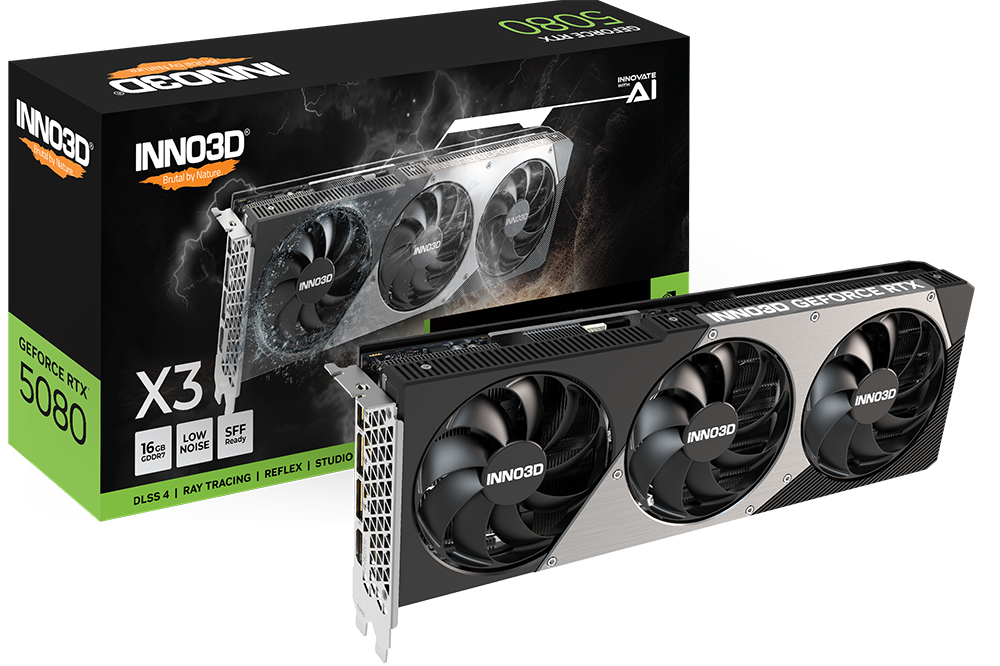

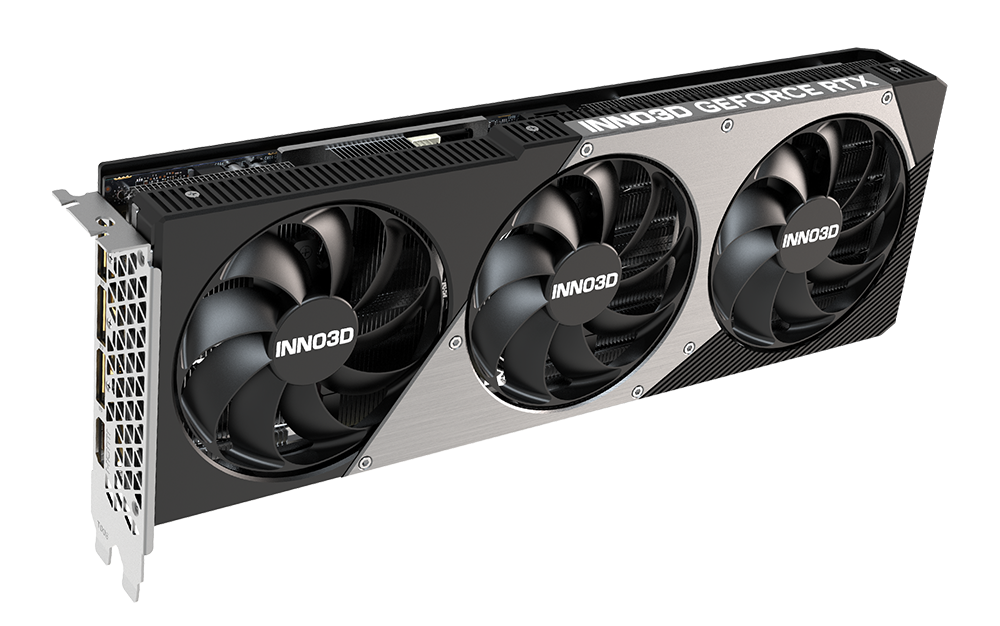

INNO3D GeForce RTX 5080 X3 16GB GDDR7 Graphics Card

36 months




Specifications:

GPU ENGINE



CUDA Cores

10752

Boost Clock (MHz)

2617MHz

Base Clock (MHz)

2295MHz

THERMAL AND POWER



Minimum System Power Requirement (W)

850W

Supplementary Power Connectors

3x PCIe 8-pin cables (adapter in box) OR 1x 450 W or greater PCIe Gen 5 cable

MEMORY



Memory Clock

30Gbps

Standard Memory Config

16GB

Memory Interface

GDDR7

Memory Interface Width

256-bit

Memory Bandwidth (GB/sec)

960 GB/sec

FEATURE SUPPORT



Real-Time Ray Tracing

Yes

Ray Tracing Cores

4th Generation, 171 TFLOPS

Tensor Cores

5th Generation, 1801 AI TOPS

NVIDIA Architecture

Blackwell

Microsoft DirectX

12 Ultimate

NVIDIA DLSS

4

NVIDIA Ansel

Yes

NVIDIA FreeStyle

Yes

Bus Support

PCI Express Gen 5

NVIDIA ShadowPlay

Yes

OS Certification

Windows 11 / 10, Linux, FreeBSDx86

NVIDIA Highlights

Yes

NVIDIA G-SYNC™-Ready

Yes

Game Ready Drivers

Yes

NVIDIA Studio Drivers

Yes

NVIDIA GPU Boost™

Yes

Vulkan API

1.4

OpenGL

4.6

NVIDIA Encoder

2x Ninth Generation

NVIDIA Decoder

2x Sixth Generation

GRAPHICS CARD DIMENSIONS



Length

300mm

Height

116mm

Width

41mm

DISPLAY SUPPORT



Multi Monitor

Up to 4

Maxmium Digital Resolution

4K at 480Hz or 8K at 165Hz with DSC

HDCP

2.3

Standard Display Connectors

3x DisplayPort 2.1b, 1x HDMI 2.1b



SKU VCI-RTX5080-X3N
Brand INNO3D
Unit Of Measure ea
