Gigabyte UD850GM PG5 2.0 850W ATX Power Supply

GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply

KEY FEATURE

  • Ultra Durable
    • Main Japanese capacitors
    • Enhanced thermal solution
    • 120mm smart hydraulic bearing (HYB) fan
    • OVP/OPP/SCP/UVP/OCP/OTP protection
  • Supports PCIe Gen 5.0 graphics card
  • High-quality native 16-pin cable supports 600W output
  • 80 PLUS Gold certified
  • Fully modular design
  • Compact Design
GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply
GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply
GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply

Support PCIe Gen 5.0 graphics card

The UD850GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.


GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply
GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply

Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.

HIGH QUALITY JAPANESE CAPACITORS

The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.

GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply
GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply

ENHANCED THERMAL SOLUTION

Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

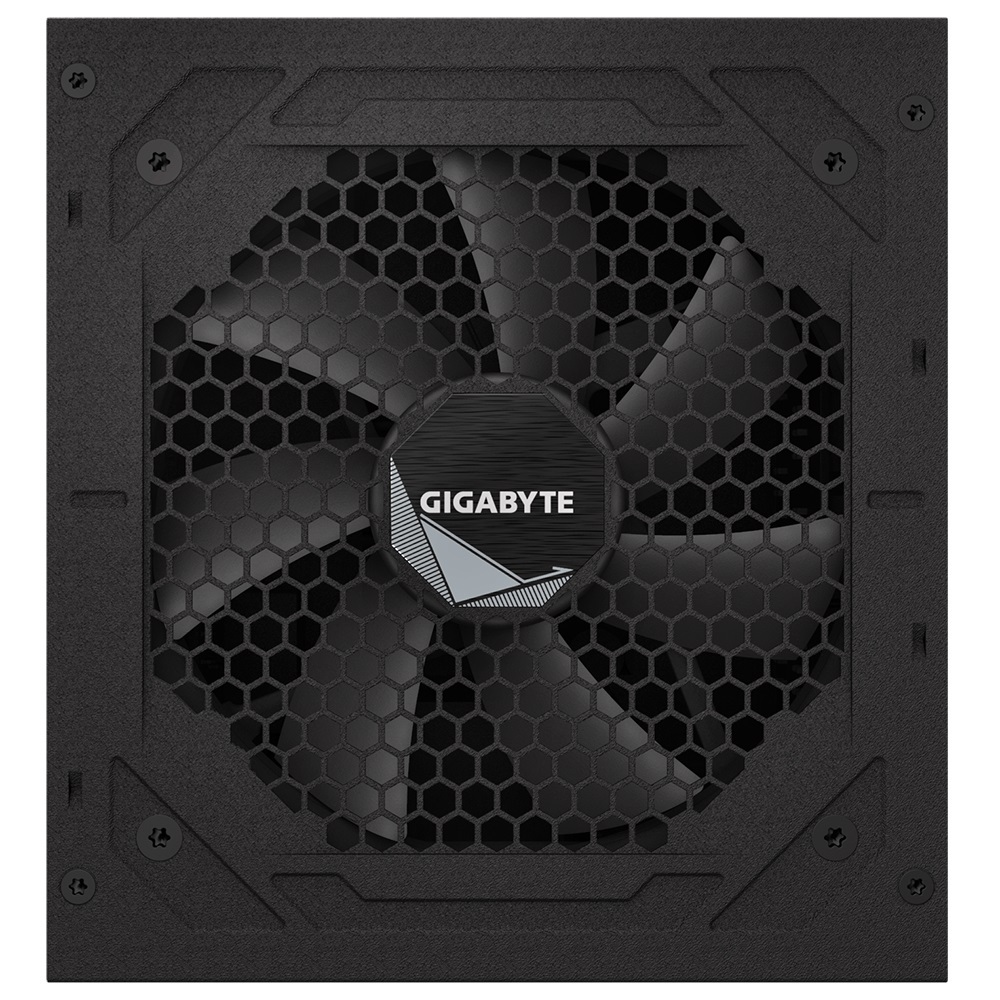

120MM SMART HYDRAULIC BEARING (HYB) FAN

The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.

GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply
GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply

PROTECTION

In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

FULLY MODULAR DESIGN

All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply
GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply

80 PLUS GOLD CERTIFIED

80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.

GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply
GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply

PLENTIFUL POWER SUPPLY

The +12VHPWR and the +12V can provide a total of 850W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.

COMPACT DESIGN

With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.

GIGABYTE GP-UD850GM PG5 Rev2.0 Power Supply
Note:

* All the images in this page are for illustration only.

60 months

  • 850W Capactiy with Single +12V Rail
  • Supports PCIe Gen 5.0 graphics cards (12+4 Pin) & Intel ATX 3.0 Certified
  • 80 Plus Gold Certified
  • ATX Form Factor
  • Fully Modular Design
  • Japanese Capacitors
  • 120mm Hydraulic Bearing Fan
General
Brand GIGABYTE
Model GP-UD850GM PG5 REV2.0
Details
Type ATX12V
Maximum Power  850W
Fans  120mm Hydraulic Bearing (HYB)Fan
Main Connector  20+4Pin
+12V Rails  Single
PCI-Express Connector  4 x 6+2-Pin
SATA Power Connector  8
Max PSU Length 150 mm
Efficiency  90% at typical load
Energy-Efficient 80 PLUS GOLD Certified
Protection OVP/OPP/SCP/UVP/OCP/OTP
Input Voltage 100 - 240 V
Input Frequency Range 50/60 Hz
Input Current 12A-6A
MTBF  >100,000 Hours
Approvals BSMI/CE/CCC/FCC/TUV/RCM/CB/EAC/KCC/UL/PSE
Connectors ATX/MB 20+4 Pin x 1
EPS/ATX 12V 4+4pin x 2
PCI-e 6+2 pin x 4
PCI-e 16 pin x 1
SATA 5 pin x 8
Peripheral 4-pin x 3
Floppy 4-pin x 1
Cable Spec Black Flat Cables
SKU PSG-UD850GMPG5-2.0
Brand Gigabyte
Unit Of Measure ea
