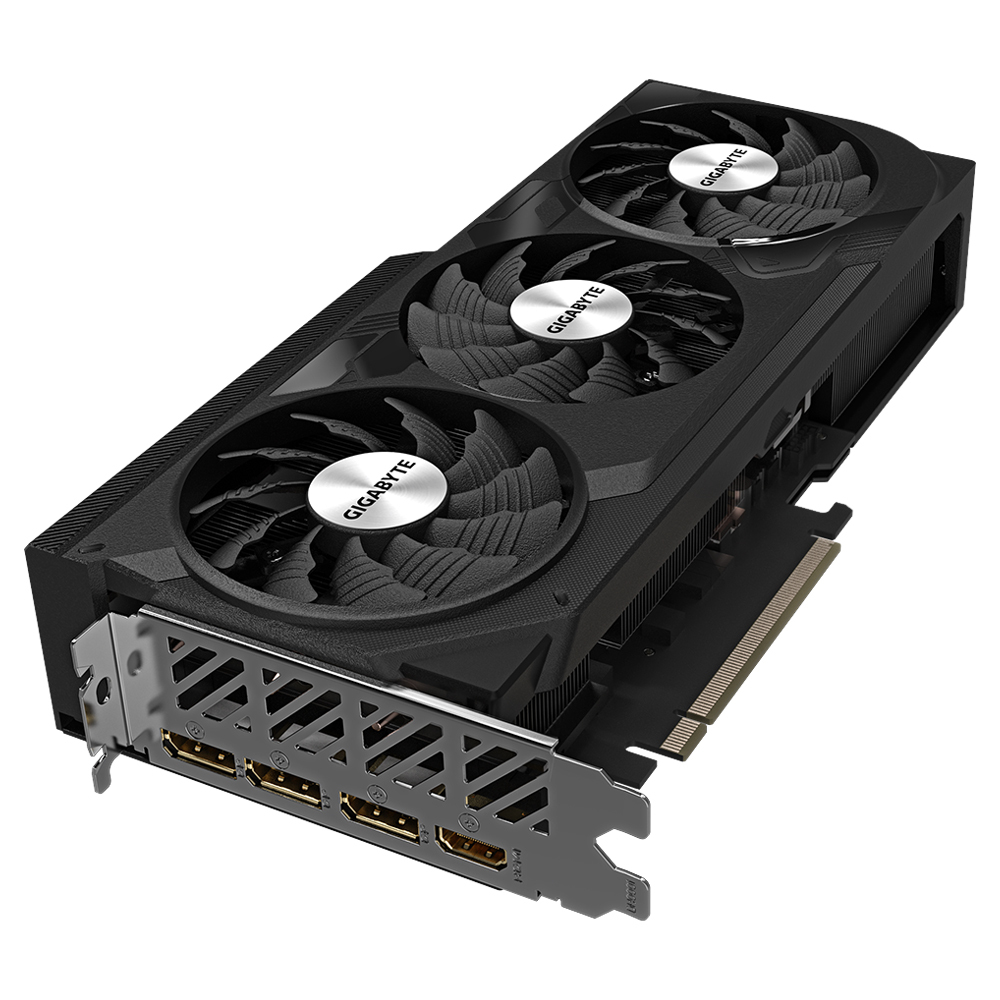

Gigabyte GeForce RTX 4070 Windforce OC 12GB Graphics Card



KEY FEATURE

GV-N4070WF3OC-12GD Video Card
  • Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
  • 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Powered by GeForce RTX™ 4070
  • Integrated with 12GB GDDR6X 192bit memory interface
  • WWINDFORCE Cooling System
  • Protection metal back plate

CORE CLOCK

TBD

GV-N4070WF3OC-12GD Video Card GV-N4070WF3OC-12GD Video Card
GV-N4070WF3OC-12GD Video Card

The Ultimate Platform for Gamers and Creators

Powered by GeForce RTX 40 Series and DLSS 3

GV-N4070WF3OC-12GD Video Card

New Streaming Multiprocessors

Up to 2x performance and power efficiency

Fourth-Gen Tensor Cores

Up to 4x performance with DLSS 3 vs. brute-force rendering

Third-Gen RT Cores

Up to 2x ray tracing performance

GV-N4070WF3OC-12GD Video Card

Cutting-Edge GPUs

NVIDIA Ada Lovelace architecture

GV-N4070WF3OC-12GD Video Card

Realistic and Immersive Graphics

Dedicated Ray Tracing Cores

GV-N4070WF3OC-12GD Video Card

AI-Accelerated Performance

NVIDIA DLSS 3

GV-N4070WF3OC-12GD Video Card

Game-Winning Responsiveness

NVIDIA Reflex low-latency platform

GV-N4070WF3OC-12GD Video Card

Built for Live Streaming

NVIDIA Encoder

GV-N4070WF3OC-12GD Video Card

AI-Enhanced Voice and Video

NVIDIA Broadcast app

GV-N4070WF3OC-12GD Video Card

Fast-Track Your Creativity

NVIDIA Studio

GV-N4070WF3OC-12GD Video Card

Performance and Reliability

Game Ready and Studio Drivers

Ray Tracing

Hyperrealistic. Hyperfast.

The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.

GV-N4070WF3OC-12GD Video Card

NVIDIA DLSS 3

The performance multiplier, powered by AI.

DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.

GV-N4070WF3OC-12GD Video Card

NVIDIA REFLEX

Victory measured in milliseconds.

NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.

GV-N4070WF3OC-12GD Video Card

NVIDIA Studio

Your ideas, accelerated by NVIDIA Studio.

Take your creative projects to the next level with NVIDIA Studio. Powered by new dedicated hardware, RTX 40 Series unlocks unmatched performance in 3D rendering, video editing, and graphic design. Experience feature-rich RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

GV-N4070WF3OC-12GD Video Card
GV-N4070WF3OC-12GD Video Card

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

GV-N4070WF3OC-12GD Video Card

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

GV-N4070WF3OC-12GD Video Card

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

GV-N4070WF3OC-12GD Video Card

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GV-N4070WF3OC-12GD Video Card

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

GV-N4070WF3OC-12GD Video Card

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

GV-N4070WF3OC-12GD Video Card

HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

EXCELLENT IN ESSENTIAL

GV-N4070WF3OC-12GD Video Card

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.



BUILT STRONG

GV-N4070WF3OC-12GD Video Card

ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

GV-N4070WF3OC-12GD Video Card

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

GV-N4070WF3OC-12GD Video Card
GV-N4070WF3OC-12GD Video Card
GV-N4070WF3OC-12GD Video Card GV-N4070WF3OC-12GD Video Card GV-N4070WF3OC-12GD Video Card
Notes:

© 2023 NVIDIA Corporation. NVIDIA, the NVIDIA logo, GeForce, GeForce Experience, GeForce RTX, G-SYNC, and ShadowPlay are registered trademarks and/or trademarks of NVIDIA Corporation in the United States and other countries. All other trademarks and copyrights are the property of their respective owners.

* All the images in this page are for illustration only.

Question about the product info? Feedback

36

KEY FEATURE

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing

4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering

3rd Generation RT Cores: Up to 2X ray tracing performance

Powered by GeForce RTX™ 4070

Integrated with 12GB GDDR6X 192bit memory interface

WINDFORCE Cooling System

Protection metal back plate

Specifications


Model Number GV-N4070WF3OC-12GD
Graphics Processing GeForce RTX™ 4070
Core Clock 2490 MHz (Reference Card: 2475 MHz)
CUDA® Cores 5888
Memory Clock 21 Gbps
Memory Size 12 GB
Memory Type GDDR6X
Memory Bus 192 bit
Card Bus PCI-E 4.0
Digital Max Resolution 7680 x 4320
Multi-View 4
Card Size (L x W x H) 261 x 126 x 50 mm
PCB Form ATX
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 650 W
Power Connectors 8 pin x 1
Output DisplayPort 1.4 x 3
HDMI 2.1a x 1
Accessories Quick guide
SKU VCG-N4070WF3OC12GD
Brand Gigabyte
Unit Of Measure ea
