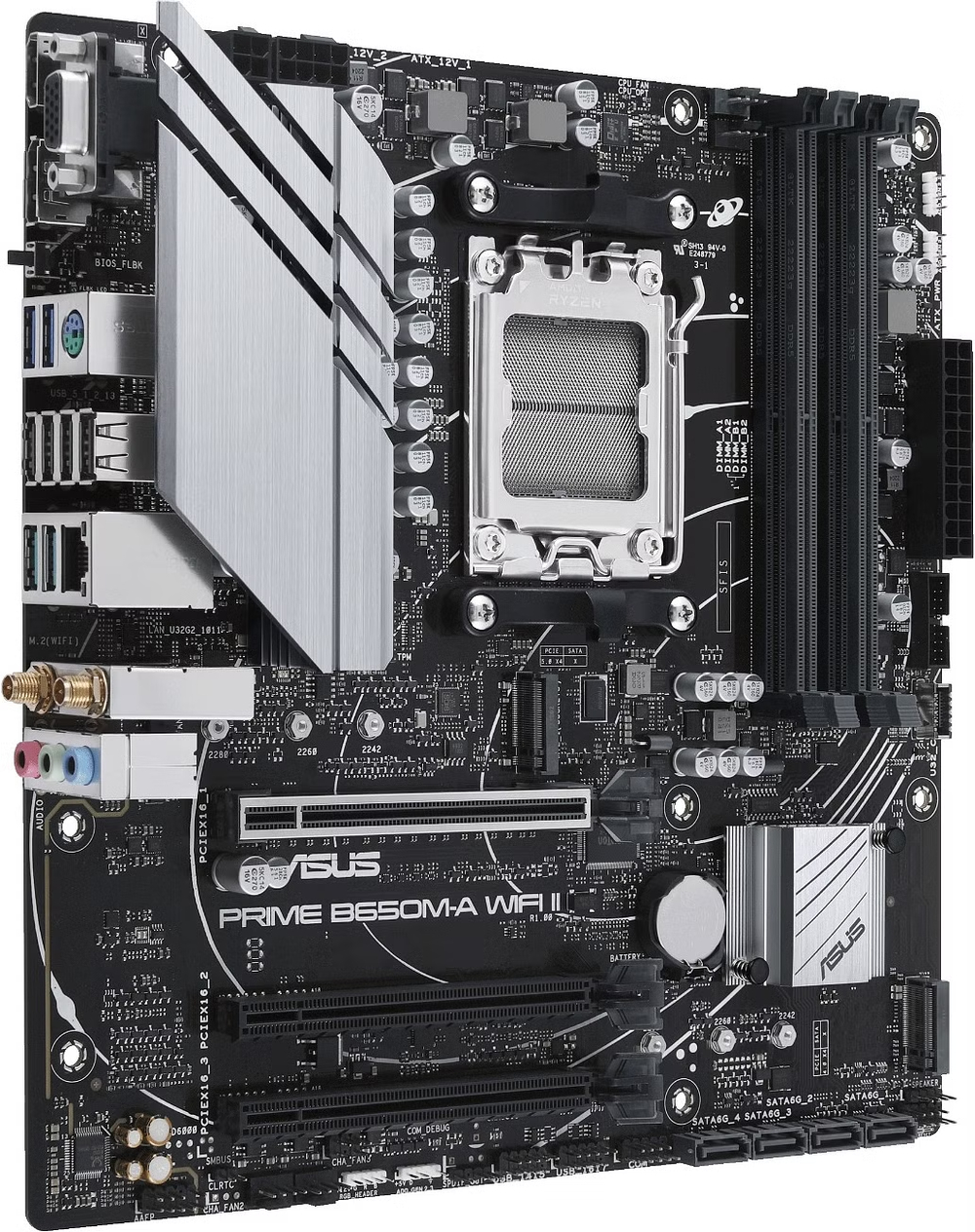

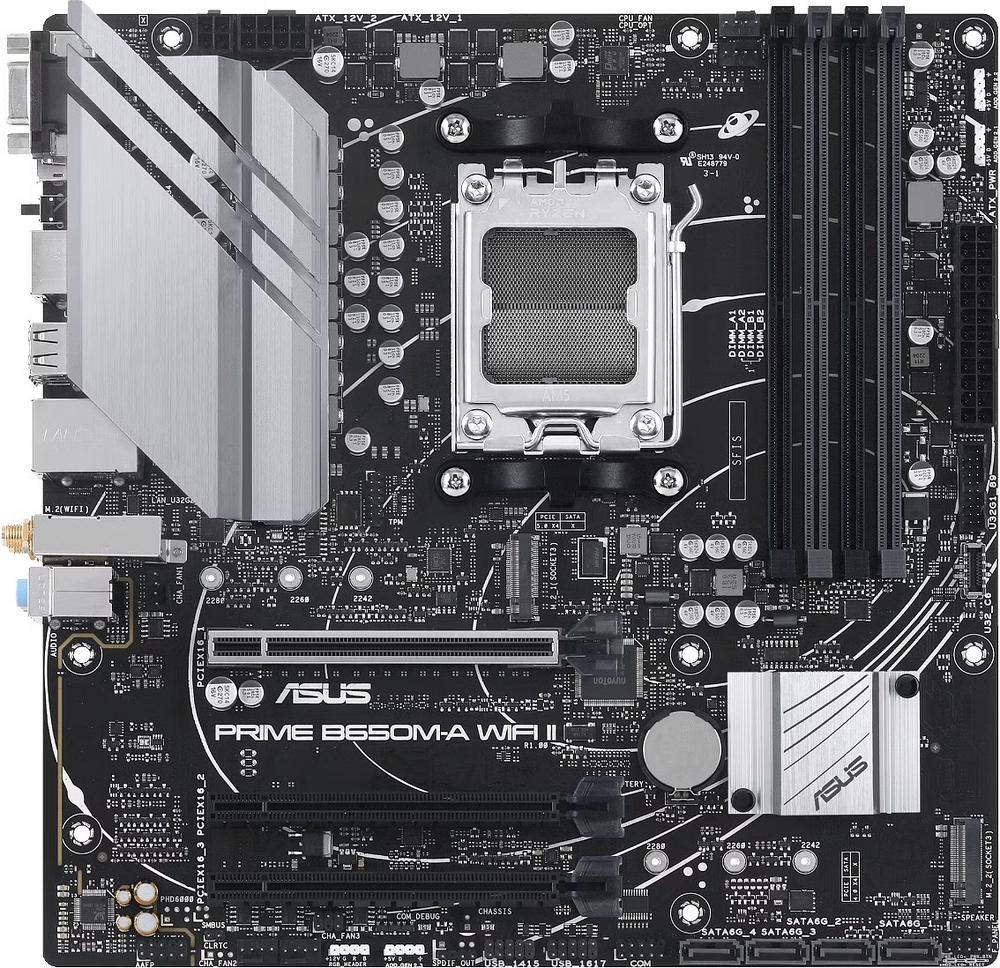

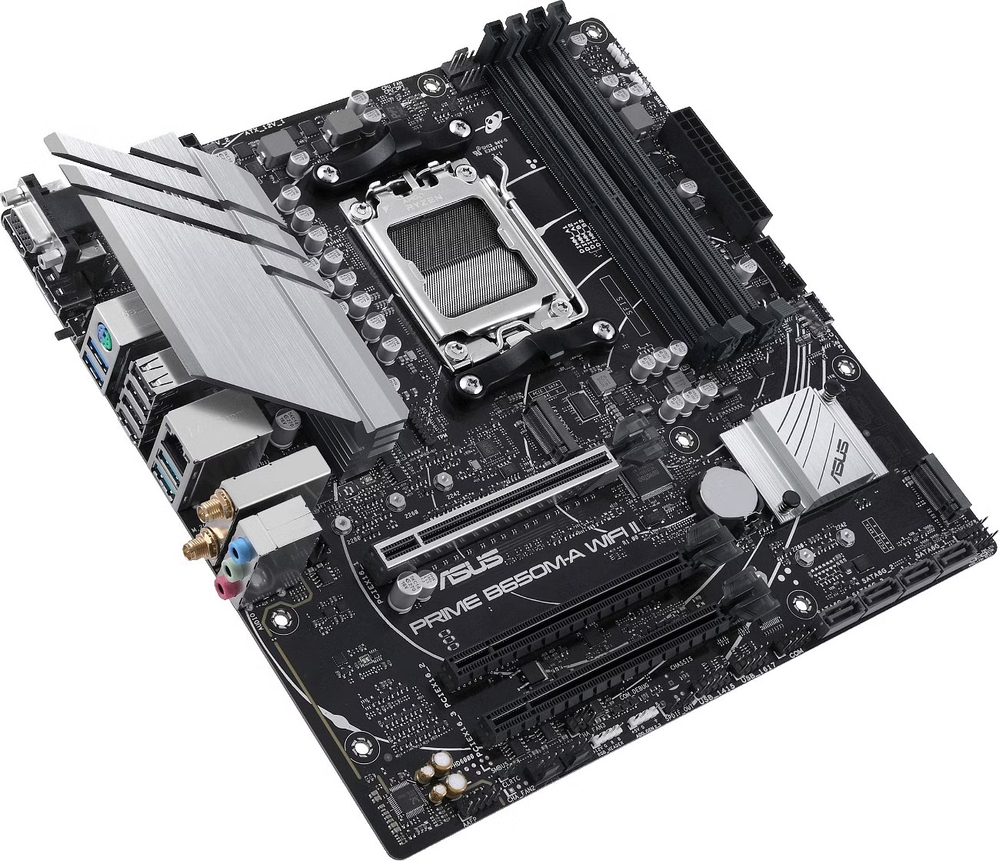

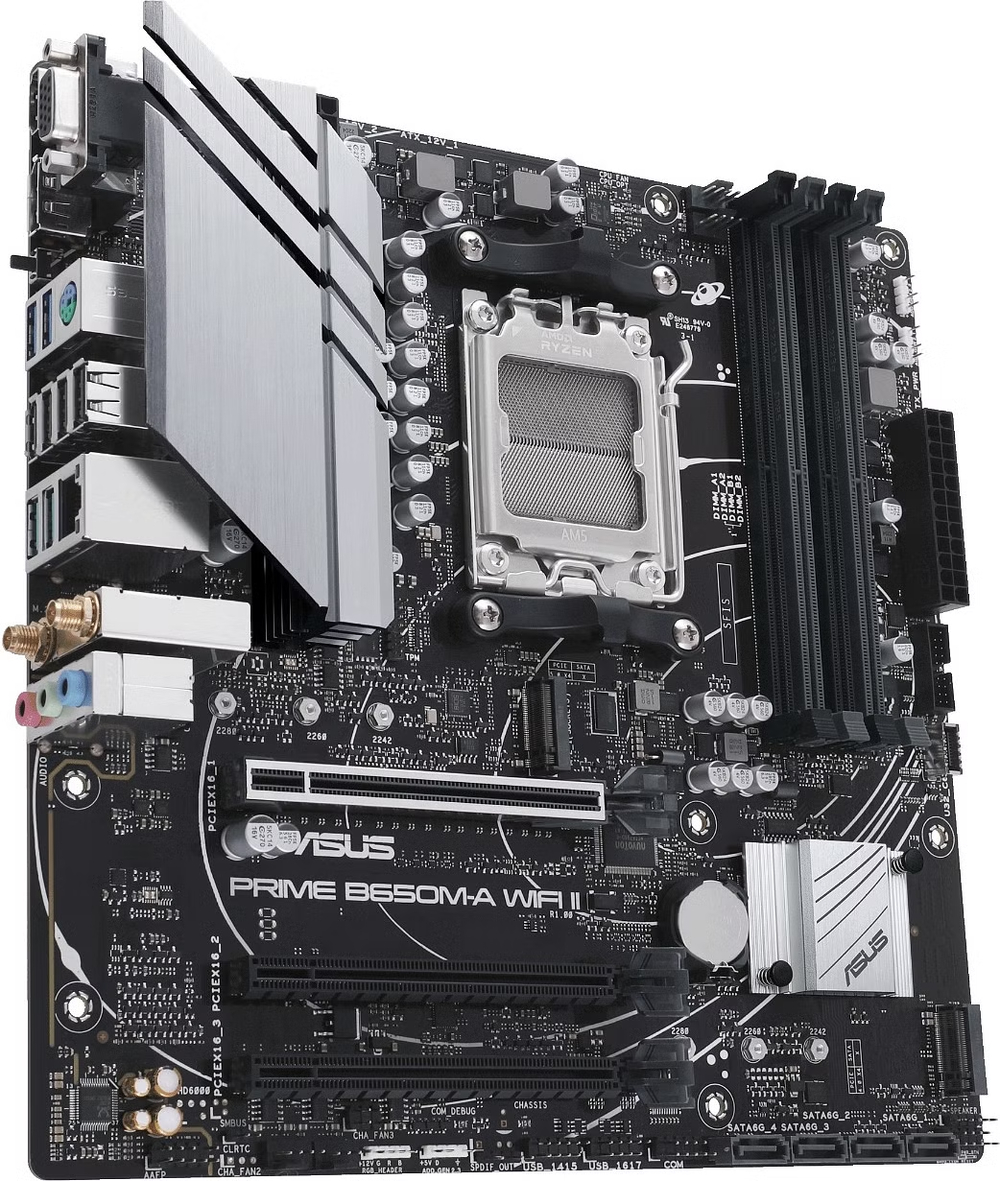

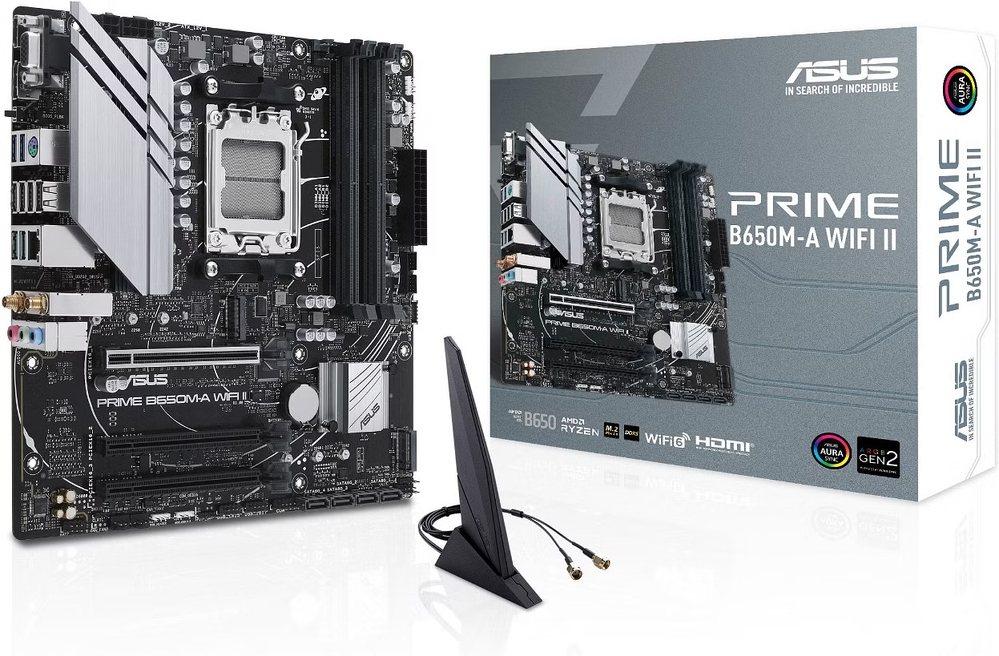

ASUS B650M PRIME B650M-A WIFI II AM5 Micro-ATX Motherboard

ASUS B650M PRIME B650M-A WIFI II AM5 Micro-ATX Motherboard

36 months

  • AMD AM5 Socket: Ready for AMD Ryzen 7000 Series Desktop Processors
  • Ultrafast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Technical Specs

Audio

Audio Channels 7.1

Video

Onboard Video CPU Dependent Video

Miscellaneous

Environmentally Friendly Yes
Environmental Certification RoHS
Brand Compatibility AMD

Physical Characteristics

Form Factor Micro ATX
Width 243.8 mm
Depth 243.8 mm

I/O Expansions

Number of Total Expansion Slots 3
Number of PCI Express x16 Slots 3
PCI Express Standard PCI Express 4.0
Total Number of PCI Express Slots 3

I/O Controller

RAID Levels 10
1
0
Controller Type Serial ATA/600
RAID Supported Yes

Onboard Interfaces

Number of SATA Interfaces 4
Total Number of Onboard USB Ports 7
Number of Onboard USB 2.0 Ports 4
Onboard S/PDIF Header Yes
Number of M.2 Interfaces 2

Memory

Maximum Memory Supported 128 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor DIMM
UDIMM
Memory Speed Supported 6400 MHz
6200 MHz
6000 MHz
5800 MHz
5600 MHz
5400 MHz
5000 MHz
4800 MHz
5200 MHz

Processor & Chipset

Processor Supported Ryzen 7
Total Processor Supported 1
Processor Socket Socket AM5
Chipset Manufacturer AMD
Chipset Model B650

Network & Communication

Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard Bluetooth 5.2
2.5Gigabit Ethernet Yes

General Information

Product Type Gaming Desktop Motherboard
Manufacturer Part Number PRIMEB650MAWIFIII
Manufacturer Website Address http://www.asus.com/au
Manufacturer ASUS Computer International
Product Model PRIME B650M-A WIFI II
Product Name PRIME B650M-A WIFI II Gaming Desktop Motherboard
Product Line Prime
Brand Name Asus

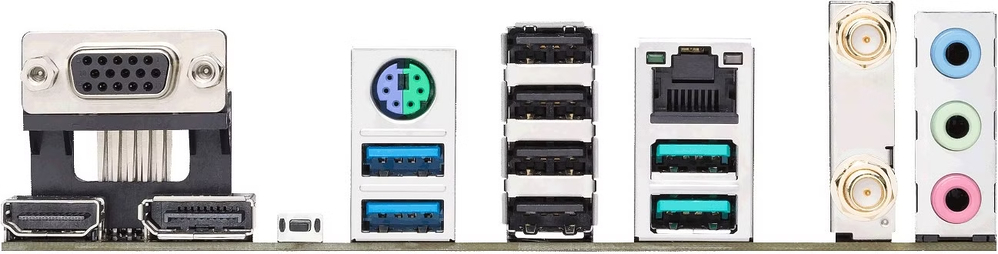

Interfaces/Ports

HDMI Yes
HDMI Version 2.1
VGA Yes
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 8
Number of USB 3.2 Gen 1 Type-A Ports 2
Number of USB 3.2 Gen 2 Type-A Ports 2
SKU MBB650M-A-WIFI2
Brand ASUS
Unit Of Measure ea
