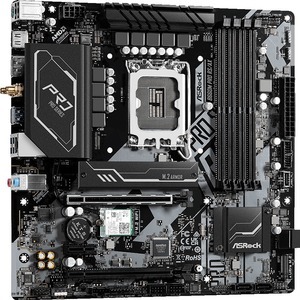

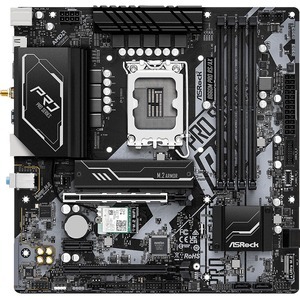

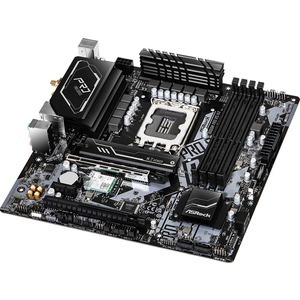

ASRock B660M Pro RS/ax Intel LGA-1700 Motherboard

ASRock B660M Pro RS/ax Intel LGA-1700 Motherboard

36 months

  • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
  • 8 Phase Power Design
  • Supports DDR4 5333MHz (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3
    1 Hyper M.2 (PCIe Gen4 x4)
    1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 7 USB 3.2 Gen1 (4 Rear, 2 Front, 1 Front Type-C)
    6 USB 2.0 (2 Rear, 4 Front)
  • Intel® Gigabit LAN
  • 802.11ax (WiFi 6E) + Bluetooth 5.3

Technical Specs

Audio

Audio Channels 7.1

Video

Onboard Video CPU Dependent Video

I/O Expansions

Number of PCI Express x1 Slots 2
Number of Total Expansion Slots 3
Number of PCI Express x16 Slots 1
Total Number of PCI Express Slots 3

Network & Communication

Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ax

Physical Characteristics

Form Factor Micro ATX
Width 243.8 mm
Depth 243.8 mm
Product Color Sapphire Black

Onboard Interfaces

Number of SATA Interfaces 4
Total Number of Onboard USB Ports 6
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 2
Number of Onboard USB 3.2 Ports 2

I/O Controller

RAID Levels 10
5
1
0
Controller Type Serial ATA/600
RAID Supported Yes

General Information

Product Type Desktop Motherboard
Manufacturer Part Number B660M PRO RS / AX
Manufacturer Website Address http://www.asrock.com
Manufacturer ASRock, Inc
Product Model B660M Pro RS/ax
Product Name B660M Pro RS/ax Desktop Motherboard
Brand Name ASRock

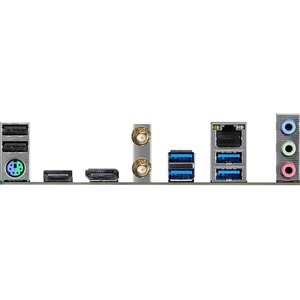

Interfaces/Ports

HDMI Yes
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 6
Number of USB 2.0 Ports 2
Number of USB 3.2 Gen 1 Ports 4

Miscellaneous

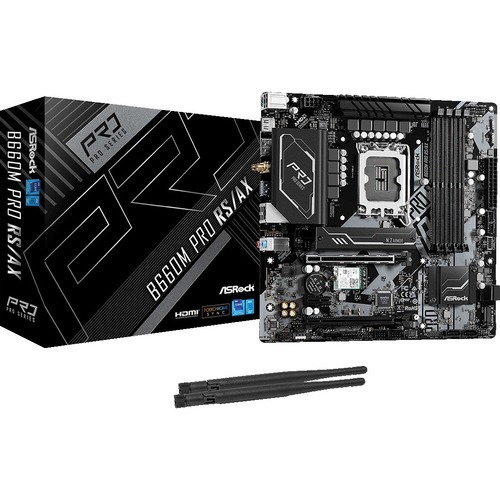

Package Contents
  • B660M Pro RS/ax Desktop Motherboard
  • Quick Installation Guide
  • I/O Shield
  • 2 x SATA Data Cables
  • 3 x Screws for M.2 Sockets
  • 1 x Standoff for M.2 Socket
  • Support CD
  • Drivers
  • Utilities
  • AntiVirus Software (Trial Version)
Environmentally Friendly Yes
Environmental Certification China RoHS
ErP/EuP Ready
WEEE
RoHS
Brand Compatibility Intel

Memory

Maximum Memory Supported 128 GB
Memory Technology DDR4 SDRAM
Number of Memory Slots 4
Memory Form Factor UDIMM
DIMM
Memory Speed Supported 3200 MHz
4800 MHz
Intel Optane Memory Ready Yes

Processor & Chipset

Processor Supported Pentium Gold
Core i7
Core i5
Core i3
Celeron
Core i9
Total Processor Supported 1
Processor Socket Socket LGA-1700
Chipset Manufacturer Intel
Chipset Model B660
Processor Generation Supported 12th Gen
SKU 5618275
Brand ASROCK
Unit Of Measure ea
