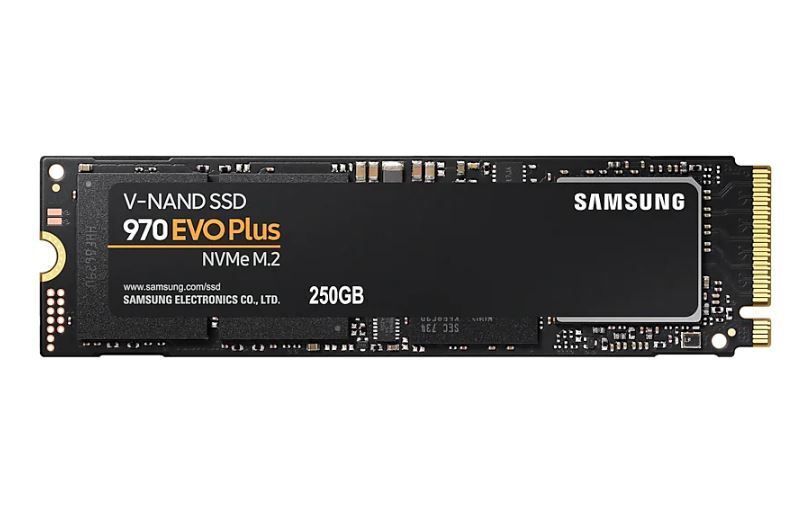

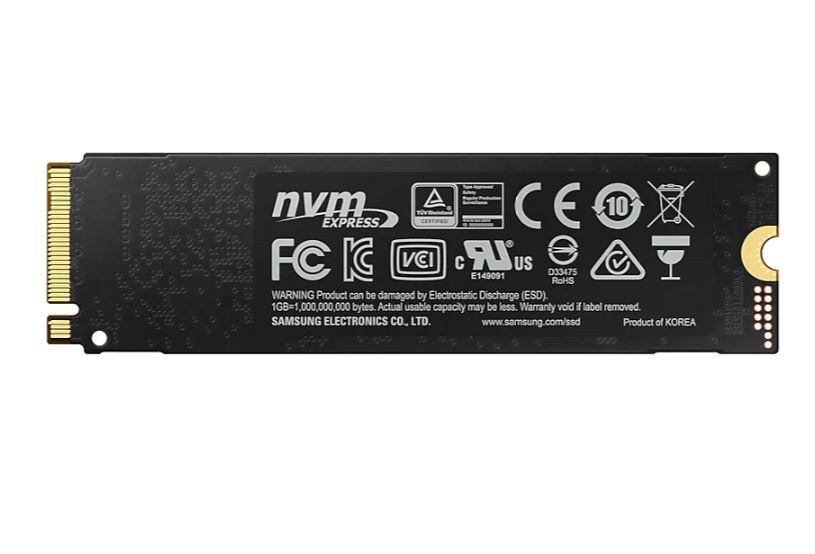

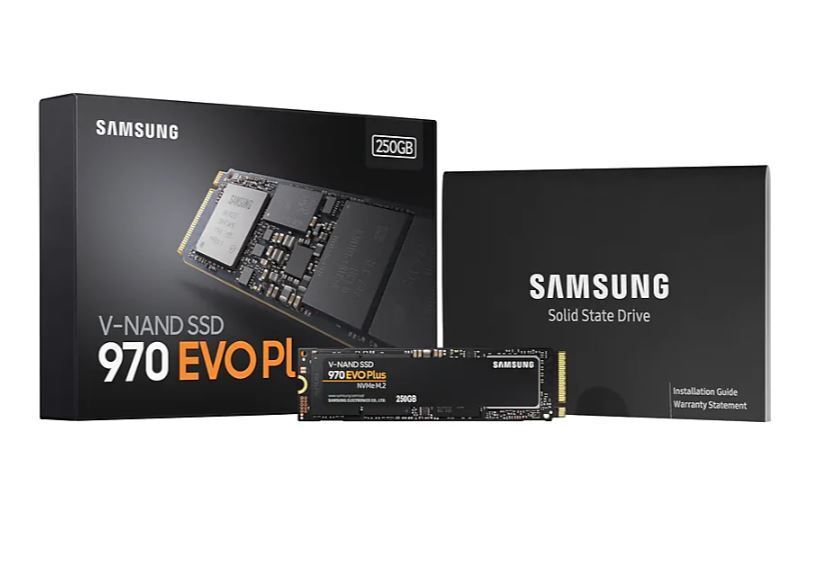

Samsung 970 EVO Plus 250GB PCIe 3.0 NVMe SSD Samsung 970 EVO Plus 250GB PCIe 3.0 NVMe SSD Samsung 970 EVO Plus 250GB PCIe 3.0 NVMe SSD Samsung 970 EVO Plus 250GB PCIe 3.0 NVMe SSD Samsung 970 EVO Plus 250GB PCIe 3.0 NVMe SSD Samsung 970 EVO Plus 250GB PCIe 3.0 NVMe SSD Samsung 970 EVO Plus 250GB PCIe 3.0 NVMe SSD Samsung 970 EVO Plus 250GB PCIe 3.0 NVMe SSD Samsung 970 EVO Plus 250GB PCIe 3.0 NVMe SSD Samsung 970 EVO Plus 250GB PCIe 3.0 NVMe SSD Samsung 970 EVO Plus 250GB PCIe 3.0 NVMe SSD

60

General Feature


Application

  • Client PCs


Rated Capacity

  • 250GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)


Form Factor

  • M.2 (2280)


Interface

  • PCIe Gen 3.0 x 4, NVMe 1.3


Dimension (WxHxD)

  • 80.15 x 22.15 x 2.38 (mm)


Weight

  • Max 8.0 g Weight


Storage Memory

  • Samsung V-NAND 3-bit MLC


Controller

  • Samsung Phoenix Controller


Cache Memory

  • Samsung 512MB Low Power DDR4 SDRAM



Special Feature


TRIM Support

  • Supported


S.M.A.R.T Support

  • Supported


GC (Garbage Collection)

  • Auto Garbage Collection Algorithm


Encryption Support

  • AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)


WWN Support

  • Not supported


Device Sleep Mode Support

  • Yes



Performance


Sequential Read

  • Up to 3,500 MB/s * Performance may vary based on system hardware & configuration


Sequential Write

  • Up to 2,300 MB/s * Performance may vary based on system hardware & configuration


Random Read (4KB, QD32)

  • Up to 250,000 IOPS * Performance may vary based on system hardware & configuration


Random Write (4KB, QD32)

  • Up to 550,000 IOPS * Performance may vary based on system hardware & configuration


Random Read (4KB, QD1)

  • Up to 17,000 IOPS * Performance may vary based on system hardware & configuration


Random Write (4KB, QD1)

  • Up to 60,000 IOPS * Performance may vary based on system hardware & configuration



Environment


Average Power Consumption (system level)

  • * Average: 5 W * Maximum: 8 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration


Power consumption (Idle)

  • Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration


Allowable Voltage

  • 3.3 V ± 5 % Allowable voltage


Reliability (MTBF)

  • 1.5 Million Hours Reliability (MTBF)


Operating Temperature

  • 0 - 70 ℃ Operating Temperature


Shock

  • 1,500 G & 0.5 ms (Half sine)



Accessories


Installation Kit

  • Not Available



Software


Management SW

  • Magician Software for SSD management



Warranty

  • 5-Year Limited Warrantyor 150 TBW Limited Warranty

SKU HBS-970EP-M2-250GB
Model # MZ-V7S250BW
Brand Samsung
Unit Of Measure ea
